Industrial PoE Switch (IPS Series)
IPS Series
Industrial PoE Switch
The IPS series are provide perfect solution for delivering power over Ethernet for IP cameras. With optional PoE, it also provides you with flexibility in the installation of Wireless network or IP Surveillance networks.
Product List
IPS-5112-8BT
8 x 1G RJ-45 802.3bt 90W PoE +
4 x 10G SFP+
Managed Industrial PoE Switch
(W85.5 x D110 x H135 mm)

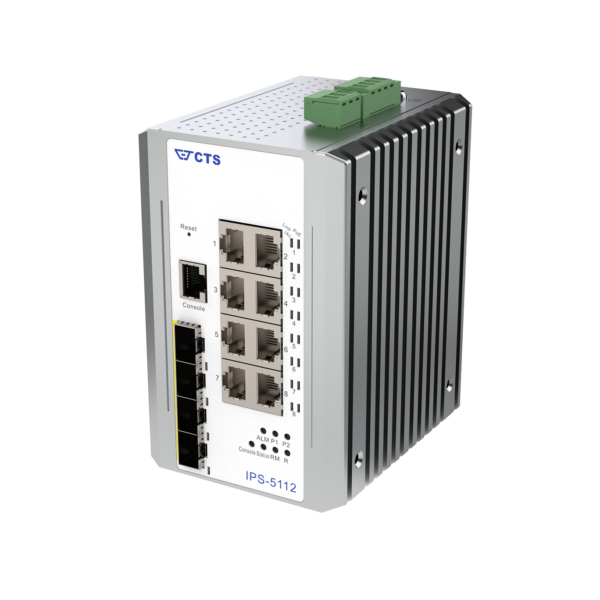

IPS-5112
8 x 1G RJ-45 802.3at 30W PoE +
4 x 10G SFP+
Managed Industrial PoE Switch
(W85.5 x D110 x H135 mm)
IPS-3120-PoE++
20-port Managed Industrial 60W PoE Switch with 4-Port SFP
(W115 x D135 x H200 mm)
IPS-3112-SE-8BT
8 x 1G RJ-45 802.3bt 90W PoE +
4 x 1G SFP
Managed Industrial PoE Switch
(W85.5 x D110 x H135 mm)
IPS-3112-SE
8 x 1G RJ-45 802.3at 30W PoE +
4 x 1G SFP
Managed Industrial PoE Switch
(W85.5 x D110 x H135 mm)
IPS-3112-PoE++
12-port Managed Industrial 60W PoE++ Switch with 4-Port SFP
(W80 x D135 x H200 mm)
IPS-3110SFP
8 x 1G RJ-45 802.3at 30W PoE +
2 x 1G Combo RJ-45/SFP
Managed Industrial PoE Switch
(W73 x D110 x H135 mm)
IPS-3110-PB
8 x 1G RJ-45 802.3at 30W PoE +
2 x 1G Combo RJ-45/SFP
Managed Industrial PoE Switch
(W88 x D110 x H135 mm)
IPS-3106-SE-PB
4 x 1G RJ-45 802.3at 30W PoE +
2 x 1G SFP
Managed Industrial PoE Switch
(W63 x D110 x H135 mm)
IPS-3106-SE
4 x 1G RJ-45 802.3at 30W PoE +
2 x 1G SFP
Managed Industrial PoE Switch
(W56.5 x D110 x H135 mm)

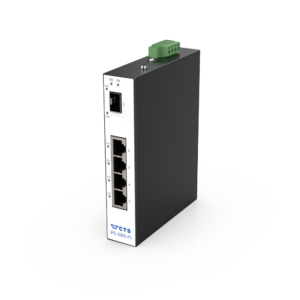

IPS-3005-F1
4 x 1G RJ-45 802.3at 30W PoE +
1 x 1G SFP Industrial PoE Switch
(W29 x D107 x H139 mm)
IPS-3005
4 x 1G RJ-45 802.3at 30W PoE +
1 x 1G RJ-45 Industrial PoE Switch
(W29 x D107 x H139 mm)
Features
The IPS series are provide perfect solution for delivering power over Ethernet for IP cameras. With optional PoE, it also provides you with flexibility in the installation of Wireless network or IP Surveillance networks.
Power Over Ethernet
Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations
Loop Detection
Automatically prevent the switching loops that cause network congestion and failures, and keep your service steadily running as planned
PoE Scheduling
Arrange the PoE schedule and specify the timing of PoE power-on and -off for each port to effectively manage the total power budget
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product
Lightning Protection
Protect ports from power surges due to lightning or improper electrical wiring
DHCP Auto Provisioning
Automatically upgrades the firmware and configuration from DHCP server to save maintenance cost
USB2.0
External USB ports ensure a future-proof feature, where new technologies can be added down the road through digital data transfer
Power Redundancy
Transition to the other redundant power module if either of the power sources is down
Dual Image
Safeguard against permanent system crash from firmware upgrade failures
