IPS-3005-F1
4 x 10/100/1000 Base-T 30w PoE 1 x 100/1000 Base-X SFP Industrial switch

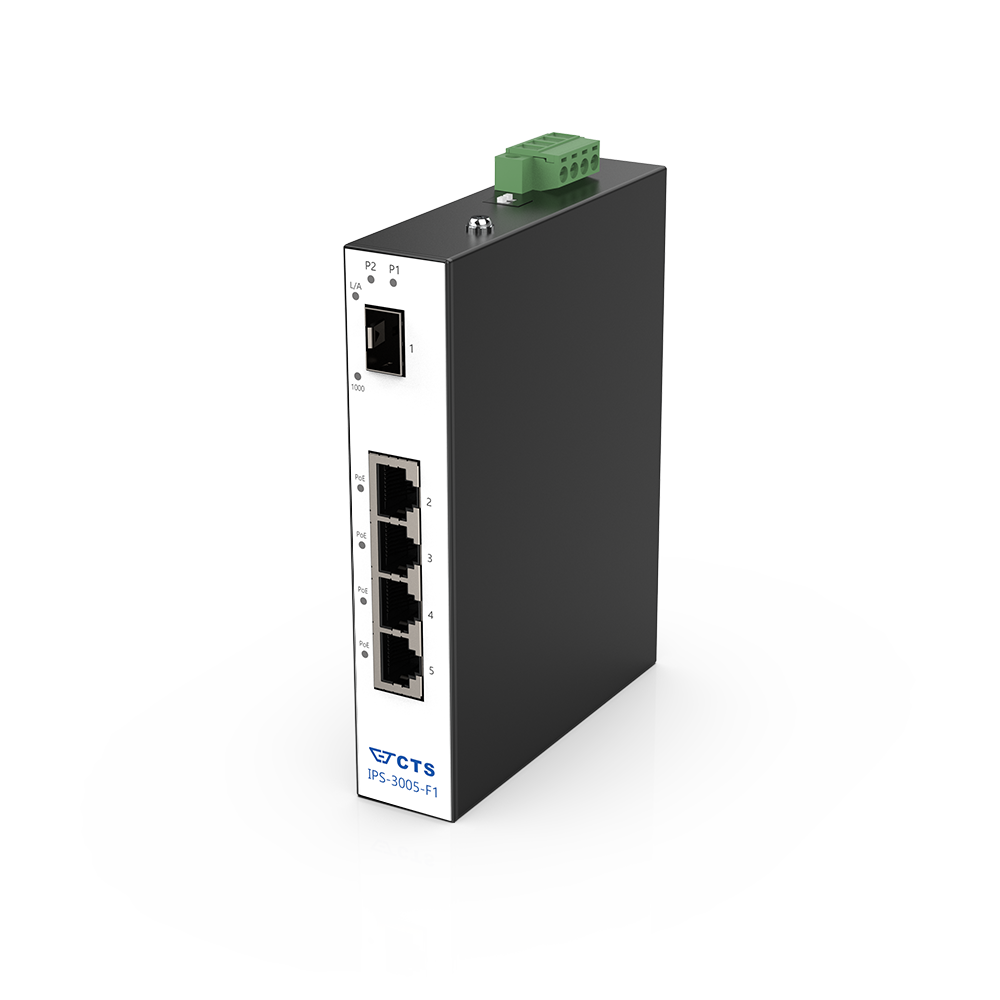

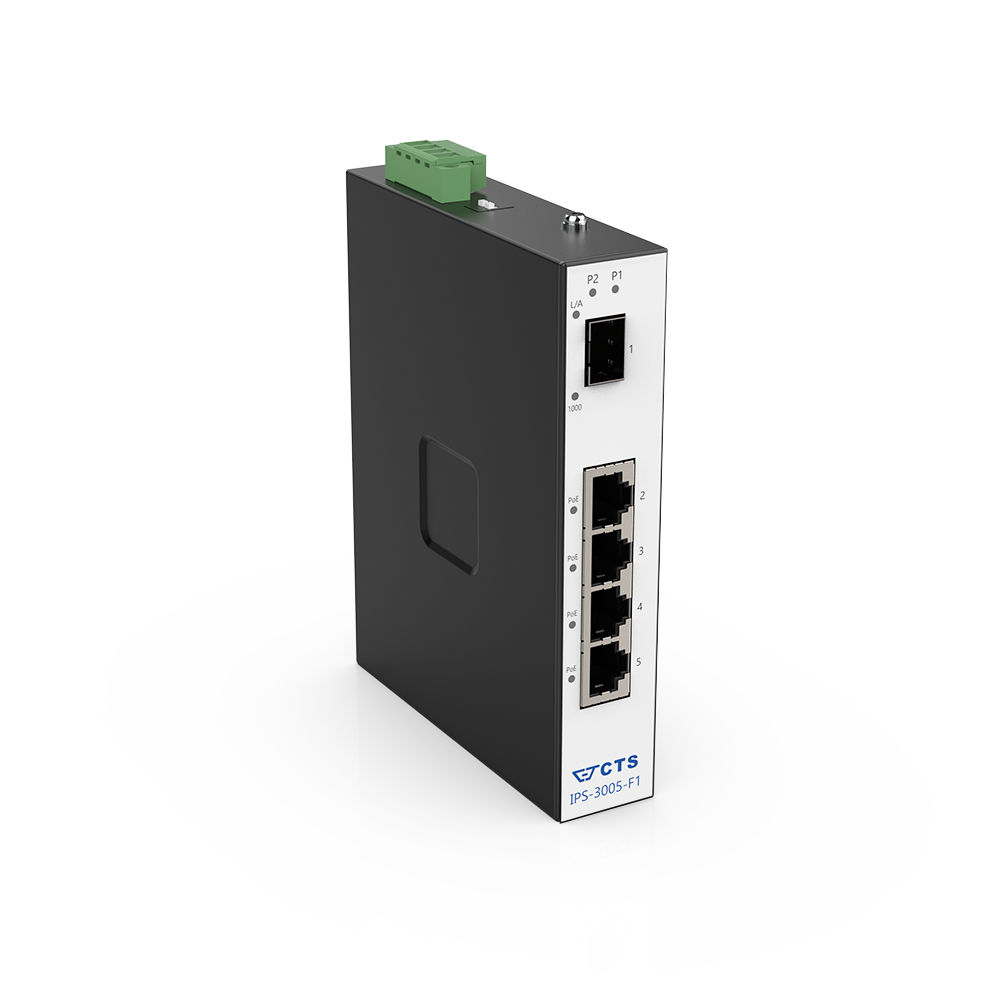

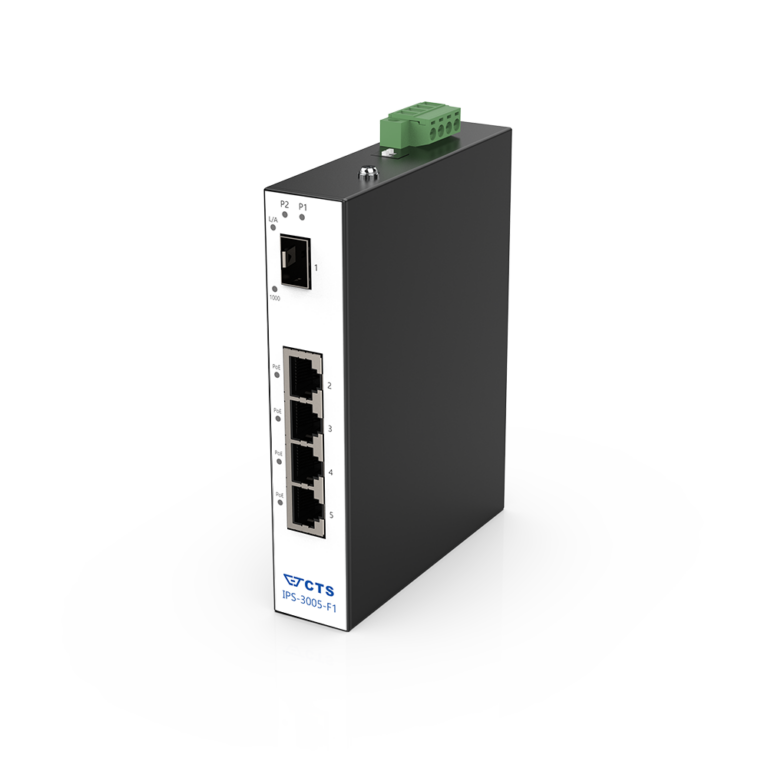

CTS IPS-3005-F1 is a 5-port, unmanaged Gigabit Ethernet switch compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivers up to 30 watts power per port along with data on standard Ethernet cabling.
Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 95%, Non-condensing
Dimension Size: 29 x 107 x 139 mm (W x D x H)
Weight: 0.375 Kg
Housing: Aluminum, IP30
Features
– Provide 4 Gigabit RJ-45 Copper Ports &1 SFP Port 100FX or 1000BaseF (SX/LX/LH)
– 4-Port PoE Compatible with IEEE 802.3af/at PoE PSE
– Support 9K Jumbo Frames
– Support IEEE 802.1p QoS TOS/DSCP, 4 Priority Queues – Broadcast Storm Control
– Supprt IEEE 802.3x Flow Control
– 2KV Surge Protection on RJ-45 Copper Ports
– Dual Power Input (48~58VDC)
– Reverse Polarity Protection
– 2KV Surge Immunity on RJ-45 Copper Ports
– Operating Temperature -40ºC~75ºC
Power Redundancy
Transition to the other redundant power module if either of the power sources is down
PoE Scheduling
Arrange the PoE schedule and specify the timing of PoE power-on and -off for each port to effectively manage the total power budget
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration
Specification
Interface
- LAN Port (Type):
4 x 10/100/1000Mbps PoE+ - Uplink Port (Type):
1 x 100/1000 Mbps SFP
LED
- P1, P2
- ALM
- Link & Speed
- PoE
Power Requirement
- Redundant power Input, Reverse Polarity Protection
- Input voltage range: 12-58 VDC, 54-58V for PoE+, 48-58V for PoE
- Total Power consumption: Maximum 123W
Hardware
- MAC Address : 2K
- Store and forward, L2 wire-speed/non-blocking switching engine
- Jumbo frame : 9K Bytes
- MDI/MDIX Auto-crossover : Support straight or cross wired cables
- Auto-Negotiation in TP Ports
- Full/Half Duplex Mode Operation
Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX/FX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3z 1000Base-X
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet Enhancements
Environmental Condition
- Operation: -40˚C ~ 75˚C
- Storage: -40˚C ~ 85˚C
- Humidity: 5% ~ 90%, Non-condensing
EMC/Safety
- Vibration, shock & freefall: IEC60068-2-6, -27, -32
- Certification compliance: CE/FCC; EN-5012104
- Electrical safety: CE
- EMC: FCC Part 15 Subpart B Class A, CISPR 22(EN55022) Class A IEC61000-4-2, -3, -4, -5, -6(Level 3)
Dimension & Weight
- Ingress protection: IP30
- Installation option: DIN-Rail mounting, Wall mounting
- Dimension: 29 x 107 x 139 mm (W x D x H)
- Weight: 0.375 Kg
Model
Model | WAN Port | LAN Port | Power Source | ||||
Speed | Type | Port | Speed | PoE++ Port | PoE+ Port | ||
IPS-3005-F1 | 100/1000 | SFP | 1 | 10/100/1000 | - | 4 | Terminal Block with |
Download
Model | Info | Version | Download file |
IPS-3005-F1 | Datasheet | A01 | |
IPS-3005-F1 | User's Manual (HW) | V1.0 |
