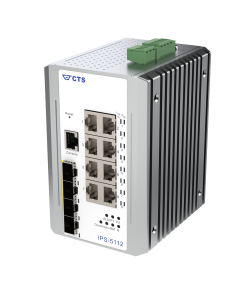

IPS-5112
8 x 1000/100/10T 802.3at PoE + 4 x 10G/1G SFP+
Managed Industrial Switch
The IPS-5112 is equipped with 8 x Gigabit 802.3at PoE RJ-45 ports delivering up to 30W per port and a 240W total budget, plus 4 x 10GBase-X SFP+ fiber uplinks, rated for -40°C to 75°C operation.
Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 85.5 x 110 x 135 mm (W x D x H)
Weight: 1.54 Kg
Features
IPS-5112 offers flexible high-bandwidth connectivity with 10G SFP+ ports supporting both 1G and 10G speeds, alongside 802.3at PoE delivering up to 30W per port with per-port scheduling for efficient power management. Dual DC input and DHCP Auto Provisioning ensure high availability and simplified large-scale deployment.
10G
Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike.
Power Redundancy
Transition to the other redundant power module if either of the power sources is down.
DHCP Auto Provisioning
Automatically upgrade the firmware and configuration from the DHCP server to save maintenance costs.
Loop Detection
Automatically prevent the switching loops that cause network congestion and failures, plus keeping your service steadily running as planned.
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, ensuring optimal performance and longevity.
Dual Image
Safeguard against permanent system crash from firmware upgrade failures.
IPv4/IPv6 Dual Stack
Able to run IPv4 and IPv6 in parallel and be interoperable with other IPv4 / IPv6 / dual-stacked devices, which enables IPv6 management, IPv6 packet forwarding, and MLD v1/v2 Snooping.
Power Over Ethernet
Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations.
PoE Scheduling
Arrange the PoE schedule and specify the timing of PoE power-on and -off for each port to effectively manage the total power budget.

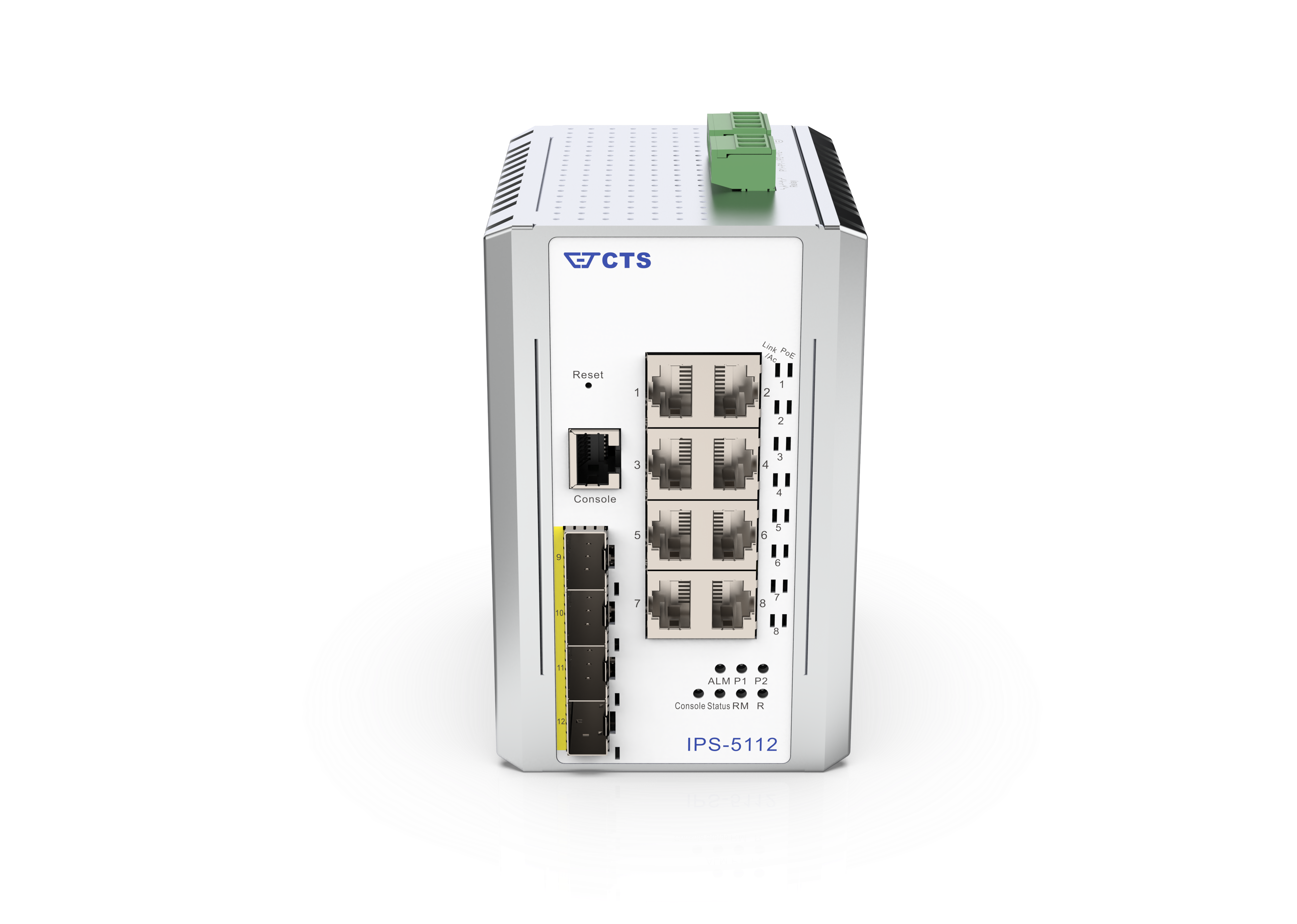

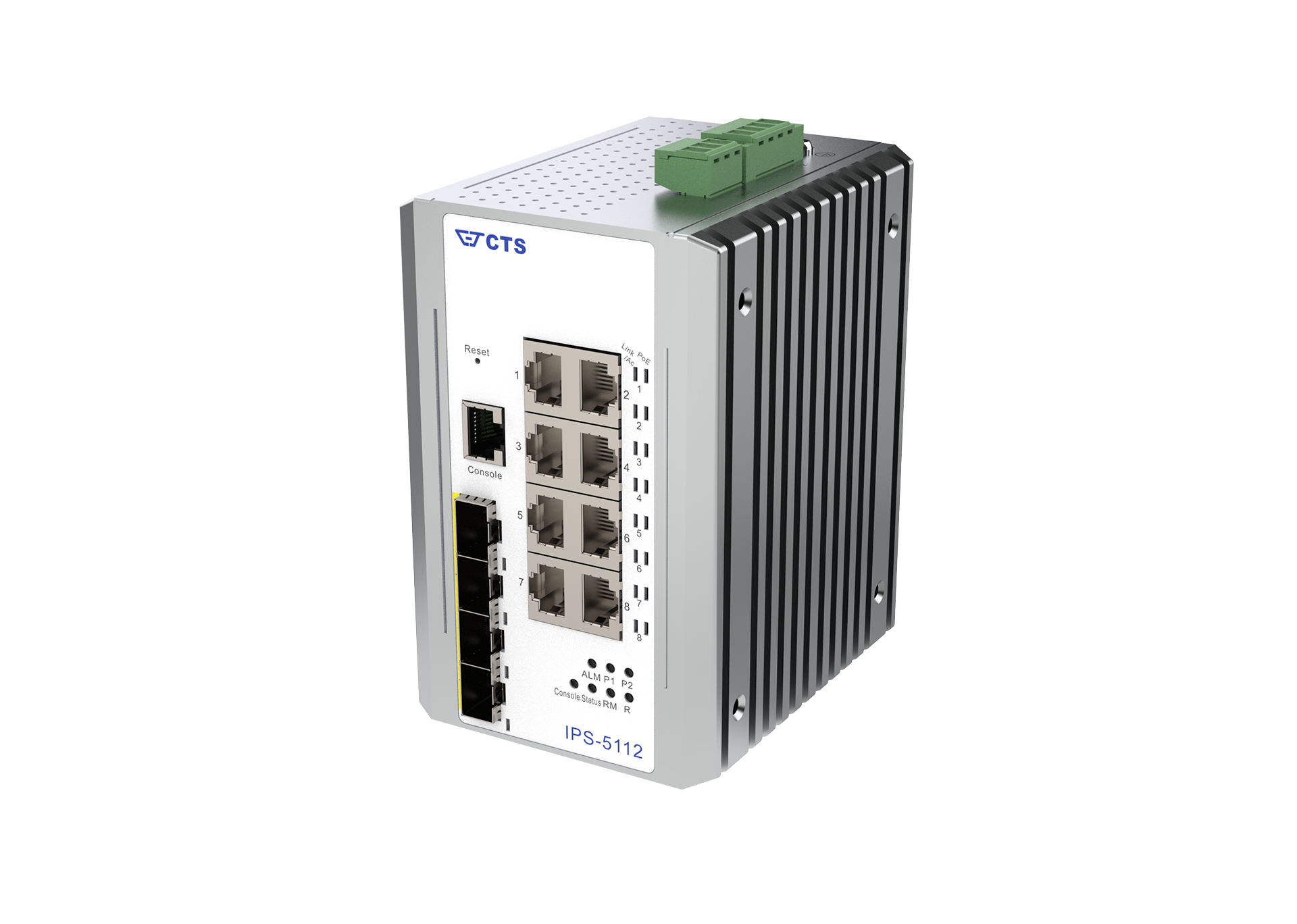

Hardware Overview
Specification
Interface
Fiber Port
- 4 x 10/1GBase-X SFP+ Slot
RJ-45 Port
- 8 x 1000/100/10Base-T RJ-45 with IEEE 802.3af/at PoE injector
LED
- P1, P2, STA, ALM, Ring, Ring Master
- COM, Link/Act/Speed, PoE
Power Requirement
- Dual Input: 48~57V DC
(4-pin removable terminal block) - Power Consumption: full-load ≤ 255W (870 BTU/h)
Hardware
- MAC Address Table: 16K
- Non-blocking Switching Fabric: 96Gbps
- Throughput @ 64Bytes: 71.4Mpps
- Jumbo Frame: 12 KB
- Packet Buffer: 1.5 MB
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: -40˚C~75˚C
- Storage Temperature: -40˚C~85˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 85.5 x 110 x 135mm (W x D x H)
- Weight: 1.54 Kg
- Housing: Aluminum, IP30
Topology

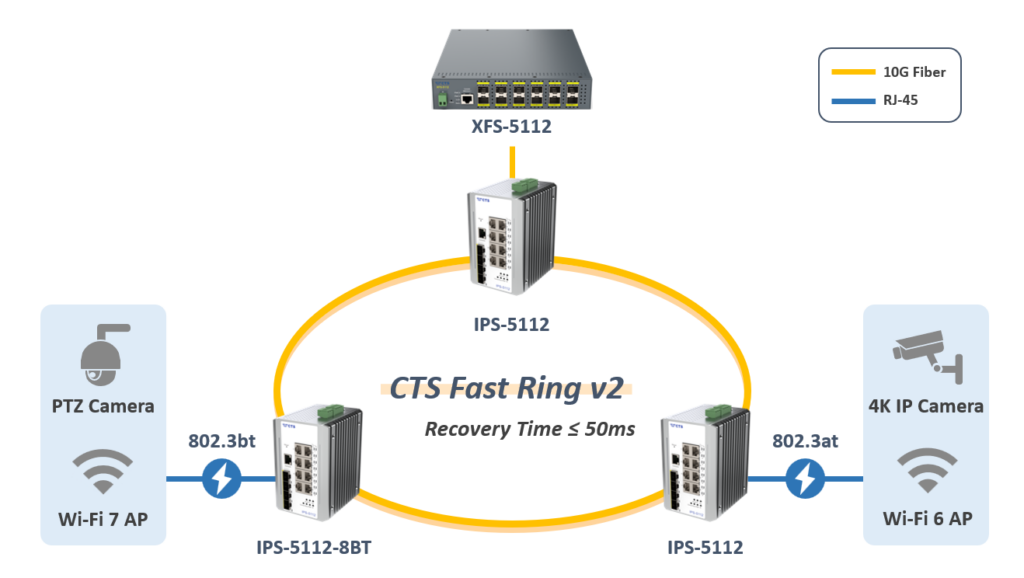

Application Diagram
Model
Model | Fiber Port | TP Port | Support Power Source | |||
Speed | Type | Slot | Speed | Port | ||
IPS-5112 | 10/1G | SFP+ | 4 | 1000/100/10M | 8 with 802.3at 30W PoE | 2 x 48~57V DC (terminal block) |
Download
Model | Info | Version | Download file |
IPS-5112 | Datasheet | A01 | |
IPS-5112 | User's Manual (HW) | V1.0 | |
IPS-5112 | User's Manual (NMS) | V1.0 |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
