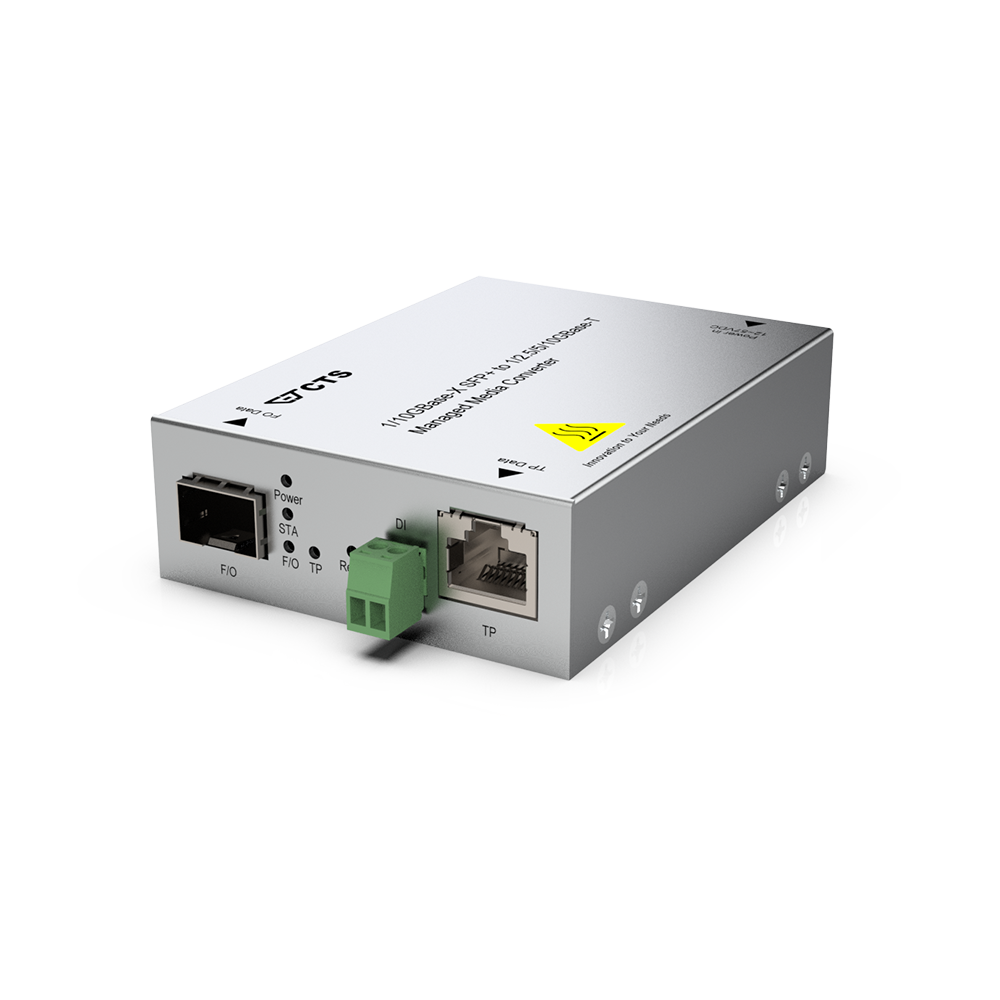

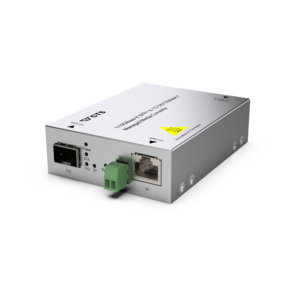

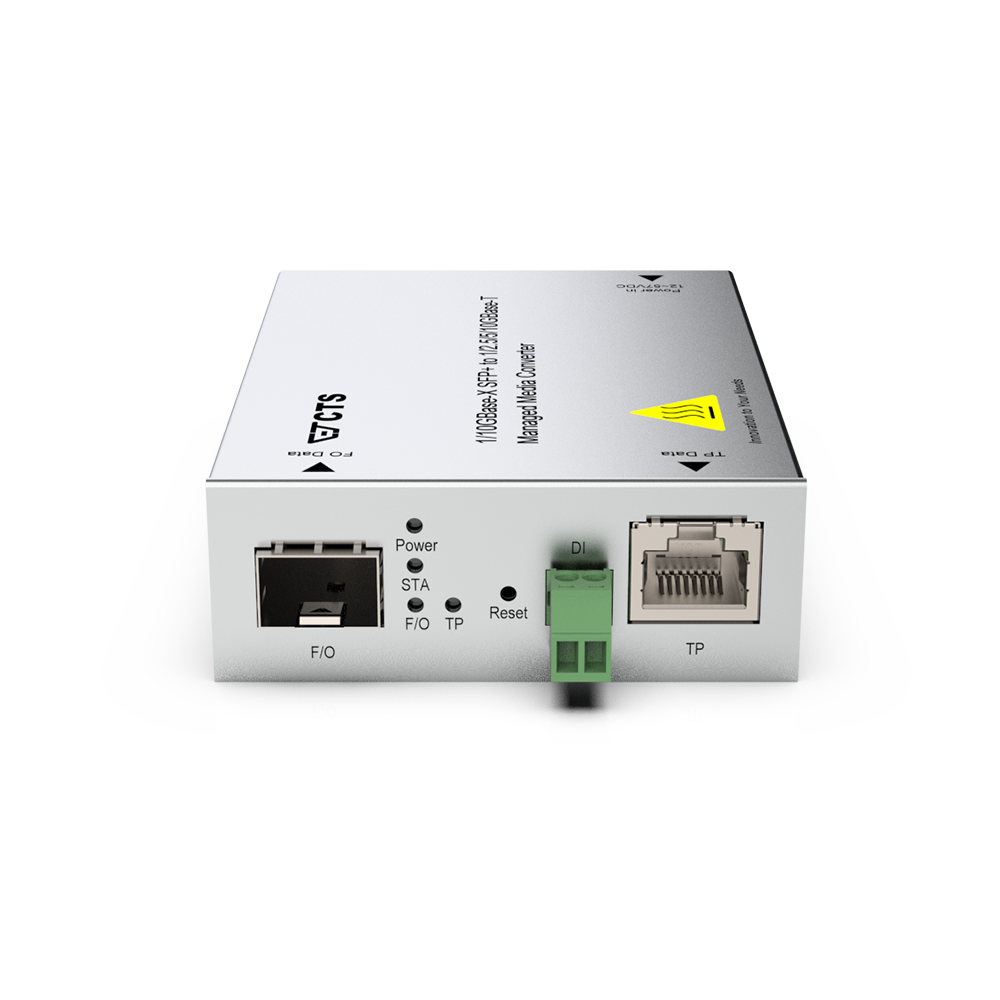

SRC-5102SFP-MG
1 x 10/1GBase-X SFP+ to
1 x 10/5/2.5/1G/100MBase-T RJ-45
Managed Rugged Media Converter
The SRC-5102SFP-MG is a robust 10G media converter designed for demanding environments, supporting operation in a wide temperature range from -20°C to 60°C. It enables high-speed fiber-to-Ethernet conversion, making it ideal for outdoor deployments such as roadside cabinets, surveillance systems, and smart city infrastructure. With its industrial-grade reliability and compact form factor, the SRC-5102SFP-MG ensures stable data transmission even under harsh conditions.
Environmental Condition Operation: -20˚C ~ 60˚C
Storage: -30˚C ~ 70˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 71 x 94 x 26 mm (W x D x H)
Weight: 250 g
Features
The SRC-5102SFP-MG is a 10G media converter designed for versatile deployments. It supports Multi-G Ethernet, adjustable fiber speed, and IPv4/IPv6 dual stack. Features like DHCP auto provisioning, dual image, and iProbe simplify management and monitoring. Suitable for DIN rail or wall mounting, it operates reliably in -20 to 60°C environments.
10G
Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike.
DHCP Auto Provisioning
Automatically upgrade the firmware and configuration from the DHCP server to save maintenance costs.
Dual Image
Safeguard against permanent system crash from firmware upgrade failures.
iProbe
Streamlined troubleshooting and management with advanced diagnostics, including IPTV monitoring, end-user device emulation, and cable testing.
IPv4/IPv6 Dual Stack
Able to run IPv4 and IPv6 in parallel and be interoperable with other IPv4 / IPv6 / dual-stacked devices, which enables IPv6 management, IPv6 packet forwarding, and MLD v1/v2 Snooping.
Multi-G
As bandwidth demand soars to new heights, 10G/5G/2.5G/1G/100MBase-T ports allow users to get up to the speed of 10/5/2.5Gbps
Adjustable Fiber Speed
Adjust the fiber speed manually and compatible with more network application.
DIN-rail Installation
Supports DIN-rail installation method
Wall-mount Installation
Supports wall-mounting installation method
-20~60 degrees C
To boasts an extended temperature range, enabling operation from -20 to 60 degrees C.

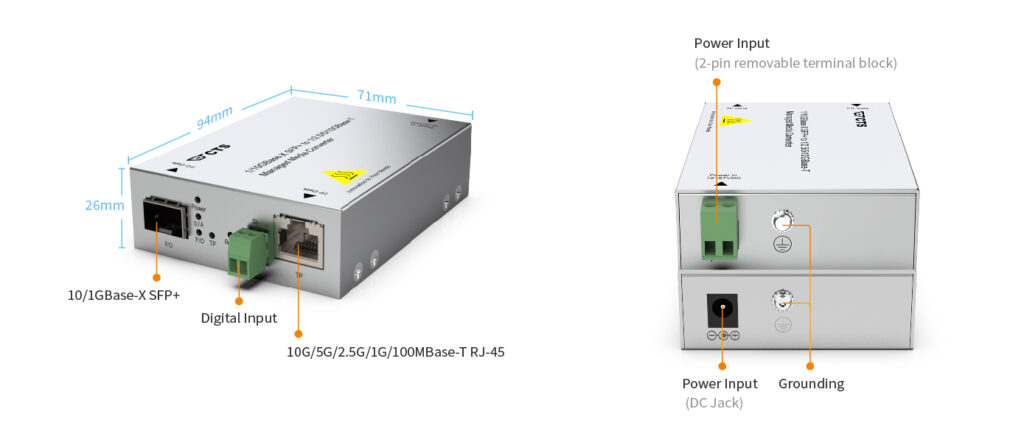

Hardware Overview

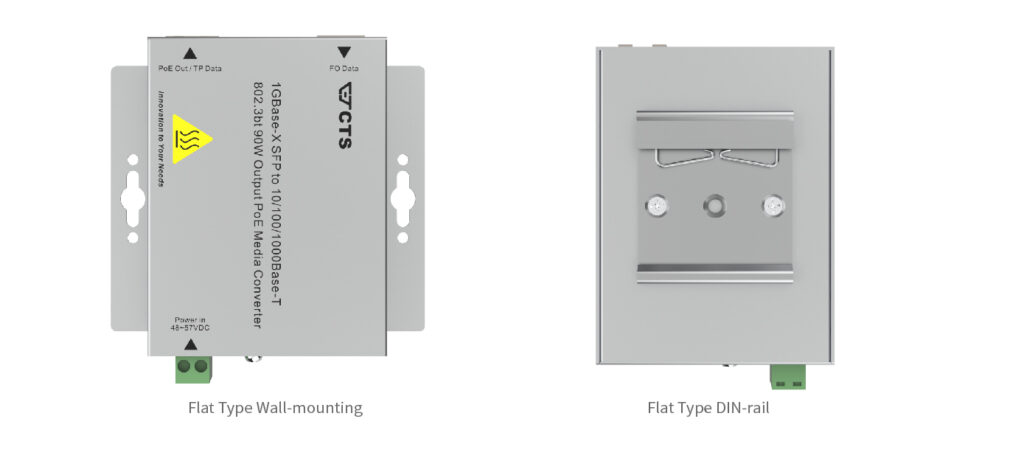

Accessory Installation Illustration
NOTE: Illustration based on Model SRC-3002SFP-BT. Installation appearance is the same across SRC series.
Specification
Interface
- 1 x 10/1GBase-X SFP+ Slot
- 1 x 10G/5G/2.5G/1G/100MBase-T RJ-45
Terminal Block
- 1 x Digital Input (Dry Contact)
LED
- Power, Status
- TP Link/Act/Speed, F/O Link/Act/Speed
Power Requirement
- Input: 12~57 VDC

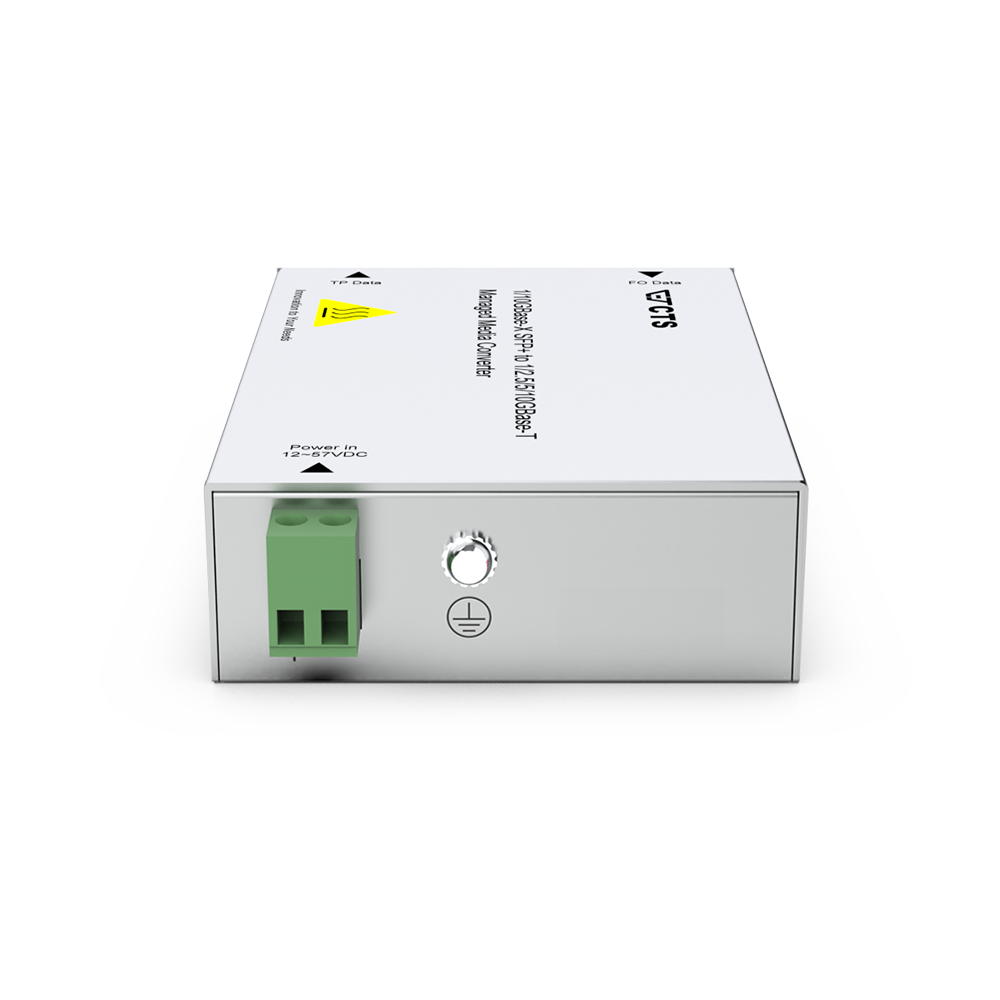

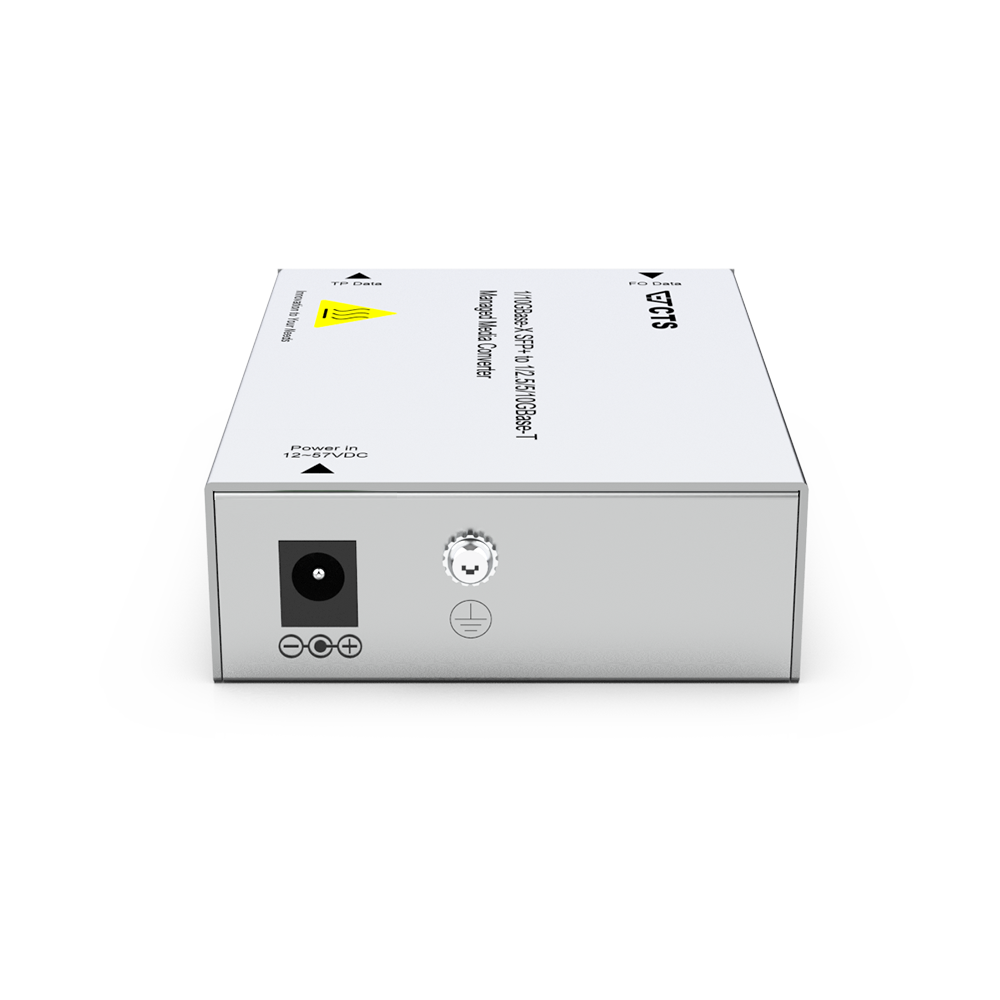

(2-pin removable terminal block or DC jack)
- Power Consumption
- Device: full-load < 11W (37.5 BTU/h)
Hardware
- MAC Address Table: 4K
- Non-blocking Switching Fabric: 40Gbps
- Throughput @ 64Bytes: 29.76Mpps
- Jumbo Frame: 16K Bytes
- Packet Buffer: 8Mbit
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: -20˚C~60˚C
- Storage Temperature: -30˚C~70˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
VCCI/UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 71 x 94 x 26mm (W x D x H)
- Weight: 250 g
- Housing: Aluminum(Upper), Iron(Bottom), IP30
Topology

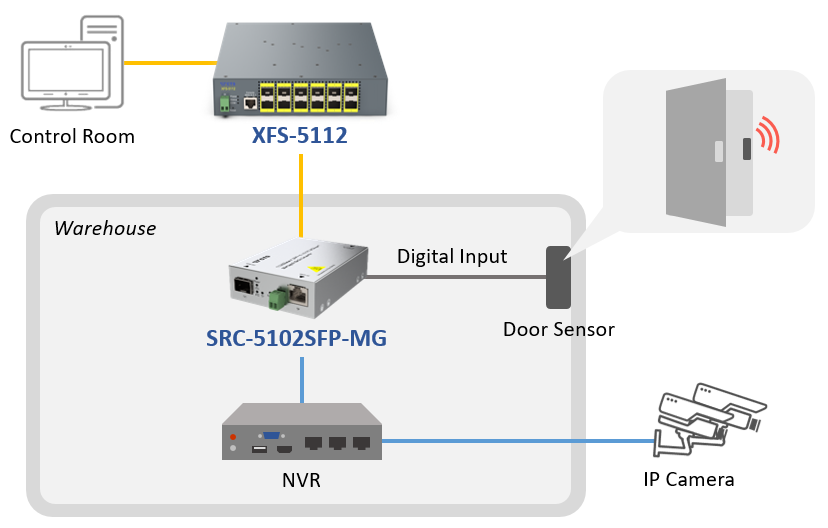

Application Diagram
Model
Model | Fiber Port | TP Port | Support Power Source | |||
Speed | Type | Slot | Speed (bps) | Port | ||
SRC-5102SFP-MG | 10G/1G | SFP+ | 1 | 10G/5G/2.5G/1G/100M | 1 | 1 x 12~57V DC with 2-pin removable terminal block |
SRC-5102SFP-MG(DC Jack) | 10G/1G | SFP+ | 1 | 10G/5G/2.5G/1G/100M | 1 | 1 x 12~57V DC |
Download
Model | Info | Version | Download file |
SRC-5102SFP-MG | Datasheet | A01 | |
SRC-5102SFP-MG | User's Manual (HW) | V1.0 | |
SRC-5102SFP-MG | User's Manual (NMS) | V1.0 | |
SRC-5102SFP-MG | Firmware | ||
SRC-5102SFP-MG | MIB-file | ||
SRC/CVT Series | Slim type mounting Installation Guide | V1.1 | |
CTS iProbe | Introduction |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
