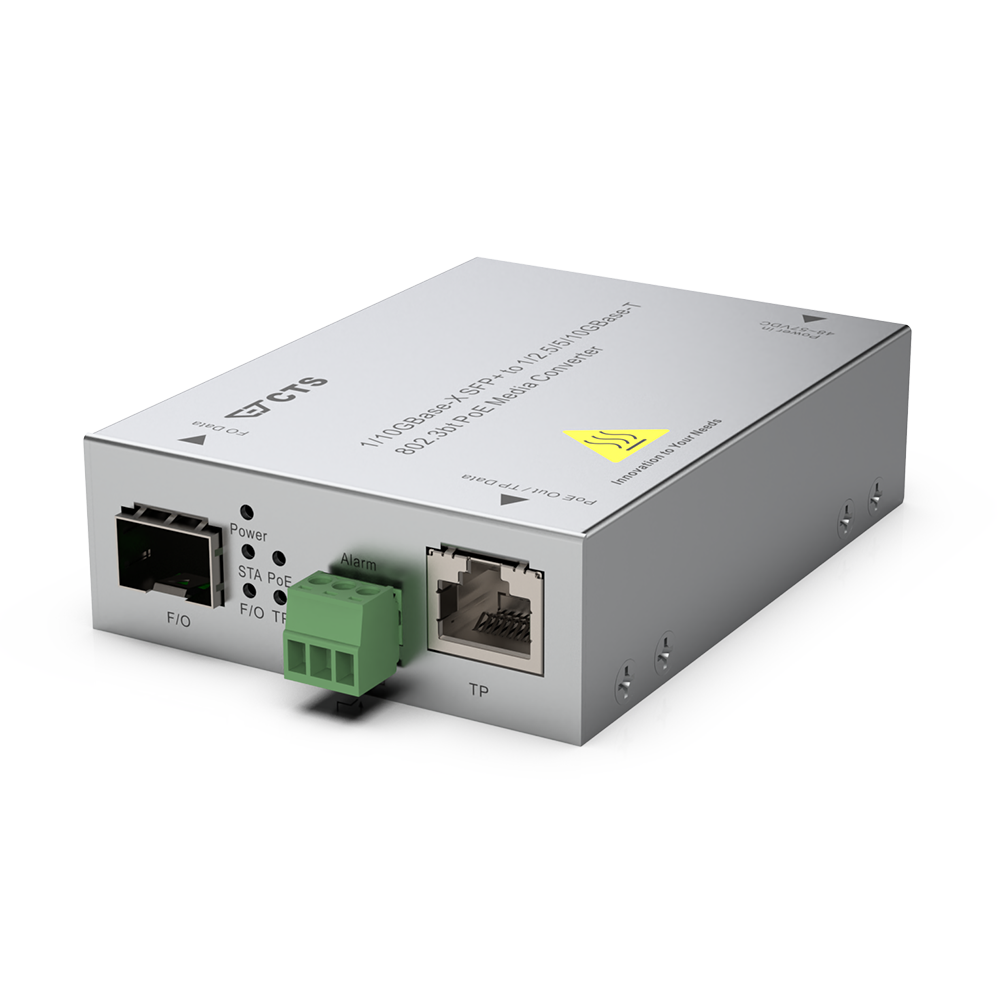

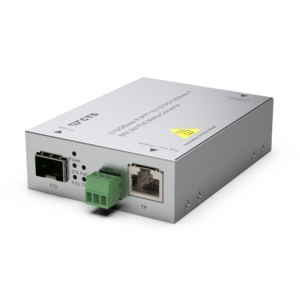

SRC-5002SFP-MG-BT
1 x 10/1GBase-X SFP+ to
1 x 10/5/2.5/1G/100MBase-T RJ-45 with
IEEE 802.3af/at/bt PoE injector Rugged Media Converter
The SRC-5002SFP-MG-BT offers seamless high-speed connectivity with 1 x 10/1GBase-X SFP+ and 1 x 10/5/2.5/1G/100MBase-T RJ-45 port. Supporting IEEE 802.3af/at/bt standards, it delivers up to 60W of PoE power, making it ideal for powering advanced network devices. Engineered for harsh environments, it ensures stable performance across a wide operating temperature range of -20°C to 60°C.
Environmental Condition Operation: -20˚C ~ 60˚C
Storage: -30˚C ~ 70˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 71 x 94 x 26 mm (W x D x H)
Weight: 270 g
Features
The SRC-5002SFP-MG-BT supports 10G fiber uplinks and multi-Gigabit Ethernet with plug-and-play simplicity. It features link alarm for enhanced reliability, up to 60W PoE power output (IEEE 802.3af/at/bt), and PSE auto power off. Designed for -20°C to 60°C operation, it offers flexible DIN-rail and wall-mounting for diverse deployment needs.
10G
Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike.
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration.
Link Alarm
Alert users to connectivity issues as copper and fiber optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection.
Power over Ethernet
Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations.
Multi-G
As bandwidth demand soars to new heights, 10G/5G/2.5G/1G/100MBase-T ports allow users to get up to the speed of 10/5/2.5Gbps
Adjustable Fiber Speed
Adjust the fiber speed manually and compatible with more network application
DIN-rail Installation
Supports DIN-rail installation method
Wall-mounting Installation
Supports wall-mounting installation method
-20~60 degrees C
To boasts an extended temperature range, enabling operation from -20 to 60 degrees C.
PSE Auto Power Off
It automatically deactivates PoE output in the event of a fiber link disruption.

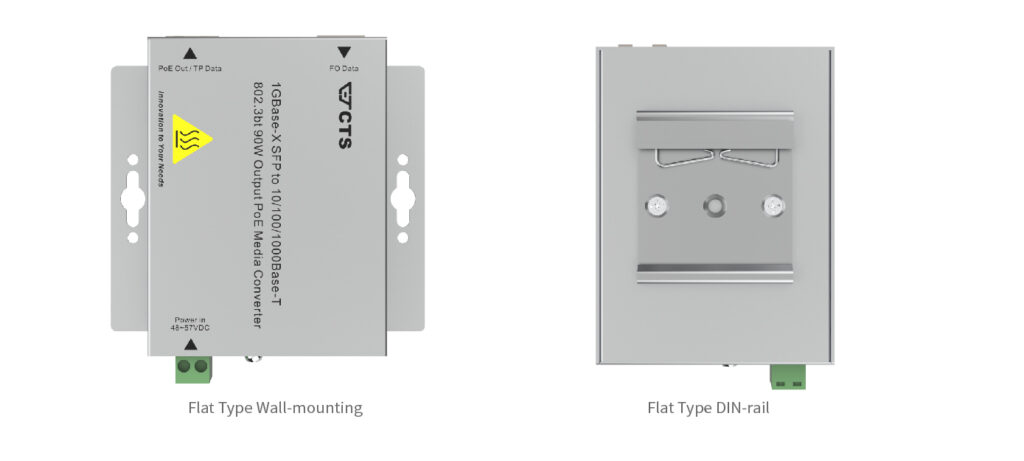

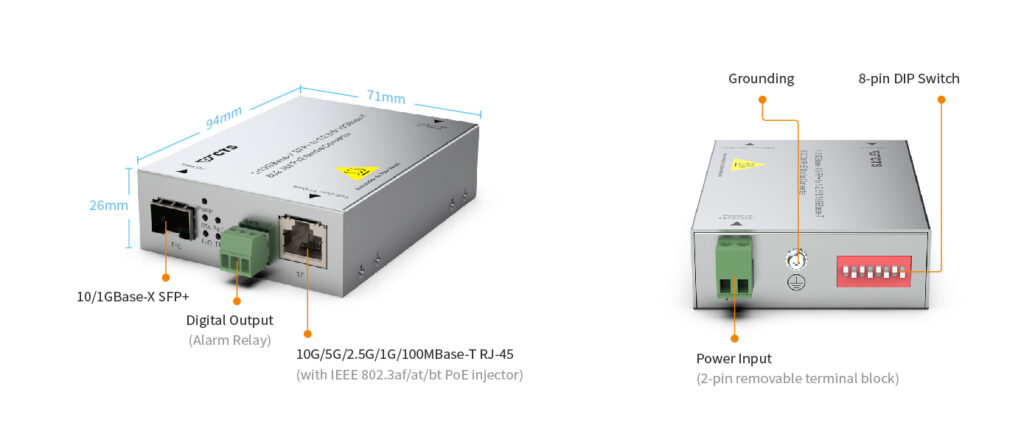

Hardware Overview

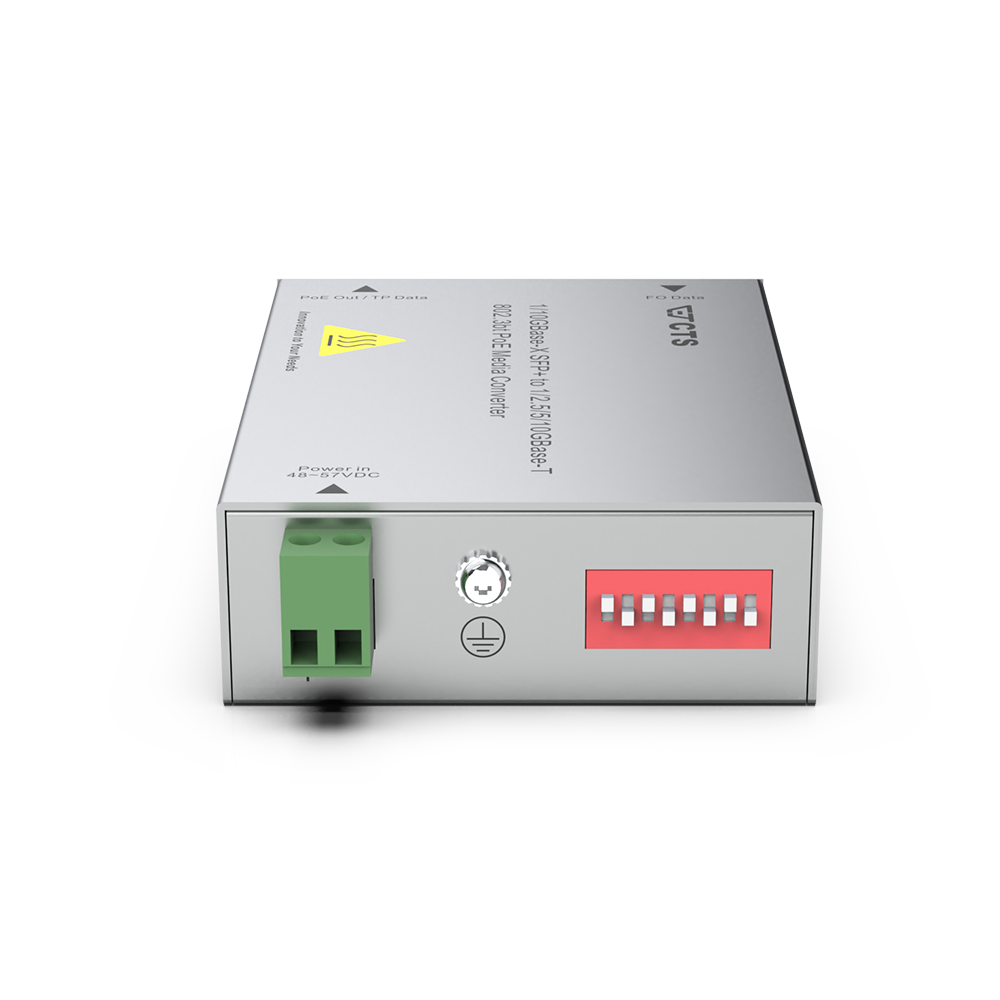

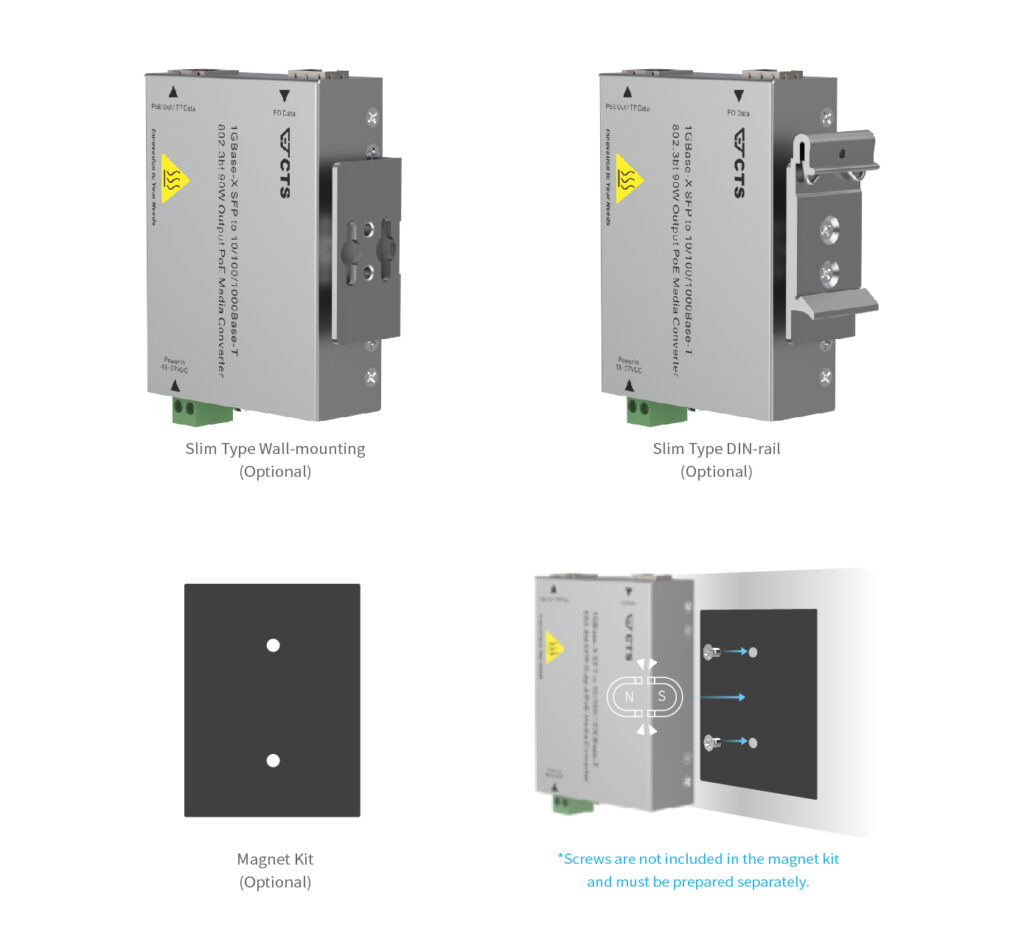

Accessory Installation Illustration
NOTE: Illustration based on Model SRC-3002SFP-BT. Installation appearance is the same across SRC series.
Specification
Interface
- 1 x 10/1GBase-X SFP+ Slot
- 1 x 10G/5G/2.5G/1G/100MBase-T RJ-45 with IEEE 802.3af/at/bt injector,
up to 60W PoE output
Terminal Block
- 1 x Digital Output (Alarm Relay),
Relay output with current carrying capacity of 1A @ 24VDC
LED
- Power, Status, PoE
- TP Link/Act/Speed, F/O Link/Act/Speed
Power Requirement
- Input: 48~57 VDC
(2-pin removable terminal block) - Power Consumption
Device: full-load < 108W (368.5 BTU/h)
Hardware
- MAC Address Table: 4K
- Non-blocking Switching Fabric: 40Gbps
- Throughput @ 64Bytes: 29.76Mpps
- Jumbo Frame: 16K Bytes
- Packet Buffer: 8Mbit
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: -20˚C~60˚C
- Storage Temperature: -30˚C~70˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
VCCI/UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 71 x 94 x 26mm (W x D x H)
- Weight: 270 g
- Housing: Aluminum(Upper), Iron(Bottom), IP30
Topology

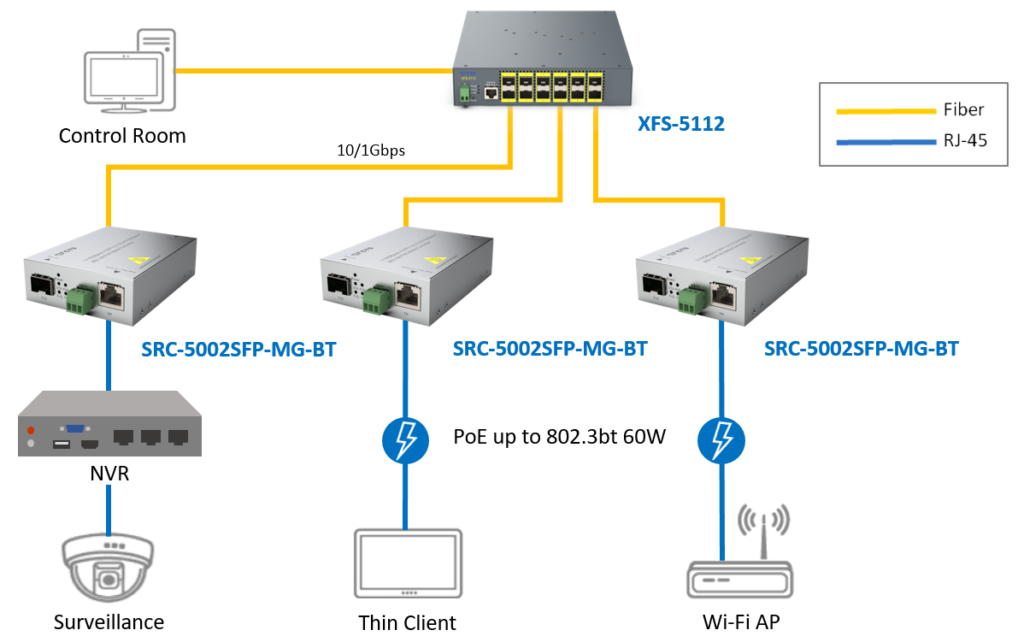

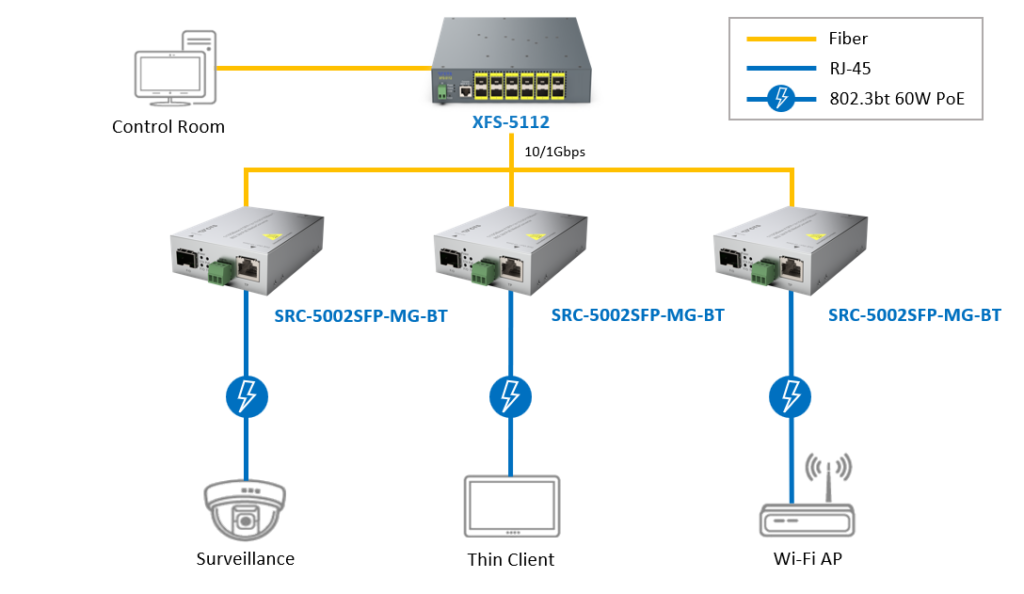

Application Diagram
Model
Model | Fiber Port | TP Port | Support Power Source | |||
Speed | Type | Slot | Speed (bps) | Port | ||
SRC-5002SFP-MG-BT | 10G/1G | SFP+ | 1 | 10G/5G/2.5G/1G/100M | 1 | 1 x 48~57V DC with 2-pin removable terminal block |
Download
Model | Info | Version | Download file |
SRC-5002SFP-MG-BT | Datasheet | A01 | |
SRC-5002SFP-MG-BT | User's Manual (HW) | V1.1 | |
SRC/CVT Series | Slim type mounting | V1.1 |
