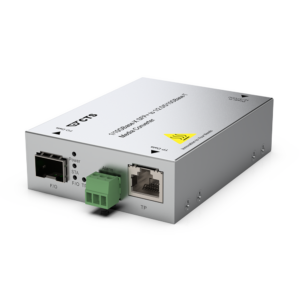

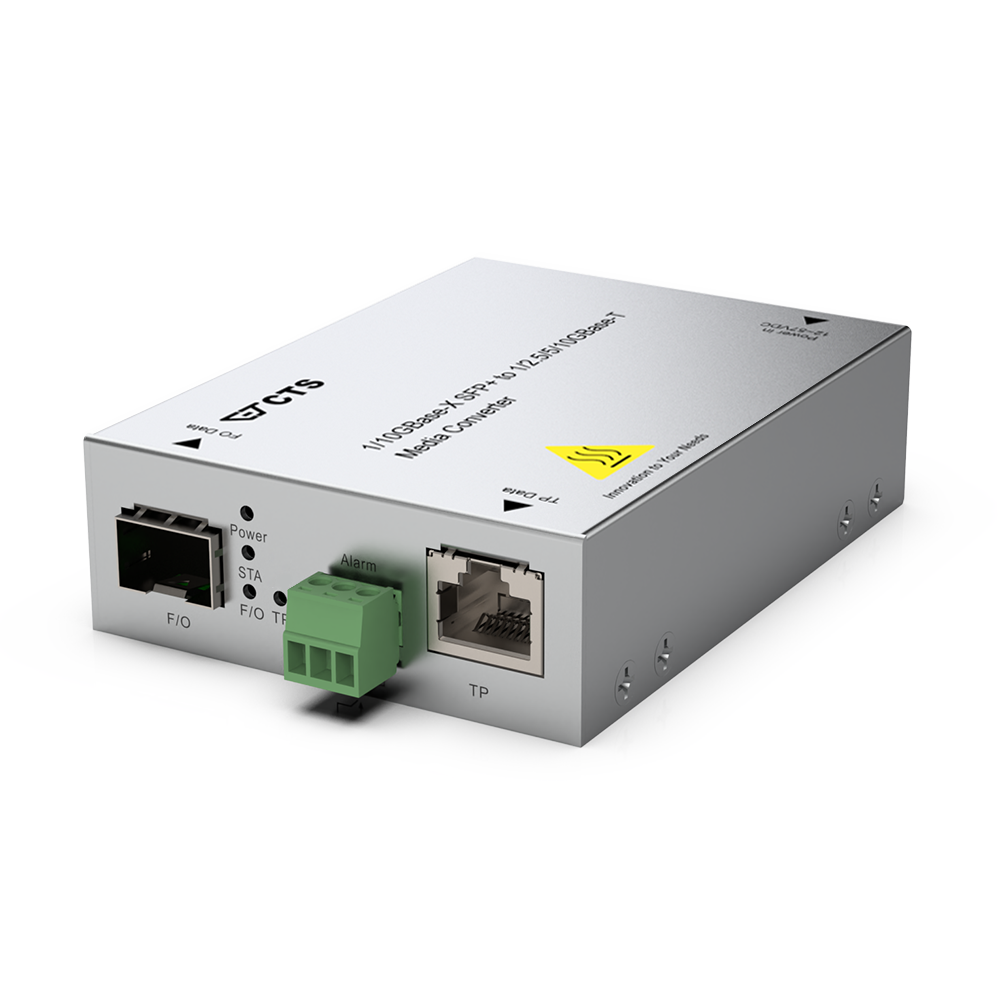

SRC-5002SFP-MG
1 x 10/1GBase-X SFP+ to
1 x 10/5/2.5/1G/100MBase-T RJ-45
Rugged Media Converter
The SRC-5002SFP-MG provides high-speed connectivity via 1 x 10/1GBase-X SFP+ and 1 x 10/5/2.5/1G/100MBase-T RJ-45 port. Built for reliability, it supports operation in environments ranging from -20°C to 60°C, making it suitable for applications requiring stable performance under varying conditions.
Environmental Condition Operation: -20˚C ~ 60˚C
Storage: -30˚C ~ 70˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 71 x 94 x 26 mm (W x D x H)
Weight: 230 g
Features
The SRC-5002SFP-MG supports 10G fiber uplinks and multi-Gigabit Ethernet with plug-and-play simplicity. It features link alarm for enhanced reliability and supports operation in temperatures from -20°C to 60°C. Flexible DIN rail and wall mounting options make it suitable for diverse deployment scenarios.
10G
Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike.
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration.
Link Alarm
Alert users to connectivity issues as copper and fiber optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection.
Multi-G
As bandwidth demand soars to new heights, 10G/5G/2.5G/1G/100MBase-T ports allow users to get up to the speed of 10/5/2.5Gbps
Adjustable Fiber Speed
Adjust the fiber speed manually and compatible with more network application
DIN-rail Installation
Supports DIN-rail installation method
Wall-mounting Installation
Supports wall-mounting installation method
-20~60 degrees C
To boasts an extended temperature range, enabling operation from -20 to 60 degrees C.

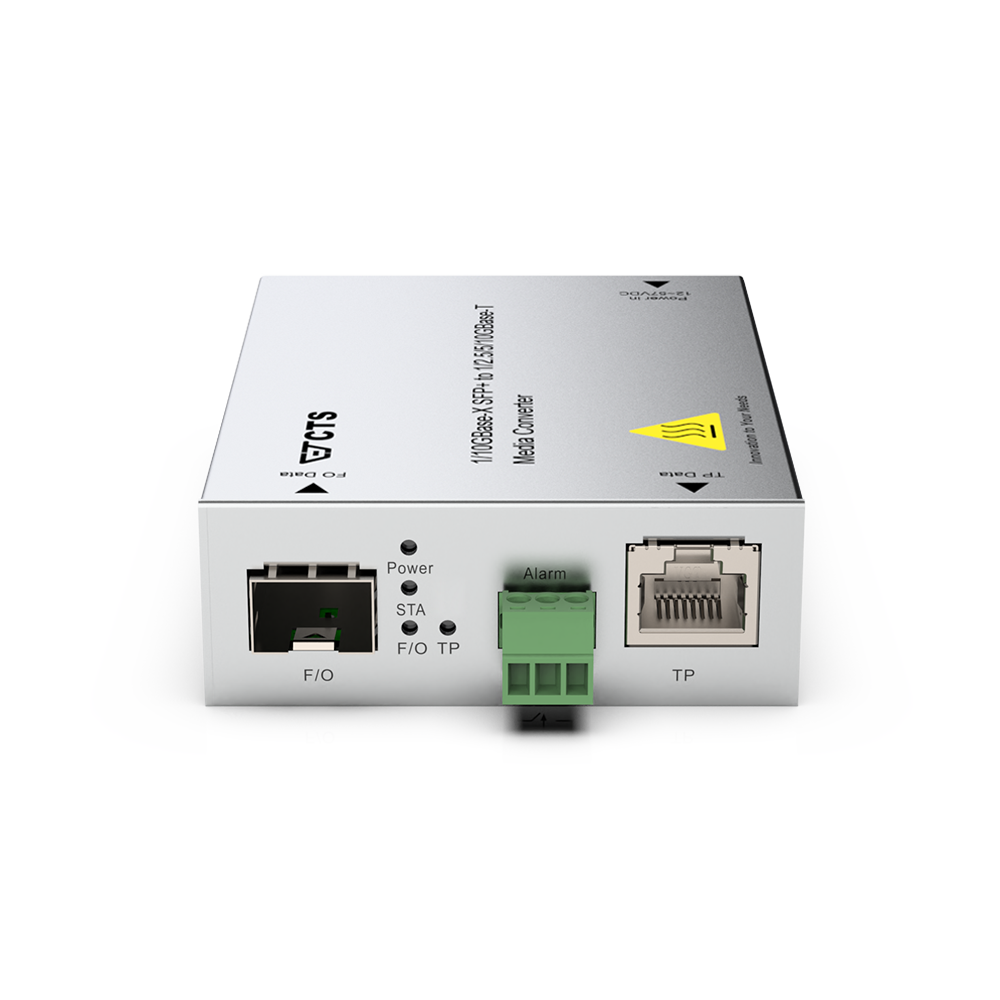

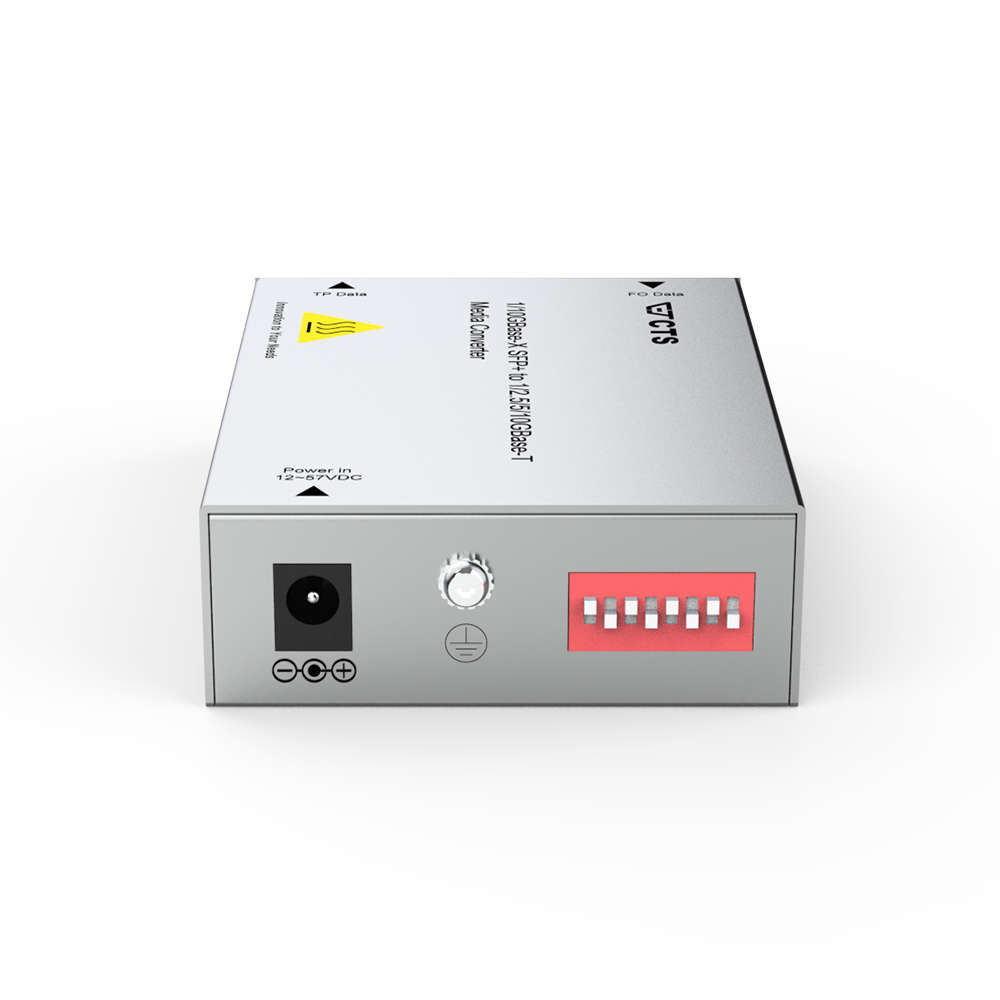

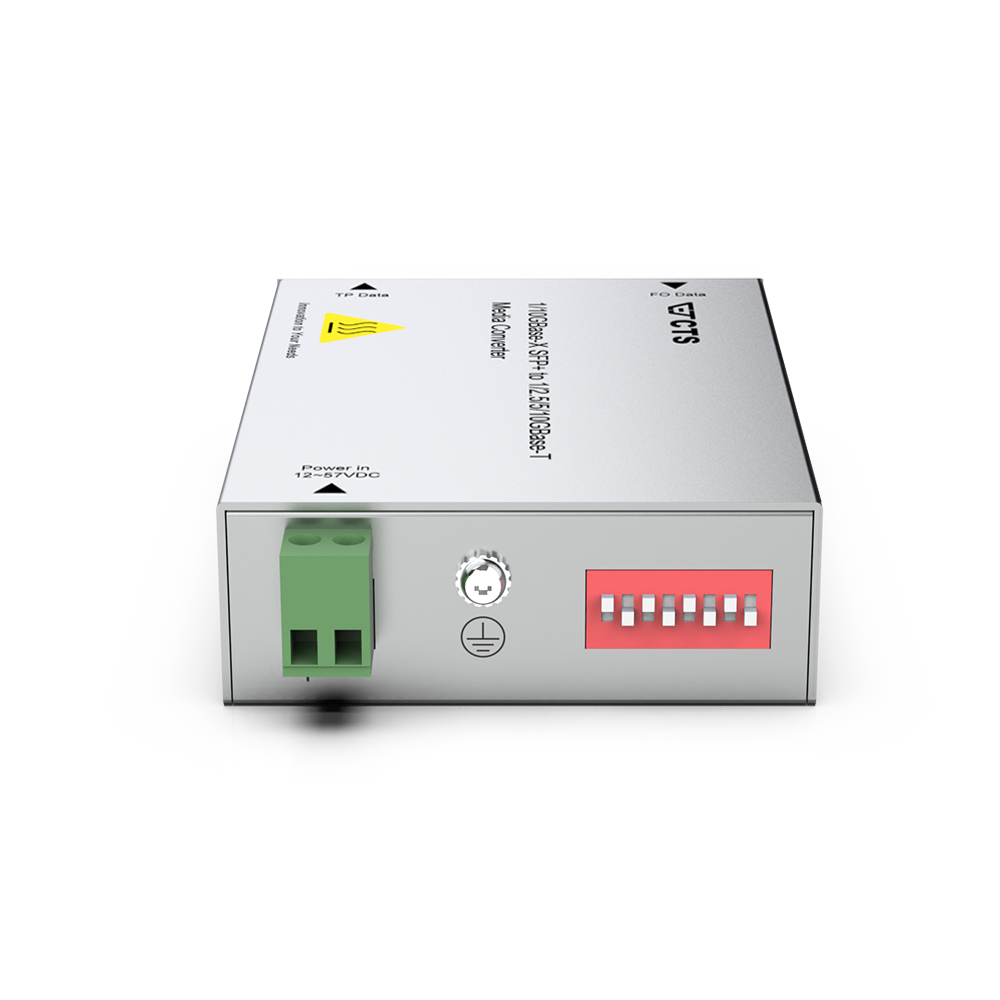

Hardware Overview

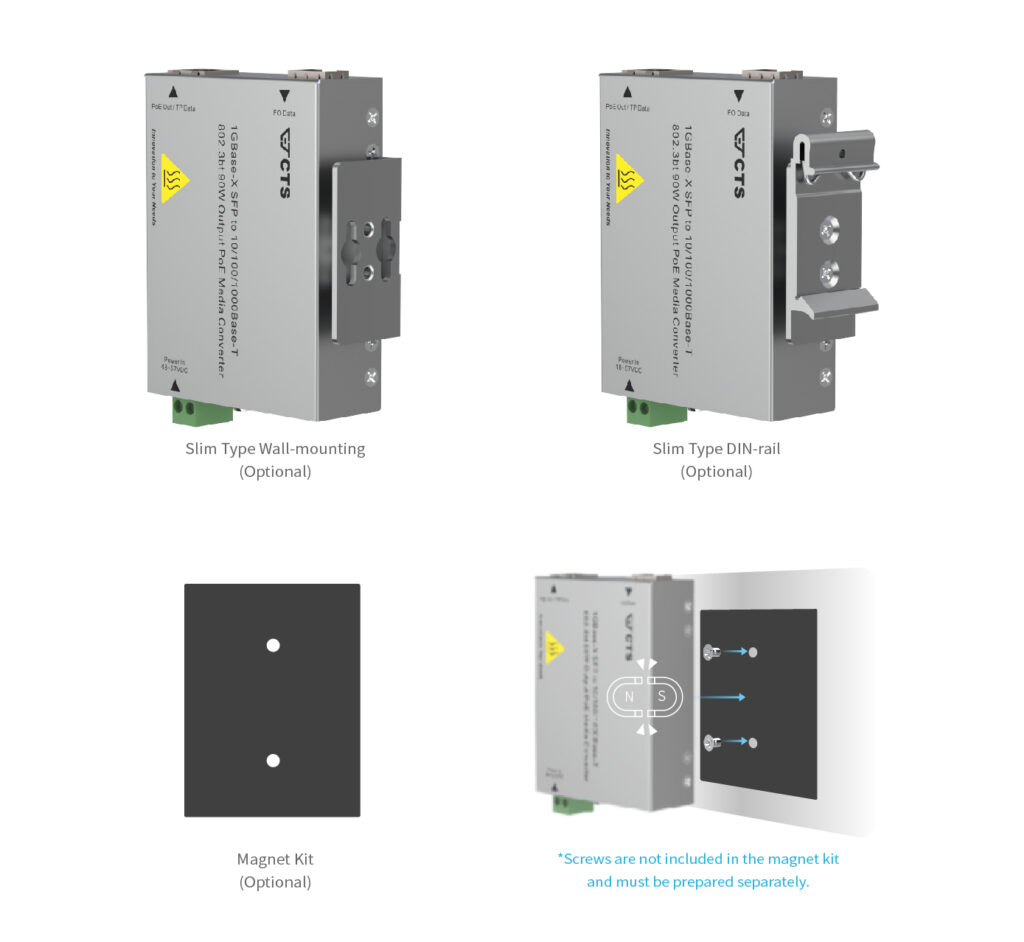

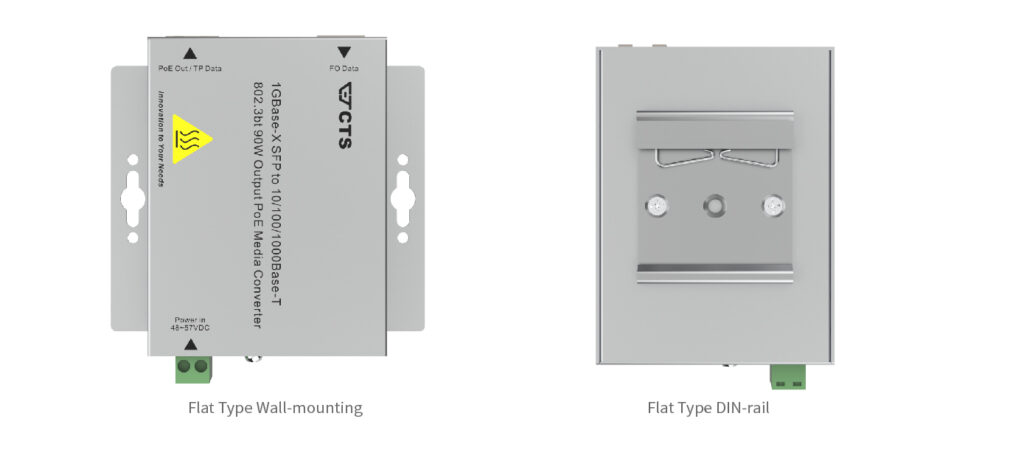

Accessory Installation Illustration
NOTE: Illustration based on Model SRC-3002SFP-BT. Installation appearance is the same across SRC series.
Specification
Interface
- 1 x 10/1GBase-X SFP+ Slot
- 1 x 10G/5G/2.5G/1G/100MBase-T RJ-45
Terminal Block
- 1 x Digital Output (Alarm Relay),
Relay output with current carrying capacity of 1A @ 24VDC
LED
- Power, Status
- TP Link/Act/Speed, F/O Link/Act/Speed
Power Requirement
- Input: 12~57 VDC
(2-pin removable terminal block or DC jack)
- Power Consumption
Device: full-load < 8W (27.3 BTU/h)
Hardware
- MAC Address Table: 4K
- Non-blocking Switching Fabric: 40Gbps
- Throughput @ 64Bytes: 29.76Mpps
- Jumbo Frame: 16K Bytes
- Packet Buffer: 8Mbit
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Environmental Condition
- Operation: -20˚C~60˚C
- Storage Temperature: -30˚C~70˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
VCCI/UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 71 x 94 x 26mm (W x D x H)
- Weight: 230 g
- Housing: Aluminum(Upper), Iron(Bottom), IP30
Topology

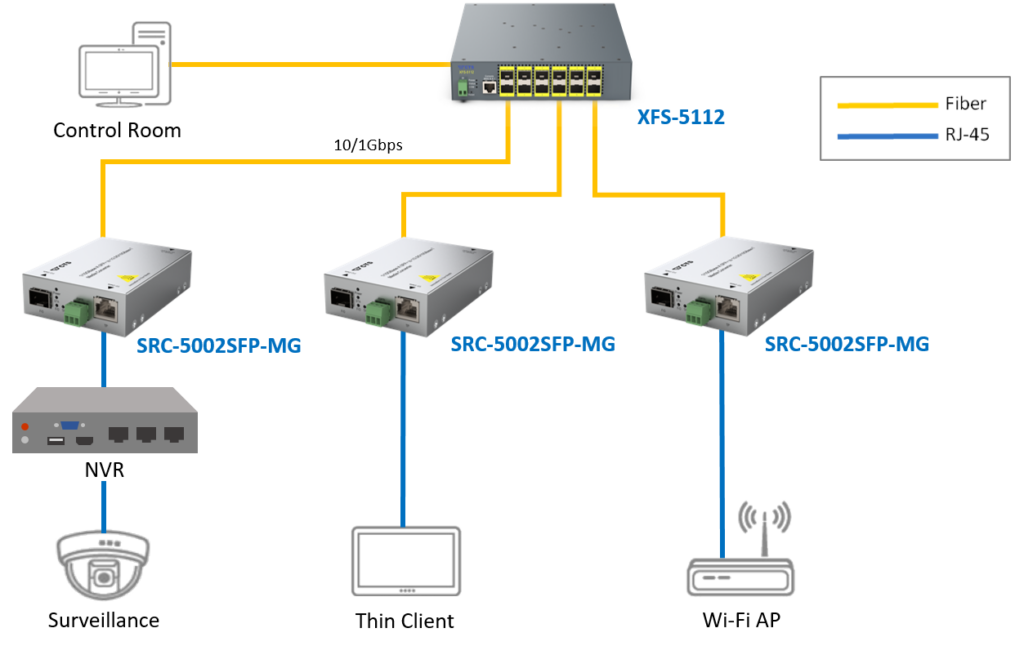

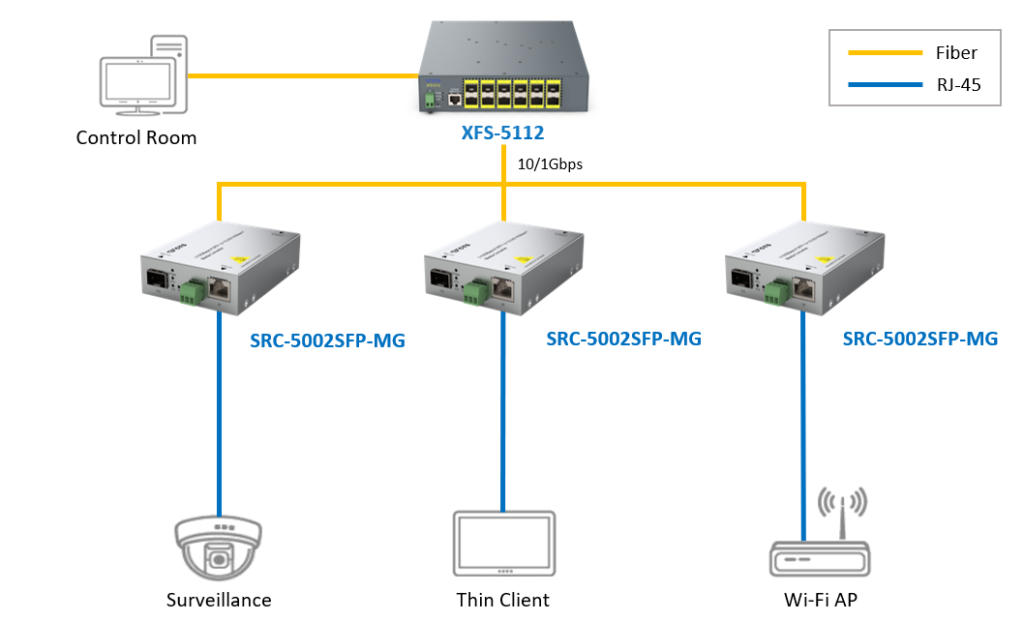

Application Diagram
Model
Model | Fiber Port | TP Port | Support Power Source | |||
Speed | Type | Slot | Speed (bps) | Port | ||
SRC-5002SFP-MG | 10G/1G | SFP+ | 1 | 10G/5G/2.5G/1G/100M | 1 | 1 x 12~57V DC with 2-pin removable terminal block |
SRC-5002SFP-MG(DC Jack) | 10G/1G | SFP+ | 1 | 10G/5G/2.5G/1G/100M | 1 | 1 x 12~57V DC |
Download
Model | Info | Version | Download file |
SRC-5002SFP-MG | Datasheet | A01 | |
SRC-5002SFP-MG | User's Manual (HW) | V1.1 | |
SRC/CVT Series | Slim type mounting Installation Guide | V1.1 |
