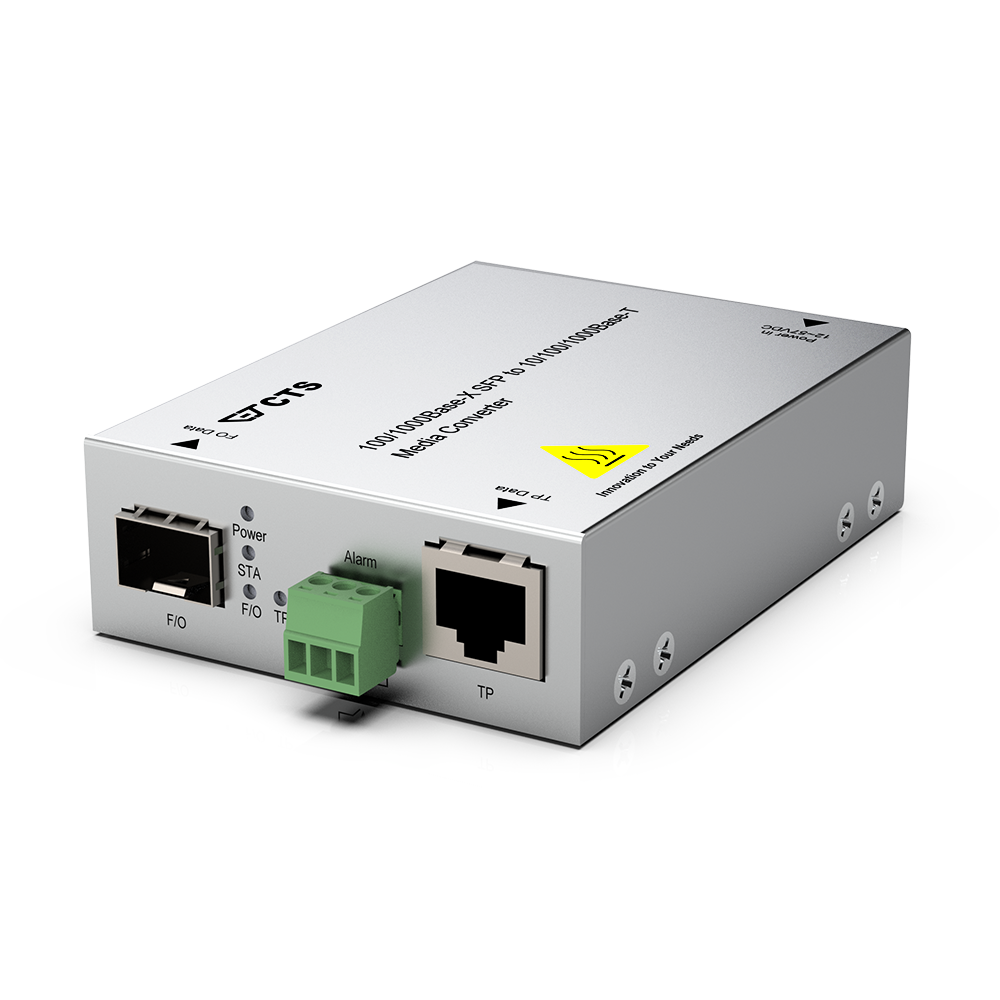

SRC-3002SFP-DO

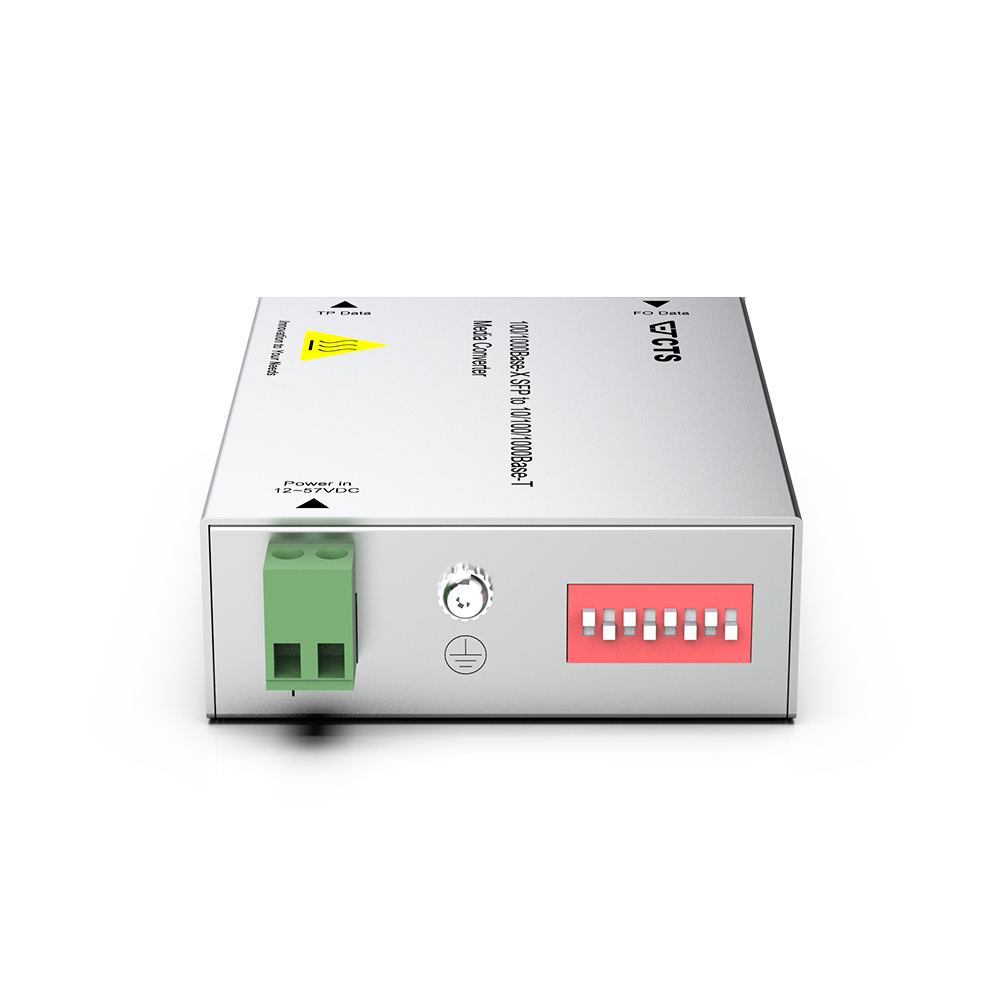

SRC-3002SFP-DO

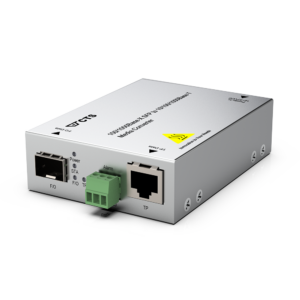

SRC-3002SFP-DO

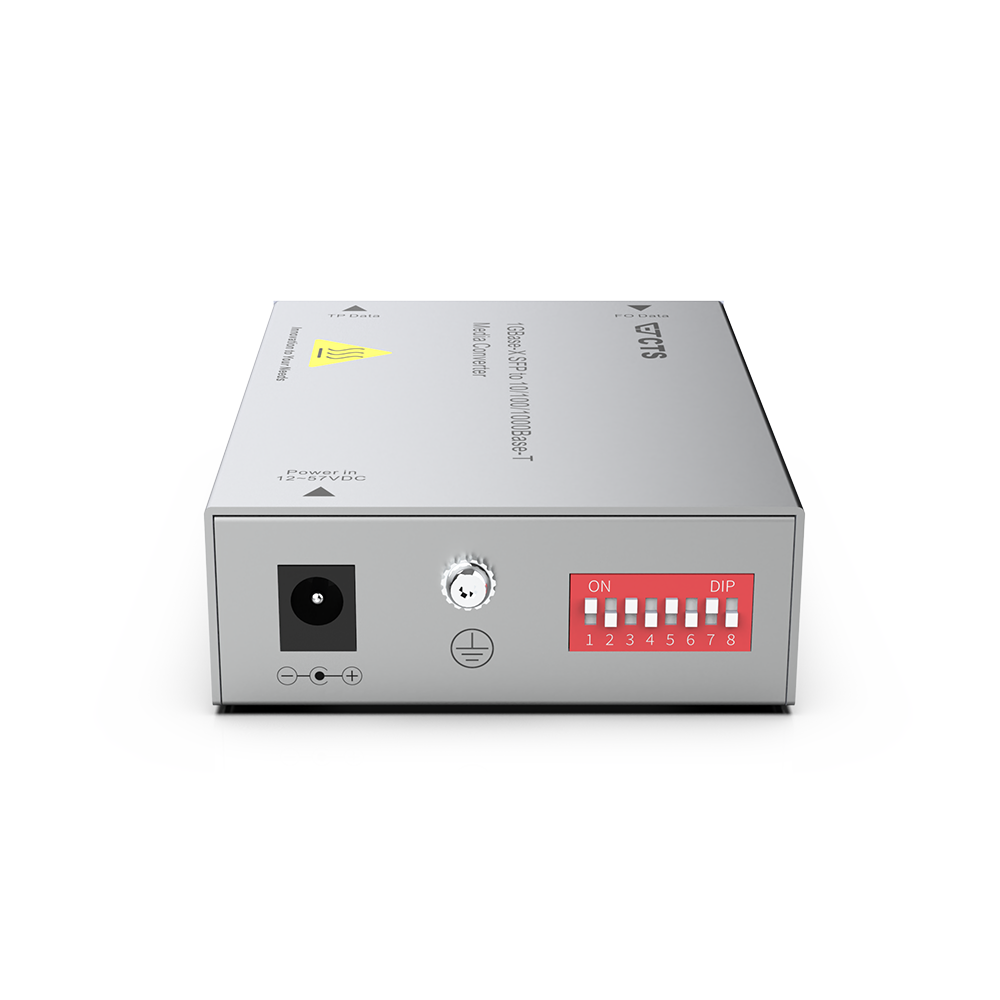

SRC-3002SFP-DO(DC Jack)

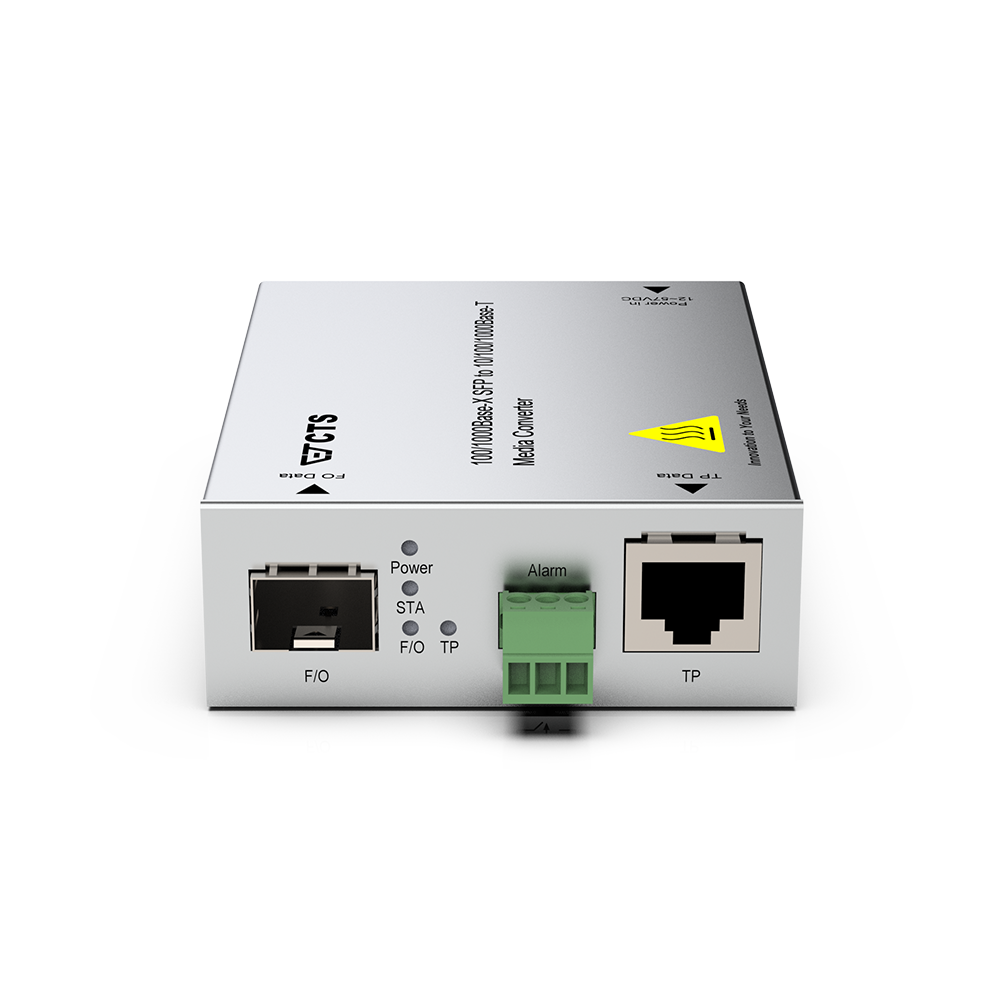

SRC-3002SFP-DO

1 x 100/1000Base-X SFP to
1 x 10/100/1000Base-T RJ-45 Rugged Media Converter

SRC-3002SFP-DO features a Gigabit RJ-45 port and a 100/1000Base-X SFP slot for fiber uplink. It includes a digital alarm relay output, DIP switch–controlled functions such as link alarm and data-diode mode, and supports stable performance in harsh environments. With versatile mounting options and robust surge protection, it’s ideal for connecting remote devices in surveillance, automation, and edge network applications.

Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 95%, Non-condensing

Dimension Size: 71 x 94 x 26 mm (W x D x H)
Weight: 190g

Features

With fiber uplink, alarm relay output, and flexible DIP switch settings, this device supports versatile deployment for remote connectivity applications. Its wide-temperature design ensures stable performance in harsh and demanding environments.

Link Alarm

Alert users to connectivity issues as copper and fiber optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection

Adjustable Fiber Speed

Adjust the fiber speed manually and compatible with more network application

DIN-rail Installation

Supports DIN-rail installation method

Wall-mounting Installation

Supports wall-mounting installation method

-40 ~ 75 degrees C

To boasts an extended temperature range, enabling operation from -40 to 75 degrees C

Hardware Overview

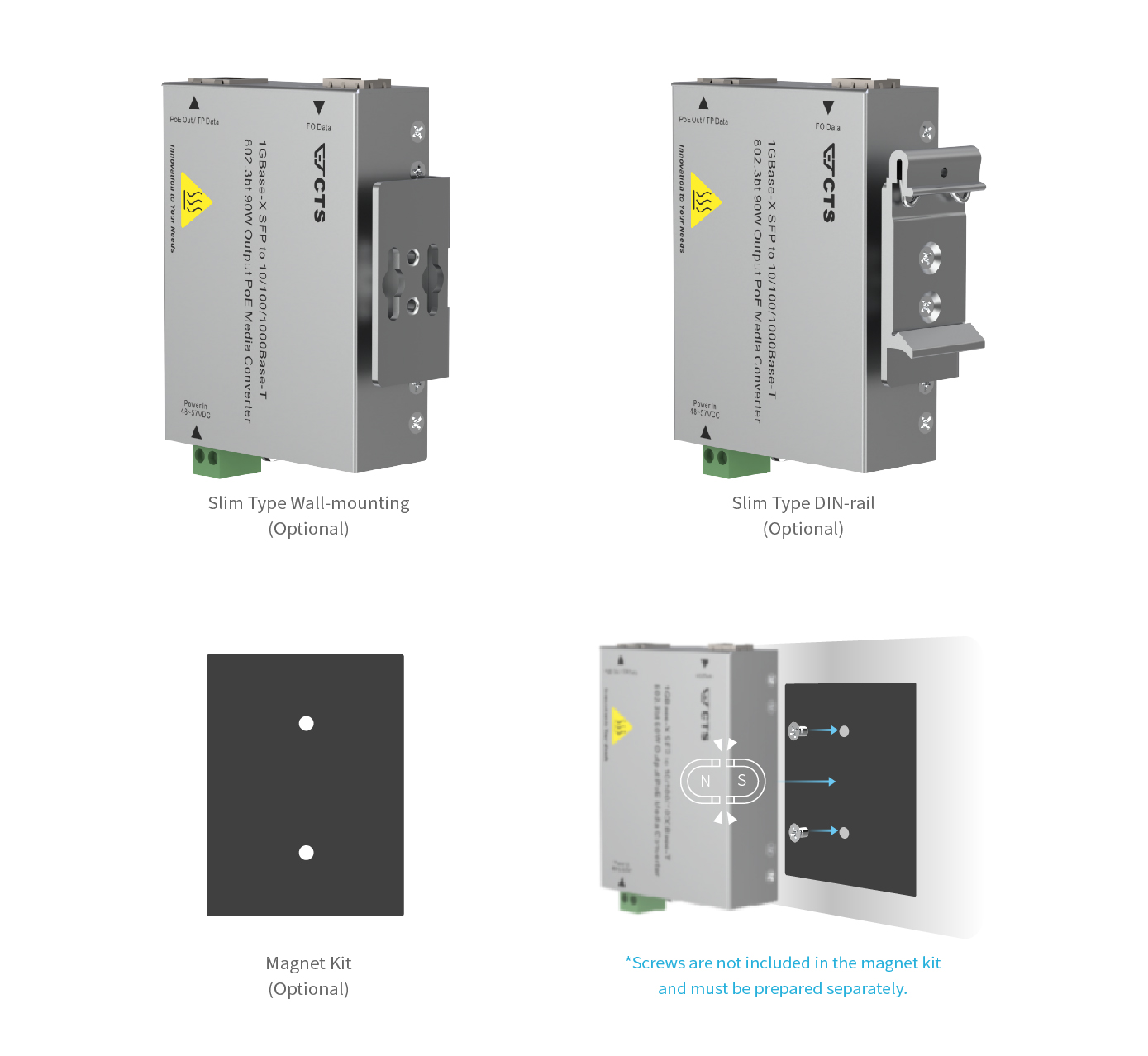

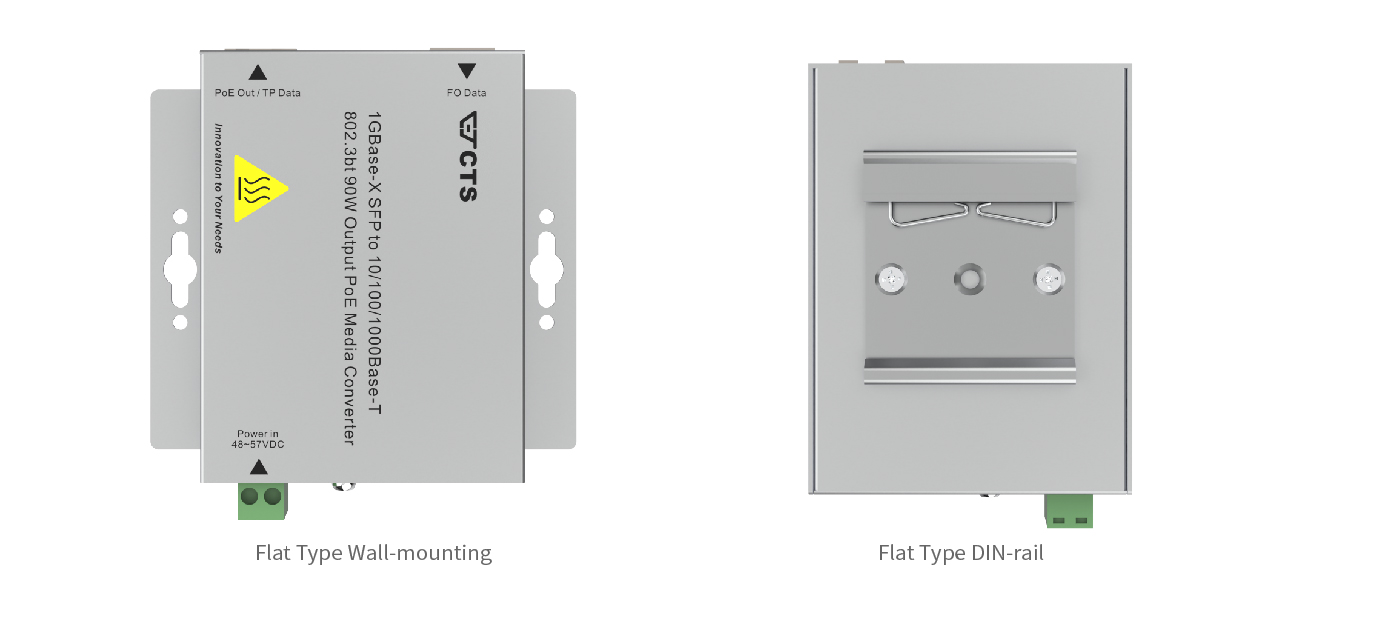

Accessory Installation Illustration​

NOTE: Illustration based on Model SRC-3002SFP-BT. Installation
appearance is the same across SRC series.

Specification

Interface

Fiber Port
  • 1 x 100/1000Base-X SFP Slot

RJ-45 Port

  • 1 x 10/100/1000Base-T RJ-45

Terminal Block

  • 1 x Digital Output (Alarm Relay),
    Relay output with current carrying capacity of 1A @ 24VDC

Hardware

  • MAC Address Table: 2K
  • Non-blocking Switching Fabric: 4Gbps
  • Throughput @ 64Bytes: 2.9Mpps
  • Jumbo Frame: 9K Bytes
  • Packet Buffer: 1Mbit
  • Store and Forward Switching Mechanism
  • Auto-Cross over for MDI/MDI-X in TP port
  • Auto-Negotiation in TP Port
  • Full/Half Duplex Mode Operation

LED

  • Power, Status,
  • TP Link/Act/Speed, F/O Link/Act/Speed







Environmental Condition

  • Operation: -40˚C~75˚C
  • Storage Temperature: -40˚C~85˚C
  • Humidity: 5%~95% RH, Non-Condensing

Power Requirement

  • DC Input: 12~57V
    (2-pin removable terminal block or DC jack)
  • Max. Power Consumption: 2.45W (8.36 BTU/h)





EMC/Safety

  • FCC Class A, CE
  • ESD
    – Air Discharge: +/-8kV
    – Contact Discharge: +/-4kV
  • EFT
    – DC Power: +/-0.5kV
  • Surge Protection: +/-3kV

Dimension & Weight

  • Size: 71 x 94 x 26mm (W x D x H)
  • Weight: 190 g
  • Housing: Aluminum(Upper), Iron(Bottom), IP30

Topology

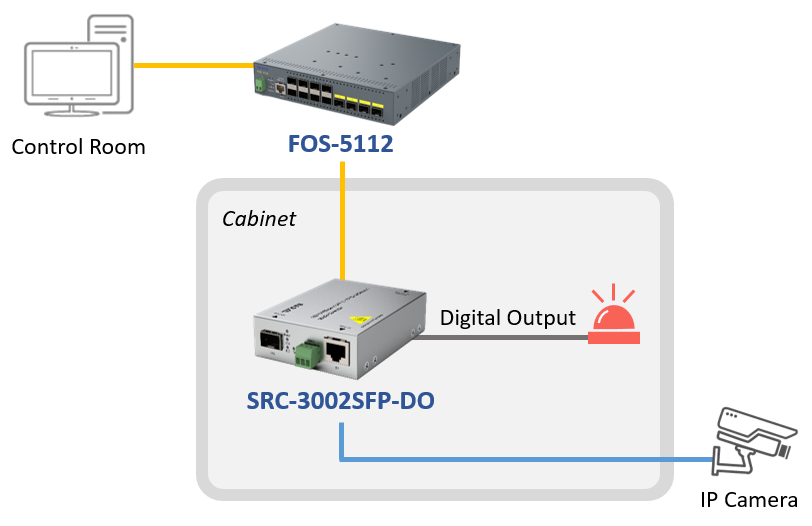

Application Diagram

Model

Model

Fiber Port

TP Port

Support Power Source

Speed
(Mbps)

Type

Slot

Speed
(Mbps)

Port

SRC-3002SFP-DO

100/1000

SFP

1

10/100/1000

1

1 x 12~57V DC with

2-pin removable terminal block

SRC-3002SFP-DO(DC Jack)

100/1000

SFP

1

10/100/1000

1

1 x 12~57V DC

Download

Model

Info

Version

Download file

SRC-3002SFP-DO

Datasheet

A01

SRC-3002SFP-DO

User's Manual (HW)

V1.0

SRC-3002SFP-DO

Slim type mounting
Installation Guide

V1.1
