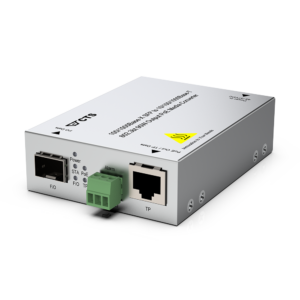

SRC-3002SFP-BT-DO

SRC-3002SFP-BT-DO

SRC-3002SFP-BT-DO

SRC-3002SFP-BT-DO

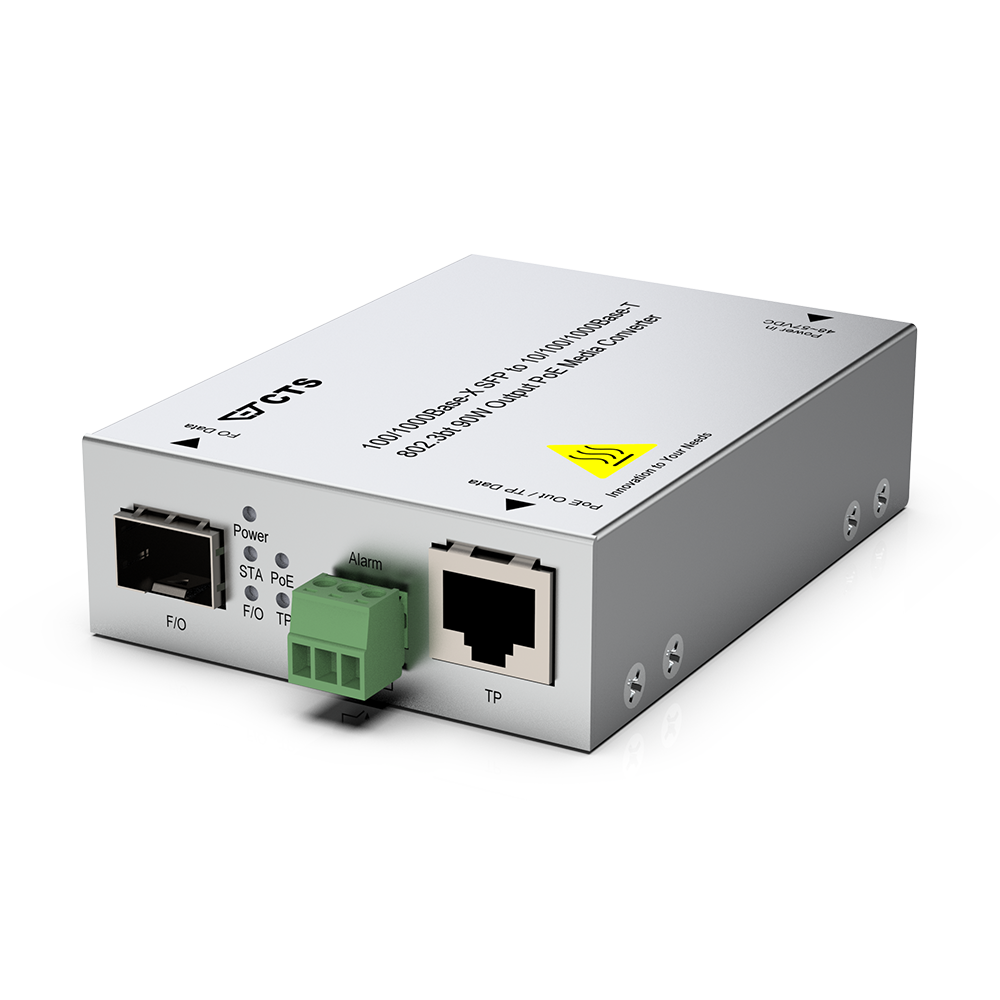

1 x 100/1000Base-X SFP to
1 x 10/100/1000Base-T RJ-45
with IEEE 802.3af/at/bt PoE Injector
Rugged Media Converter

The SRC-3002SFP-BT-DO features one RJ-45 port with up to 90W PoE++ output and one SFP fiber port. It supports flexible DIP switch settings, alarm relay output, and wide-temperature operation. With multiple mounting options, it’s ideal for surveillance, automation, and edge networking in harsh environments.

Environmental Condition Operation: -20˚C ~ 60˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 95%, Non-condensing

Dimension Size: 71 x 94 x 26 mm (W x D x H)
Weight: 220 g

Features

SRC-3002SFP-BT-DO is designed for reliable operation in demanding environments. It supports high-power PoE output, fiber uplink, and configurable settings—making it a practical solution for surveillance, automation, and remote device connectivity.

Link Alarm

Alert users to connectivity issues as copper and fiber optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection

Adjustable Fiber Speed

Adjust the fiber speed manually and compatible with more network application

DIN-rail Installation

Supports DIN-rail installation method

Wall-mounting Installation

Supports wall-mounting installation method

-20 ~ 60 degrees C

To boasts an extended temperature range, enabling operation from -20 to 60 degrees C

Auto PoE Power Off

It automatically deactivates PoE output in the event of a fiber link disruption

Power over Ethernet

Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations

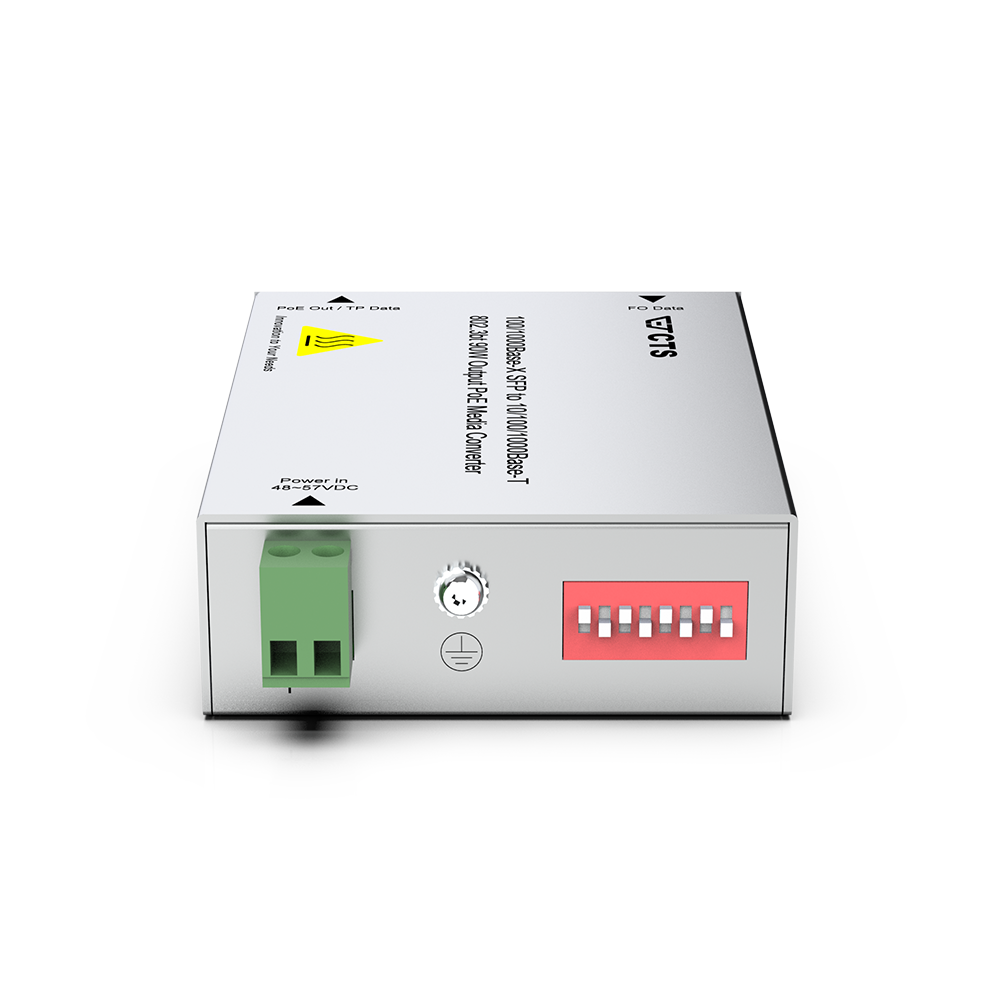

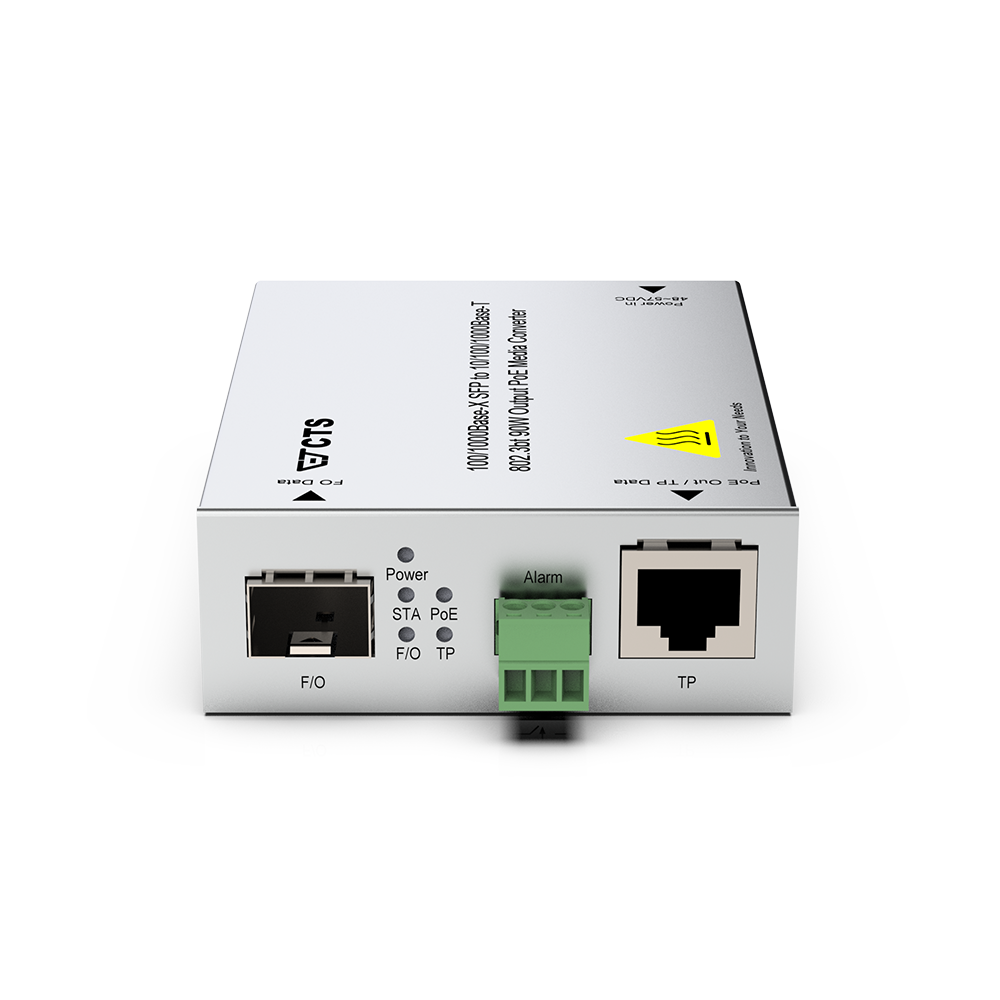

Hardware Overview

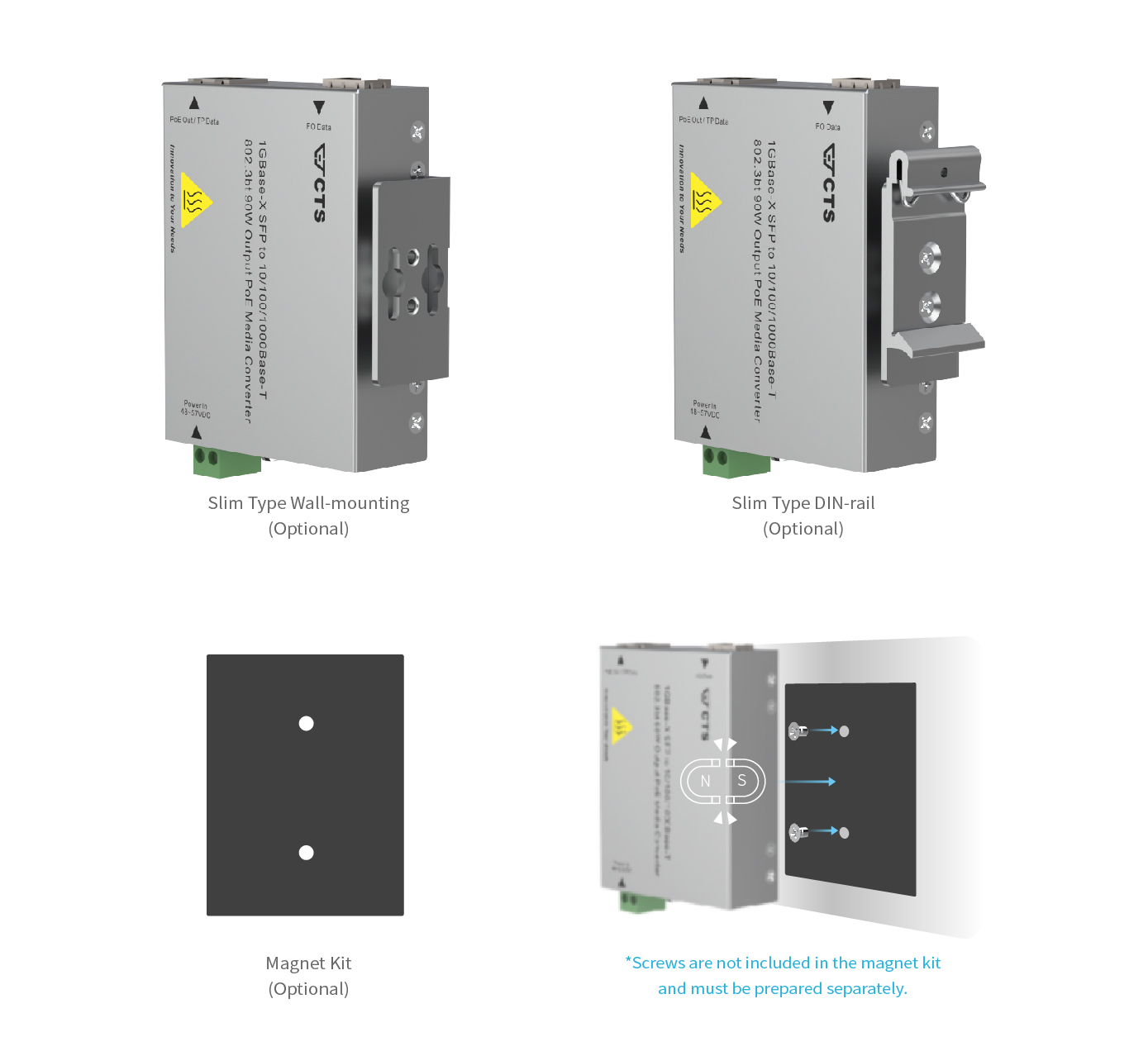

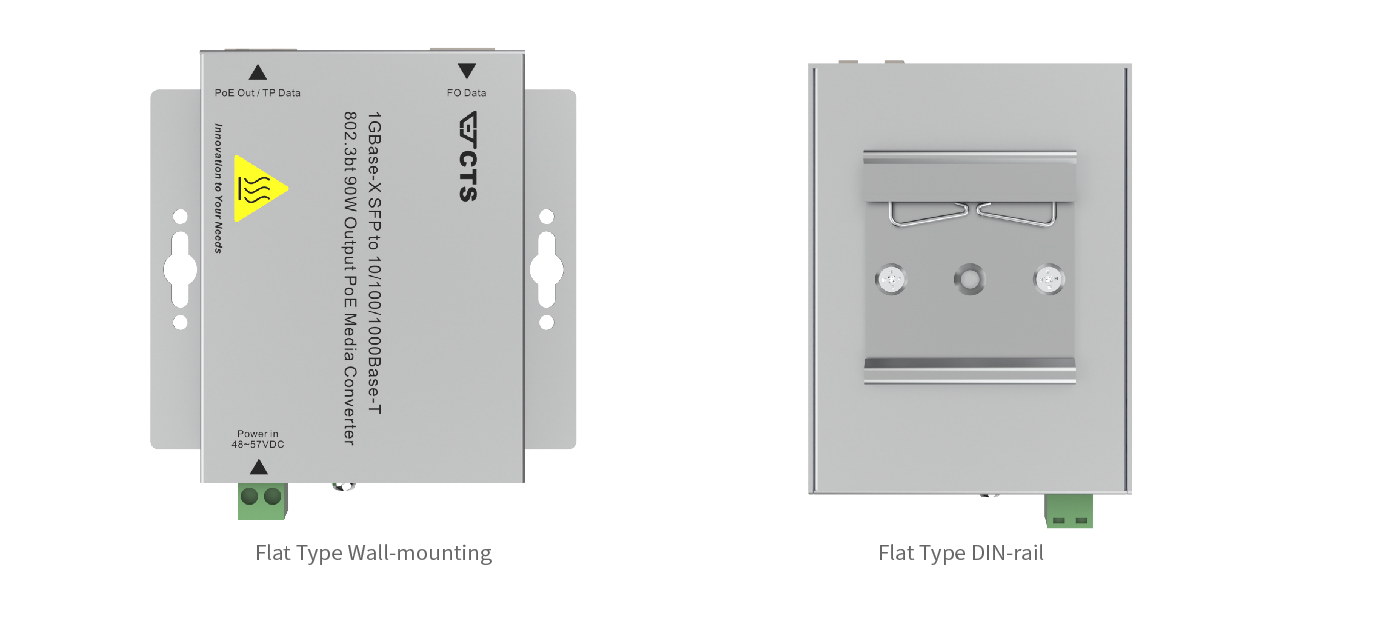

Accessory Installation Illustration​

NOTE: Illustration based on Model SRC-3002SFP-BT. Installation
appearance is the same across SRC series.

Specification

Interface

Fiber Port
  • 1 x 100/1000Base-X SFP Slot

RJ-45 Port

  • 1 x 10/100/1000Base-T RJ-45 with
    IEEE 802.3af/at/bt injector,
    up to 90W PoE power output

Terminal Block

  • 1 x Digital Output (Alarm Relay),
    Relay output with current carrying capacity of 1A @ 24VDC

Hardware

  • MAC Address Table: 2K
  • Non-blocking Switching Fabric: 4Gbps
  • Throughput @ 64Bytes: 2.9Mpps
  • Jumbo Frame: 9K Bytes
  • Packet Buffer: 1Mbit
  • Store and Forward Switching Mechanism
  • Auto-Cross over for MDI/MDI-X in TP port
  • Auto-Negotiation in TP Port
  • Full/Half Duplex Mode Operation


LED

  • Power, Status,
  • TP Link/Act/Speed, F/O Link/Act/Speed
  • PoE

Environmental Condition

  • Operation: -20˚C~60˚C
  • Storage Temperature: -40˚C~85˚C
  • Humidity: 5%~95% RH, Non-Condensing

Power Requirement

  • DC Input: 48~57V
    (2-pin removable terminal block)
  • Max. Power Consumption: 102W (348 BTU/h)

EMC/Safety

  • FCC Class A, CE
  • ESD
    – Air Discharge: +/-8kV
    – Contact Discharge: +/-4kV
  • EFT
    – DC Power: +/-0.5kV
  • Surge Protection: +/-3kV

Dimension & Weight

  • Size: 71 x 94 x 26mm (W x D x H)
  • Weight: 220 g
  • Housing: Aluminum(Upper), Iron(Bottom), IP30

Topology

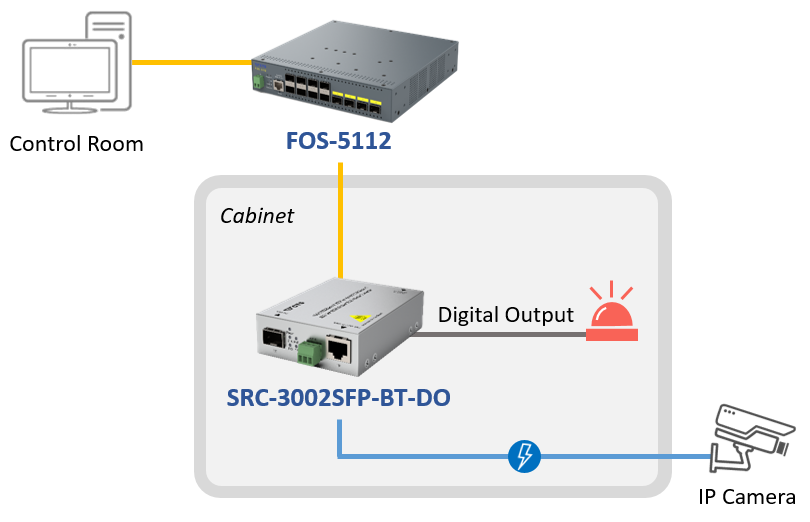

Application Diagram

Model

Model

Fiber Port

TP Port

Support Power Source

Speed
(Mbps)

Type

Slot

Speed

(Mbps)

Port

SRC-3002SFP-BT-DO

100/1000

SFP

1

10/100/1000

1

1 x 48~57V DC with

2-pin removable terminal block

Download

Model

Info

Version

Download file

SRC-3002SFP-BT-DO

Datasheet

A01

SRC-3002SFP-BT-DO

User's Manual (HW)

V1.0

SRC-3002SFP-BT-DO

Slim type mounting
Installation Guide

V1.1
