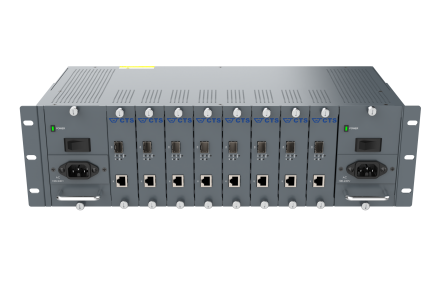

PCM-CHASSIS-08
8-Slot PoE Media Converter Chassis
The PCM-CHASSIS-08 works with the PCM-3002SFP-BT media converter module and PCM-CHASSIS-08-AC POWER power module, operating reliably from -10°C to 60°C. The PCM-3002SFP-BT converts 1000/100Base-X to 1000/100/10 speeds and supports IEEE 802.3bt PoE with up to 90W power output per port. With a maximum power budget of 240W, the chassis can support multiple high-power devices simultaneously.
Environmental Condition Operation: -10˚C~ 60˚C
Storage: -20˚C ~ 70˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 440 x 200 x 132 mm (W x D x H)
Weight: 4.25 Kg (Without power and converter module)
Features
The PCM-CHASSIS-08 provides power redundancy and a fanless design for reliable, quiet operation. Its link alarm alerts users when copper or fiber links go down, as both sides are interdependent. PoE support includes PSE auto power off, which disables power if the fiber link is disrupted to protect devices.
Power Redundancy
Transition to the other redundant power module if either of the power sources is down.
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, ensuring optimal performance and longevity.
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration.
Link Alarm
Alert users to connectivity issues as copper and fiber optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection.
Power over Ethernet
Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations.
Fanless Design
Designed without a built-in fan which oftentimes results in constant annoying buzzing sounds. The feature prevents the harmful effects of a disruptive environment.
PSE Auto Power Off
It automatically deactivates PoE output in the event of a fiber link disruption.
Data-diode
Ensuring one-way data flow, blocking unauthorized access and data leaks while allowing users to tailor the transfer direction for cyber security.
Hardware Overview
Specification
PCM-CHASSIS-08
Interface
Media Converter Slots
- 8 x Hot-swappable
Power Slots
- 2 x Hot-swappable
Power Requirement
- Provided by 2 x PCM-CHASSIS-08-AC POWER
- Power Consumption: full-load< 298W (1017 BTU/h)
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
VCCI/ UKCA / RCM
RoHS 2.0
Power over Ethernet
Max. PoE Budget
- 100V AC @ 60˚C : 200W
- 110V AC @ 60˚C : 230W
- 220~240V AC @ 60˚C : 240W
Dimension & Weight
- Size: 440 x 200 x 132mm (W x D x H)
- Weight: 4.25 Kg (without power and converter module)
Environment Condition
- Operation:-10˚C~60˚C
- Storage: -20˚C~70˚C
- Humidity: 5%~90% RH, Non-Condensing

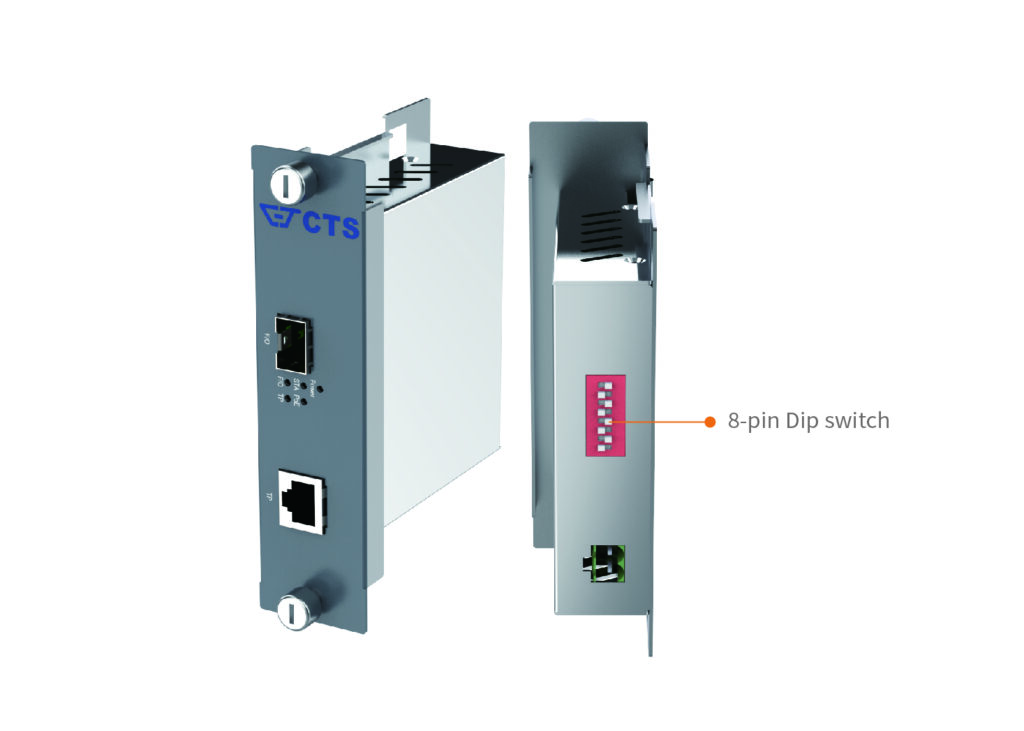

PCM-3002SFP-BT
Interface
Fiber Port
- 1 x 100/1000Base-X SFP
RJ-45 Port
- 1 x 10/100/1000Base-T RJ-45 with IEEE 802.3af/at/bt PoE injector, up to 90W output
Power over Ethernet
- Max. PoE output: 90W
Power Requirement
- Power Input: 54VDC
- Power Consumption: full-load < 95W (324 BTU/h)
Hardware
- MAC Address Table: 2K
- Non-blocking Switching Fabric: 4Gbps
- Throughput @ 64Bytes: 2.9Mpps
- Jumbo Frame: 9K Bytes
- Packet Buffer: 1Mbit
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Dimension & Weight
- Size: 34 x 94 x 132mm (W x D x H)
- Weight: 0.27 Kg
LED
- Power, Status, PoE
- TP Link/Act/Speed, F/O Link/Act/Speed
Environment Condition
- Operation: -10˚C~60˚C
- Storage: -20˚C~70˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
VCCI / UKCA / RCM
RoHS 2.0
PCM-CHASSIS-08-AC POWER
LED
- Power
Environment Condition
- Operation: -10˚C~60˚C
- Storage: -20˚C~70˚C
- Humidity: 5%~90% RH, Non-Condensing
Power Requirement
- Power Input: 100~240 VAC, 50/60Hz
Dimension & Weight
- Size: 75 x 181 x 132mm (W x D x H)
- Weight: 2.0 Kg
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
VCCI / UKCA / RCM
RoHS 2.0
Topology
Application Diagram
Model
Model | Remark |
PCM-CHASSIS-08 | Unmanaged chassis without power module and converter module |
PCM-CHASSIS-08-1A | PCM-CHASSIS-08 with 1 AC power module, without converter module |
PCM-CHASSIS-08-2A | PCM-CHASSIS-08 with 2 AC power module, without converter module |
PCM-3002SFP-BT | Media converter module for PCM-CHASSIS-08 |
PCM-CHASSIS-08-AC POWER | Power module for PCM-CHASSIS-08 |
Download
Model | Info | Version | Download file |
PCM-CHASSIS-08 PCM-3002SFP-BT | Datasheet | A02 | |
PCM-CHASSIS-08 | User's Manual (HW) | V1.0 |
