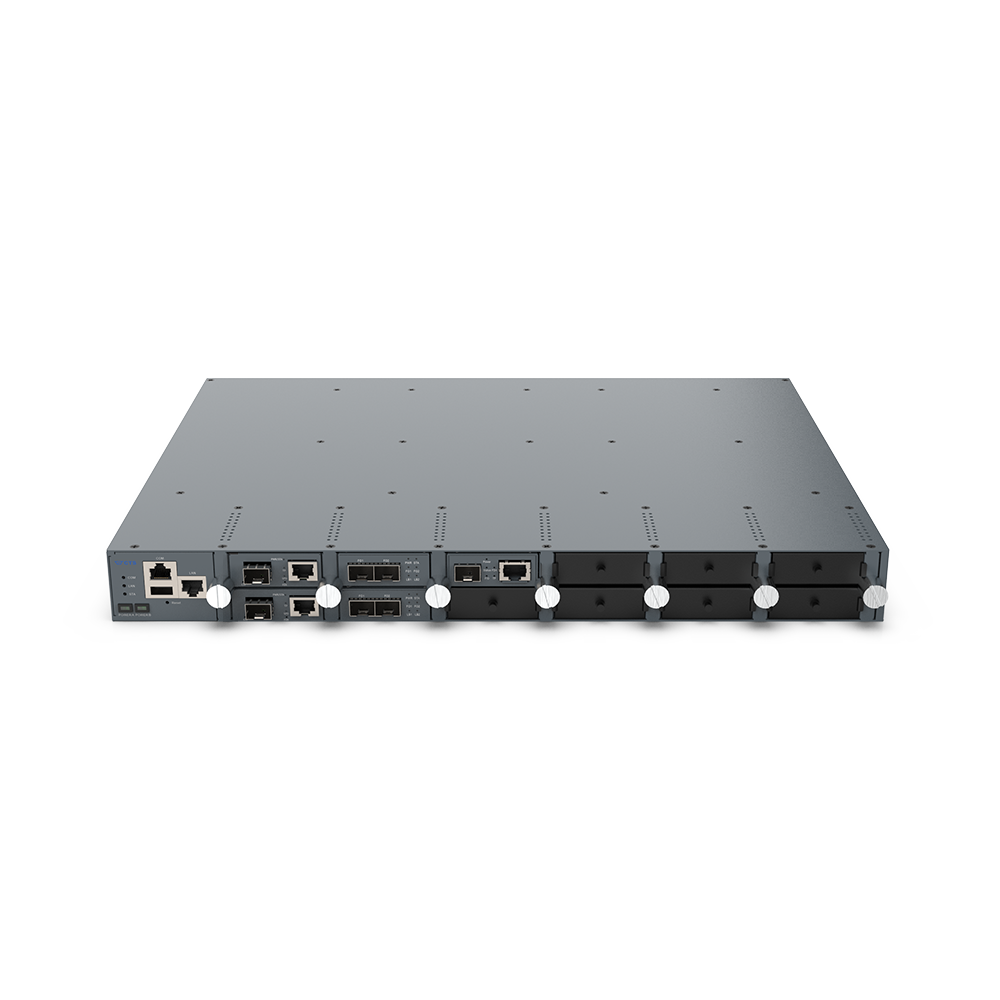

12 Slots Compact Media Converter Management Chassis for MCT Series Converter

MCT-RACK-12-MGM provides network administrator with the ability to configure and monitor the in-rack managed media converter. If installing with non-managed media converter, the power source of in-rack converter could be simply turn on or off via the management of MCT-RACK-12-MGM. Moreover, if media converter module supports IEEE 802.3ah (OAM) standard, MCT-RACK-12-MGM can also configure and monitor the status of remote media converter.

Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing

Dimension Size: 440 x 342 x 44 mm (W x D x H)
Weight: 5.7 Kg

Features

MCT-RACK-12-MGM offers SSHv2 and SNMPv3 security mechanism to protect users against anyone with malicious intent. SSHv2 and SNMPv3 encrypt the user password and relevant information to make it harder to be sniffed by other people.

The installation & operation procedures of MCT-RACK-12-MGM are simple & straight forward. The standard SNMP management and WEB-based management make MCT-RACK-12-MGM becomes the best choice of network administrator.

Power Redundancy

Transition to the other redundant power module if either of the power sources is down

Power Down Trap

Notify NOC when power is shut off and so save the cost of deploying human resources for troubleshooting

Dual Image

Safeguard against permanent system crash from firmware upgrade failures

Smart Fan

Smart Fans adjust fan speed based on temperature to control power usage and reduce noise, instead of just dissipating heat (HW ver.B only)

Specification

Interface

  • RJ-45 Port
    1 x 10/100Base-T RJ-45
  • Console Port
    1 x RS-232 to RJ-45 Serial Port
  • USB-A Host
    1 x for backup and restore
  • Terminal Block
    1 x Digital Input
    1 x Digital Output(Alarm Relay)
  • Media Converter Slots
    12 x Hot-swappable
  • Power Slots
    2 x Hot-swappable
  • Smart Fan (HW ver.B only)
    3 x Hot-swappable

LED

  • Power A
  • Power B
  • LAN
  • Status
  • COM

Power Requirement

  • AC Input: 100~240VAC, 50/60Hz, 1.4~0.7A
  • DC Input: 48VDC
  • Max. Power Consumption(Full load)
    – Hardware Version A: 26W (88.7 BTU/h)
    – Hardware Version B: 72W (245.6 BTU/h)

Hardware

  • Auto-Cross over for MDI/MDI-X in TP port
  • Auto-Negotiation in TP port
  • Power Redundancy
  • Plug & Play Design
  • Chassis Power Module Monitor
  • Chassis FAN Monitor
  • Temperature/Voltage Sensor (HW ver.B only)

Environmental Condition

  • Operation: 0˚C ~ 50˚C
  • Storage: -20˚C ~ 60˚C
  • Humidity: 5% ~ 90%, Non-condensing

Dimension & Weight

  • Size: 440 x 342 x 44 mm (W x D x H)
  • Weight (without Module installed): 5.7 Kg

EMC/Safety

  • CE, FCC Class A

Topology

MCT-RACK-12-MGM_Application diagram

Model

Model

Module Slot Amount

Power Source

Remark

Media Converter

Power Module

MCT-RACK-12-MGM

12

2

-

Chassis

MCT-RACK-12-MGM-1A

12

2

AC Power x 1

Chassis

MCT-RACK-12-MGM-2A

12

2

AC Power x 2

Chassis

MCT-RACK-12-MGM-1D

12

2

DC Power x 1

Chassis

MCT-RACK-12-MGM-2D

12

2

DC Power x 2

Chassis

MCT-RACK-12-MGM-1AD

12

2

AC Power x 1 and
DC Power x 1

Chassis

MCT-RACK-12-MGM-AC POWER

-

-

-

AC Power Module

MCT-RACK-12-MGM-DC POWER

-

-

-

DC Power Module
