IAC-3014

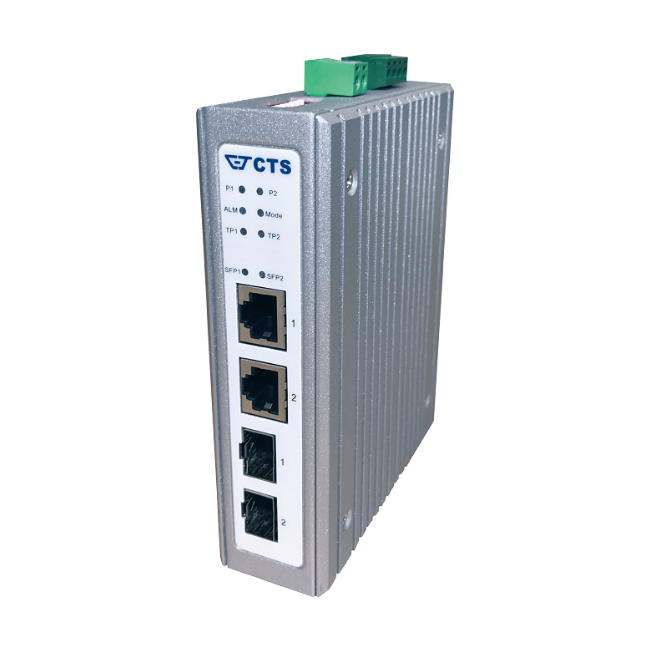

2-Port SFP to 2-Port RJ-45 Industrial Multi-Functional Media Converter

Connection Technology Systems (CTS) IAC-3014 media converter is a Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X media converter. The IAC-3014 media converter converts traditional twisted-pair RJ-45 cable into various fiber media including multi-mode, single mode with SC connectors or bi-directional WDM to fulfill different requirements depending on the deployment.

Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 90%, Non-condensing

Dimension Size: 36 x 110 x 135 mm (W x D x H)
Weight: 0.58 Kg
Housing: Aluminum, IP30

Features

2 Ports 100/1000Mbps SFP Dual Rate and 1 Port 10/100/1000Base-T with 802.3af/at and 1 Port 10/100/1000Base-T with 60W PoE++ Industrial Multi-Functional Media Converter

Dual Rate Fiber

Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product

Plug-and-play

No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration

Power Redundancy

Transition to the other redundant power module if either of the power sources is down

Lightning Protection

Protect ports from power surges due to lightning or improper electrical wiring

Specification

Interface

  • TP Port:
    2 x 10/100/1000Base-T RJ-45
  • F/O Port:
    2 x 100/1000Base-X SFP

LED

  • P1, P2
  • ALM, Mode
  • TP 1, TP 2
  • SFP 1, SFP 2

Power Requirement

  • DC Input:
    – Terminal Block x 1 with two power inputs
    – Input Voltage: 12 ~ 48VDC
  • Power Consumption: 4.8W (Max.)

Hardware

  • Store and Forward Switching Mechanism
  • Auto-negotiation in Copper and Fiber Port
  • MDI/MDIX Auto-crossover Supported
  • Support Fault Alarm Notification (Power, Ports)
  • Support Auto & Force Mode Configuration
  • Support Full/Half Duplex Mode
  • MAC Address Table : 2K
  • Memory Buffer: 128K Bytes
  • Relay Output
  • Surge Protection: 6KV (K.21)

Environmental Condition

  • Operating Temperature: -40°C ~ 75°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 5% ~ 90%, non-condensing

Dimension & Weight

  • Size: 36 x 110 x 135 mm (W x D x H)
  • Weight: 0.58 Kg
  • Housing: Aluminum, IP30

Topology

-Details You need to Know More-

– Provide 2 Gigabit RJ-45 Copper Ports & 2 SFP Ports 100FX or 1000BaseF(SX/LX/LH)
– Support 9K Jumbo Frames
Dual Power Input (12~48VDC)
Support 3 Operating Modes – Switch mode, Fiber Backup mode and Dual Media Converter mode
– Relay Output for Fault Alarm Notification (Power, Ports)
– Aluminum Housing

3 Operating Modes – Switch Mode / Dual Media Converter Mode / Fiber Backup Mode
Scenario 1:  Bridges/Tunnel

A long-distant area in need of a surveillance system can sometimes cause extra costs during the deployment.

CTS’ brand-new industrial converter IAC-3014, supports switch mode, which enables the converters to build a chain network easily and solves the problem.

IAC-3014-scenario-1
IAC-3014-scenario-2
Scenario 2:  Public Venues

With the uprising trend of mobile devices, more and more public venues provide free Wi-Fi broadband to satisfy their customers.At the same time the security of surveillance systems cannot be compromised.

CTS’ IAC-3014, supports dual media converter mode, which separates the traffic for different purposes (e.g., Public Wi-Fi and Surveillance).

Scenario 3:   Highly Secured Places

AT highly secured checkpoints, malfunction of the surveillance systems might cause severe damage beyond imagination.

CTS’ IAC-3014 supports fiber backup mode, which enables the system to work smoothly if a fiber cable link is down.

IAC-3014-scenario-3

Model

Model

Fiber Port

TP Port

Power Source

Speed
(Mbps)

Type

Port

Speed
(Mbps)

Port

IAC-3014

100/1000

SFP

2

10/100/1000

2

Terminal Block with
2 Power Input

Download

Model

Info

Version

Download file

IAC-3014

Datasheet

A04

IAC-3014

User's Manual (HW)

V1.2
