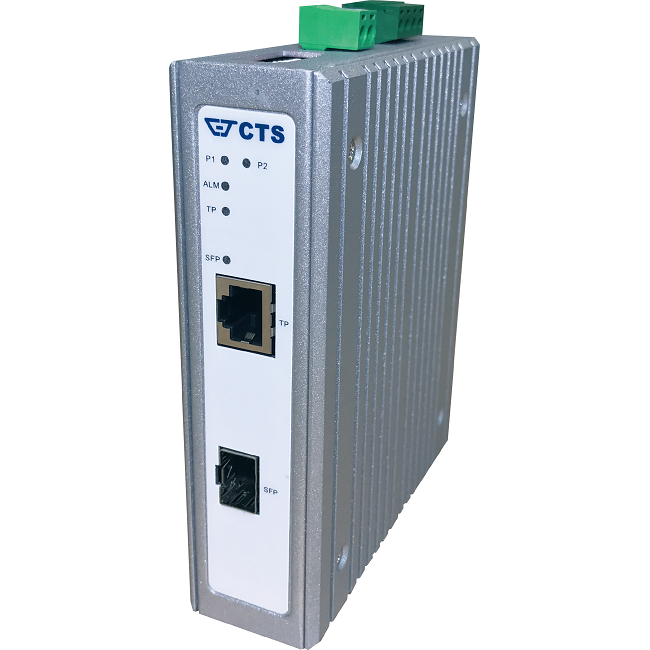

1 Port 100/1000Mbps SFP Dual Rate and 1 Port 10/100/1000Base-T Industrial Media Converter

Connection Technology Systems (CTS) IAC-3012 media converter is a Gigabit Ethernet 10/100/1000 Base-T to 100/1000Base-X media converter. The IAC-3012 media converter converts traditional twisted-pair RJ-45 cable into various fiber media including multi-mode, single-mode with SC connectors or bi-directional WDM to fulfill different requirements depending on the deployment.

Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 90%, Non-condensing

Dimension Size: 36 x 110 x 135 mm (W x D x H)
Weight: 0.56 Kg
Housing: Aluminum, IP30

Features

2 Ports 100/1000Mbps SFP Dual Rate and 1 Port 10/100/1000Base-T with 802.3af/at and 1 Port 10/100/1000Base-T with 60W PoE++ Industrial Multi-Functional Media Converter

Dual Rate Fiber

Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product

Plug-and-play

No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration

Power Redundancy

Transition to the other redundant power module if either of the power sources is down

Lightning Protection

Protect ports from power surges due to lightning or improper electrical wiring

Specification

Interface

  • TP Port:
    1 x 10/100/1000Base-T RJ-45
  • F/O Port:
    1 x 100/1000Base-X SFP

LED

  • P1
  • P2
  • ALM
  • TP
  • SFP

Power Requirement

  • DC Input:
    – Terminal Block x 1 with two power inputs
    – Input Voltage: 12 ~ 48VDC
  • Power Consumption: 3.4W (Max.)

Hardware

  • Store and Forward Switching Mechanism
  • Auto-negotiation in Copper and Fiber Port
  • MDI/MDIX Auto-crossover Supported
  • Support Fault Alarm Notification (Power, Port)
  • Support Auto & Force Mode Configuration
  • Support Full/Half Duplex Mode
  • MAC Address Table : 2K
  • Memory Buffer: 128K Bytes
  • Relay Output
  • Surge Protection: 6KV (K.21)

Environmental Condition

  • Operating Temperature: -40°C ~ 75°C
  • Storage Temperature: -40°C ~ 85°C
  • Humidity: 5% ~ 90%, non-condensing

Dimension & Weight

  • Size: 36 x 110 x 135 mm (W x D x H)
  • Weight: 0.56 Kg
  • Housing: Aluminum, IP30

Topology

-Details You need to Know More-

– Provide 1 Gigabit RJ-45 Copper Port to 1 SFP Port 100FX or 1000BaseF(SX/LX/LH)
– Support 9K Jumbo Frames
Dual Power Input (12~48VDC)
– Relay Output for Fault Alarm Notification (Power, Port)
– Aluminum Housing

Application Diagram

IAC-3012 application

Model

Model

Fiber Port

TP Port

Power Source

Speed
(Mbps)

Type

Port

Speed
(Mbps)

Port

IAC-3012

100/1000

SFP

1

10/100/1000

1

Terminal Block with
2 Power Input

Download

Model

Info

Version

Download file

IAC-3012

Datasheet

A04

IAC-3012

User's Manual (HW)

V1.2
