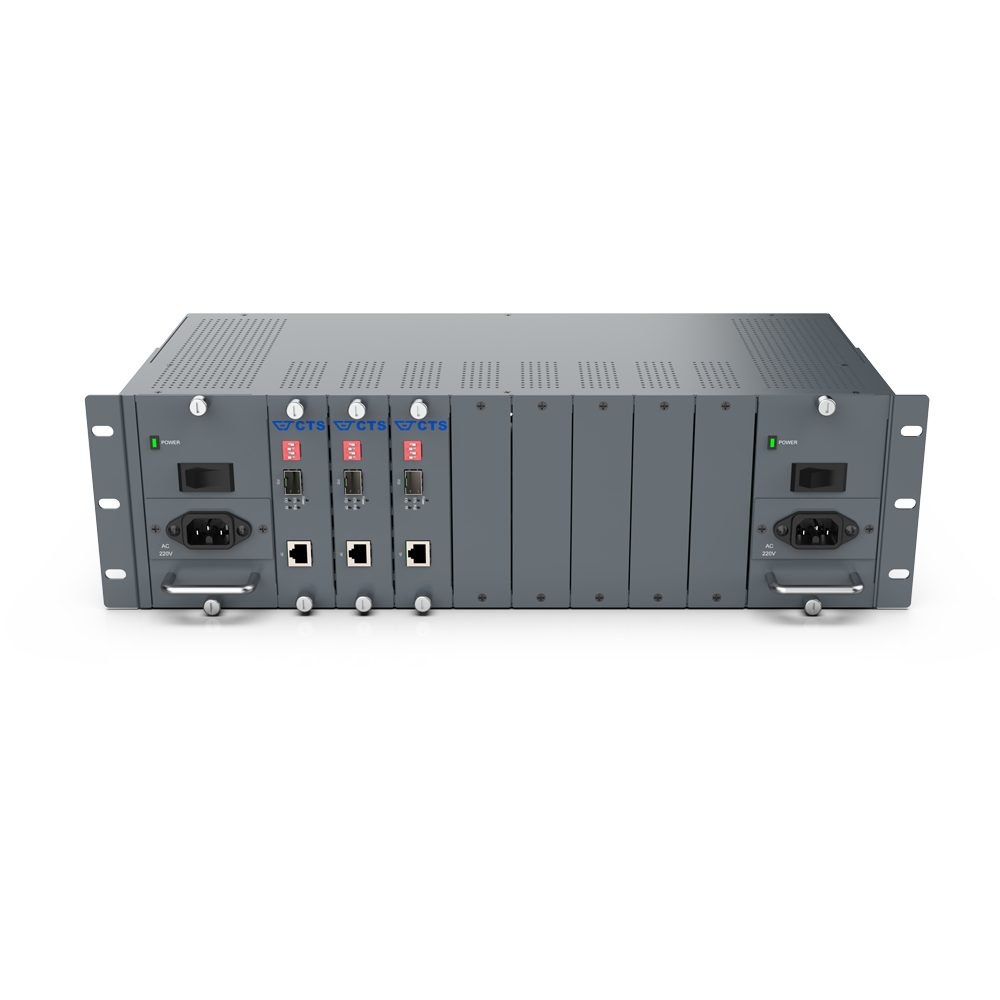

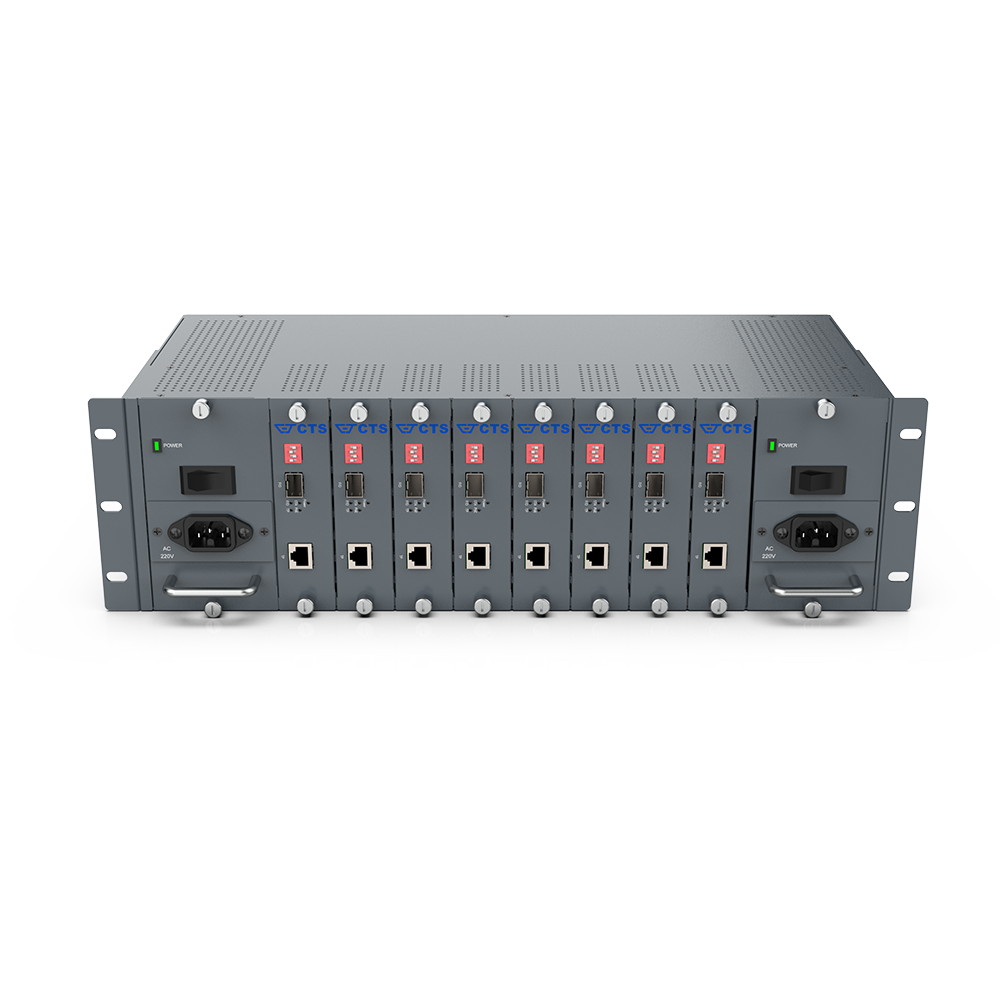

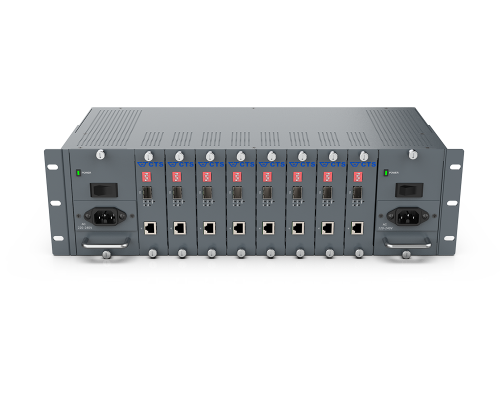

CPC-CHASSIS-08-II
(Project only)
8-Slot PoE Media Converter Chassis
The CPC-CHASSIS-08-II works with the CPC-3002SFP-II-BT media converter module and CPC-PWR-AC-II power module, operating reliably from 0°C to 70°C. The CPC-3002SFP-II-BT converts 1000/100Base-X to 1000/100/10 speeds and supports IEEE 802.3bt PoE with up to 90W power output per port. With a total power budget of 300W, the chassis can support multiple high-power devices simultaneously.
Environmental Condition Operation: 0˚C ~ 70˚C
Storage: -20˚C ~ 85˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 440 x 200 x 132 mm (W x D x H)
Weight: 4.25 Kg (Without power and converter module)
Features
SRC-3002SFP stands out as a robust media converter, designed to operate efficiently within a broad temperature range spanning from -40 to 75˚C.
Its functionality extends to converting 100/1000Base-X SFP to a 10/100/1000Base-T RJ-45 port, ensuring full compliance with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
Power Redundancy
Transition to the other redundant power module if either of the power sources is down.
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, ensuring optimal performance and longevity.
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration.
Link Alarm
Alert users to connectivity issues as copper and fiber optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection
Power over Ethernet
Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations.
Fanless Design
Designed without a built-in fan which oftentimes results in constant annoying buzzing sounds. The feature prevents the harmful effects of a disruptive environment.
PSE Auto Power Off
It automatically deactivates PoE output in the event of a fiber link disruption.

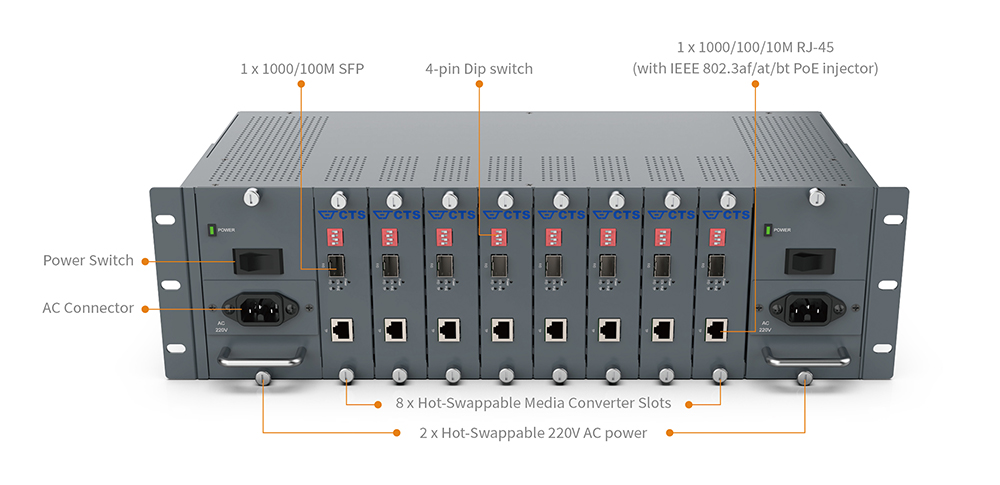

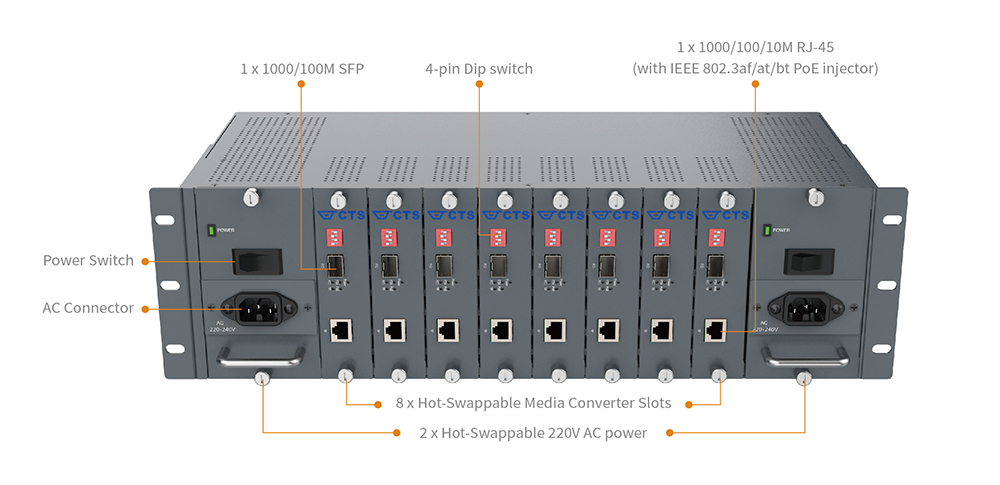

Hardware Overview
Specification
CPC-CHASSIS-08-II
Interface
Media Converter Slots
- 8 x Hot-swappable
Power Slots
- 2 x Hot-swappable
Power Requirement
- Provided by 2 x CPC-PWR-AC-II
- Power Consumption: full-load< 340W (1160 BTU/h)
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
CB(TUV) / UKCA / RCM
RoHS 2.0
Power over Ethernet
- Total PoE Budget: 300W
Dimension & Weight
- Size: 440 x 200 x 132mm (W x D x H)
- Weight: 4.25 Kg (without power and converter module)
Environment Condition
- Operation: 0˚C~70˚C
- Storage: -20˚C~85˚C
- Humidity: 5%~90% RH, Non-Condensing

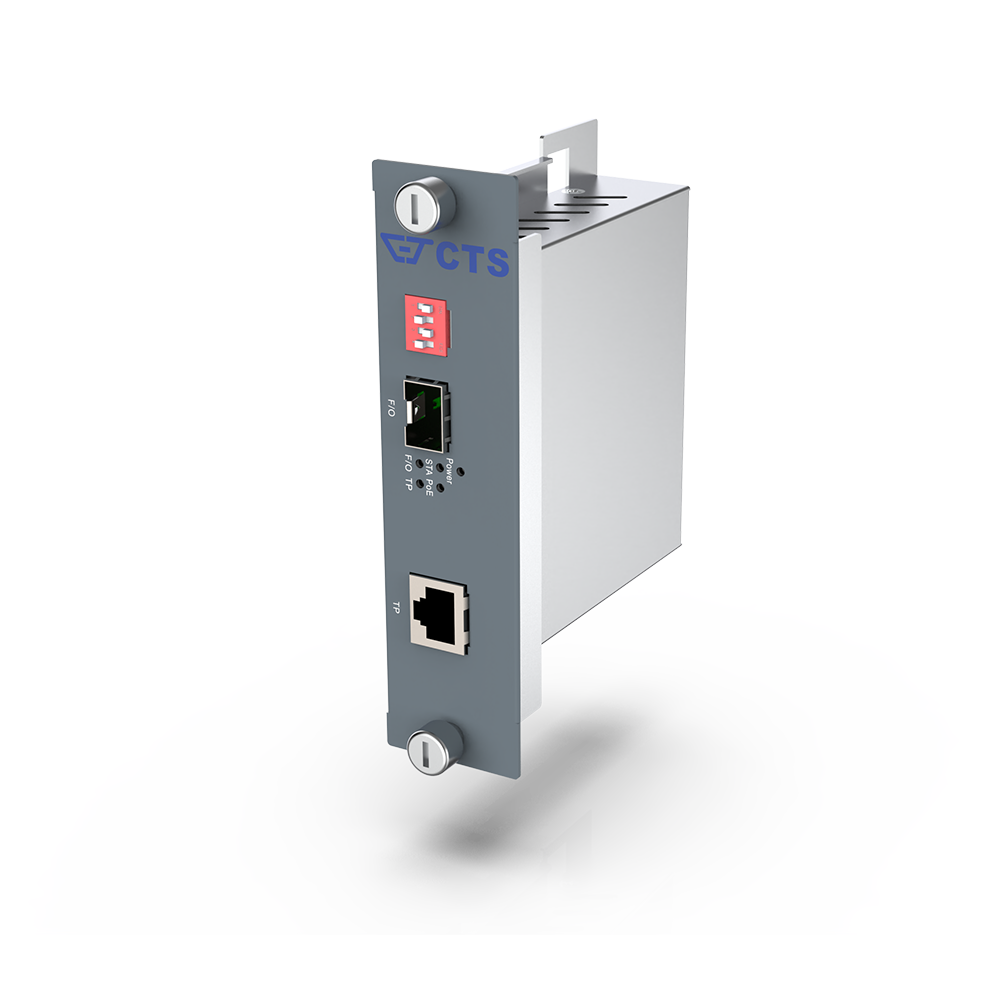

CPC-3002SFP-II-BT
Interface
Fiber Port
- 1 x 100/1000Base-X SFP
RJ-45 Port
- 1 x 10/100/1000Base-T RJ-45 with IEEE 802.3af/at/bt PoE injector, up to 90W output
Power over Ethernet
- Max. PoE output: 90W
Power Requirement
- Power Input: 54VDC
- Power Consumption: full-load < 95W (324 BTU/h)
Hardware
- MAC Address Table: 2K
- Non-blocking Switching Fabric: 4Gbps
- Throughput @ 64Bytes: 2.9Mpps
- Jumbo Frame: 9K Bytes
- Packet Buffer: 1Mbit
- Store and Forward Switching Mechanism
- Auto-Cross over for MDI/MDI-X in TP port
- Auto-Negotiation in TP Port
- Full/Half Duplex Mode Operation
Dimension & Weight
- Size: 34 x 94 x 132mm (W x D x H)
- Weight: 0.27 Kg
LED
- Power, Status, PoE
- TP Link/Act/Speed, F/O Link/Act/Speed
Environment Condition
- Operation: 0˚C~70˚C
- Storage: -20˚C~85˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
CB(TUV) / UKCA / RCM
RoHS 2.0

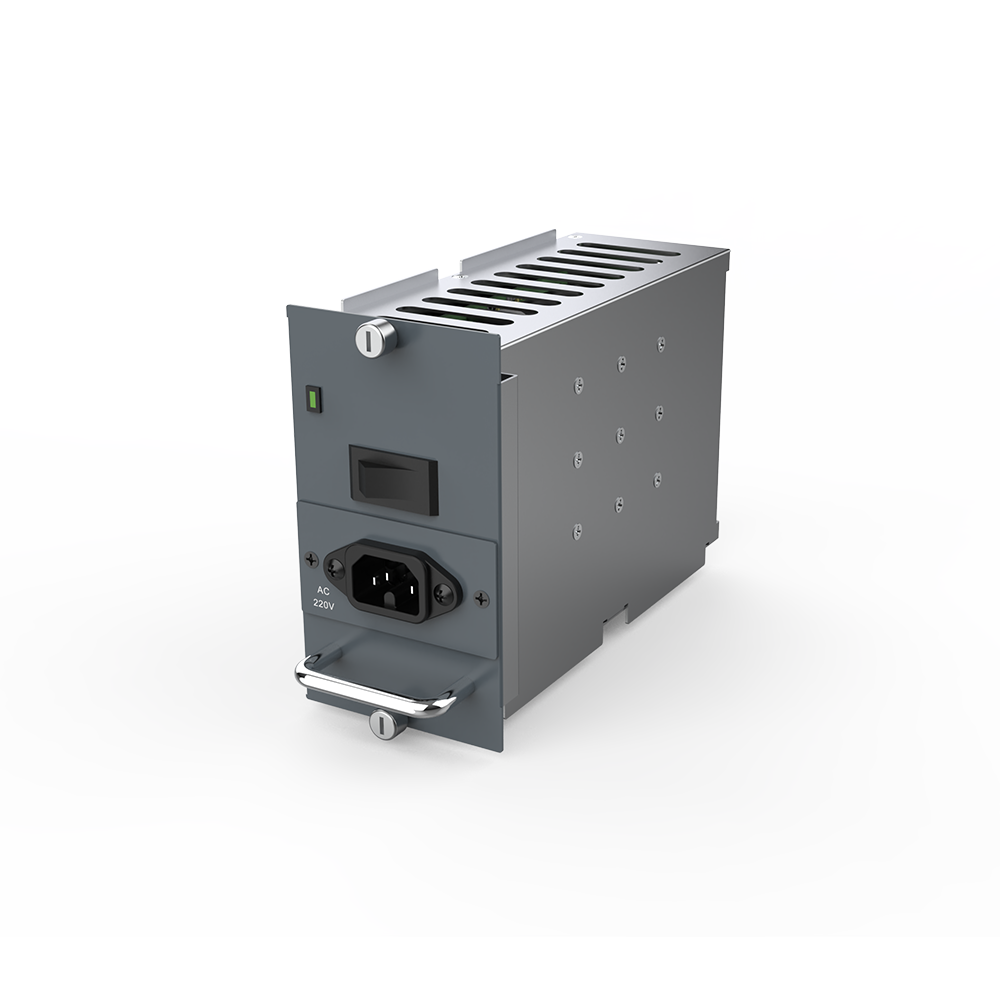

CPC-PWR-AC-II
LED
- Power
Environment Condition
- Operation: 0˚C~70˚C
- Storage: -20˚C~85˚C
- Humidity: 5%~90% RH, Non-Condensing
Power Requirement
- Power Input: 220 VAC, 50/60Hz
Dimension & Weight
- Size: 75 x 181 x 132mm (W x D x H)
- Weight: 2.0 Kg
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
CB(TUV) / UKCA / RCM
RoHS 2.0
Topology
Application Diagram
Model
Model | Remark |
CPC-CHASSIS-08-II | Chassis without Converter module and Power Module |
CPC-3002SFP-II-BT | Media Converter Module for CPC-CHASSIS-08-II |
CPC-PWR-AC-II | Power Module for CPC-CHASSIS-08-II |
Download
Model | Info | Version | Download file |
CPC-CHASSIS-08-II CPC-3002SFP-II-BT | Datasheet | A03 | |
CPC-CHASSIS-08-II | User's Manual (HW) | V1.0 |
