XFS-5112
12 x 10G/1GBase-X SFP+ Layer 2+ Managed Switch
The XFS-5112 boosts your network with 12 x 10/1G SFP+ ports, delivering fast and stable connectivity. Smart fan design and low power consumption ensure quiet, energy-efficient operation, while simple management via Web, SNMP, or CLI keeps maintenance effortless. Perfect for enterprise and high-density environments.
Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 210 x 230 x 44 mm (W x D x H)
Weight: 1.7 Kg
Features
XFS-5112 supports VLAN, QoS, STP/RSTP/MSTP, link aggregation, and IGMP/MLD snooping for flexible and reliable Layer 2 networking. Advanced security includes 802.1x, IP Source Guard, Port Isolation, and DHCP Snooping, while energy-efficient design and smart fan ensure stable, low-power operation.
10G
Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike.
Power Down Trap
Notify NOC when power is shut off, thus saving the cost of deploying human resources for troubleshooting.
Power Redundancy
Transition to the other redundant power module if either of the power sources is down.
DHCP Auto Provisioning
Automatically upgrade the firmware and configuration from the DHCP server to save maintenance costs.
Loop Detection
Automatically prevent the switching loops that cause network congestion and failures, plus keeping your service steadily running as planned.
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, ensuring optimal performance and longevity.
Dual Image
Safeguard against permanent system crash from firmware upgrade failures.
Flexible IPTV Deployment
Designed with rich functions in facilitating multimedia streaming and providing a stable IPTV service with high quality.
IPv4/IPv6 Dual Stack
Able to run IPv4 and IPv6 in parallel and be interoperable with other IPv4 / IPv6 / dual-stacked devices, which enables IPv6 management, IPv6 packet forwarding, and MLD v1/v2 Snooping.
Multicast VLAN Registration
Reduce the bandwidth required to distribute IPTV multicast streams by means of sharing single traffic across different VLANs.
Intelligent Diagnostics
Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters.
Smart Fan
Smart Fans adjust fan speed based on temperature to control power usage and reduce noise, instead of just dissipating heat.

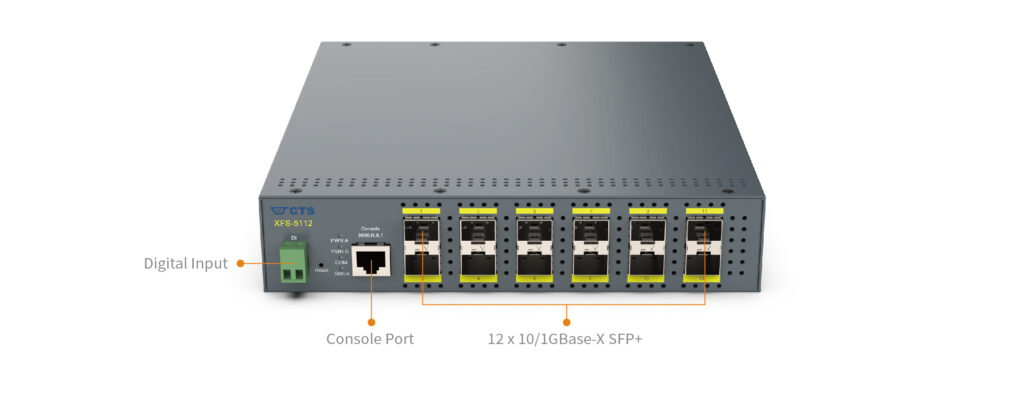

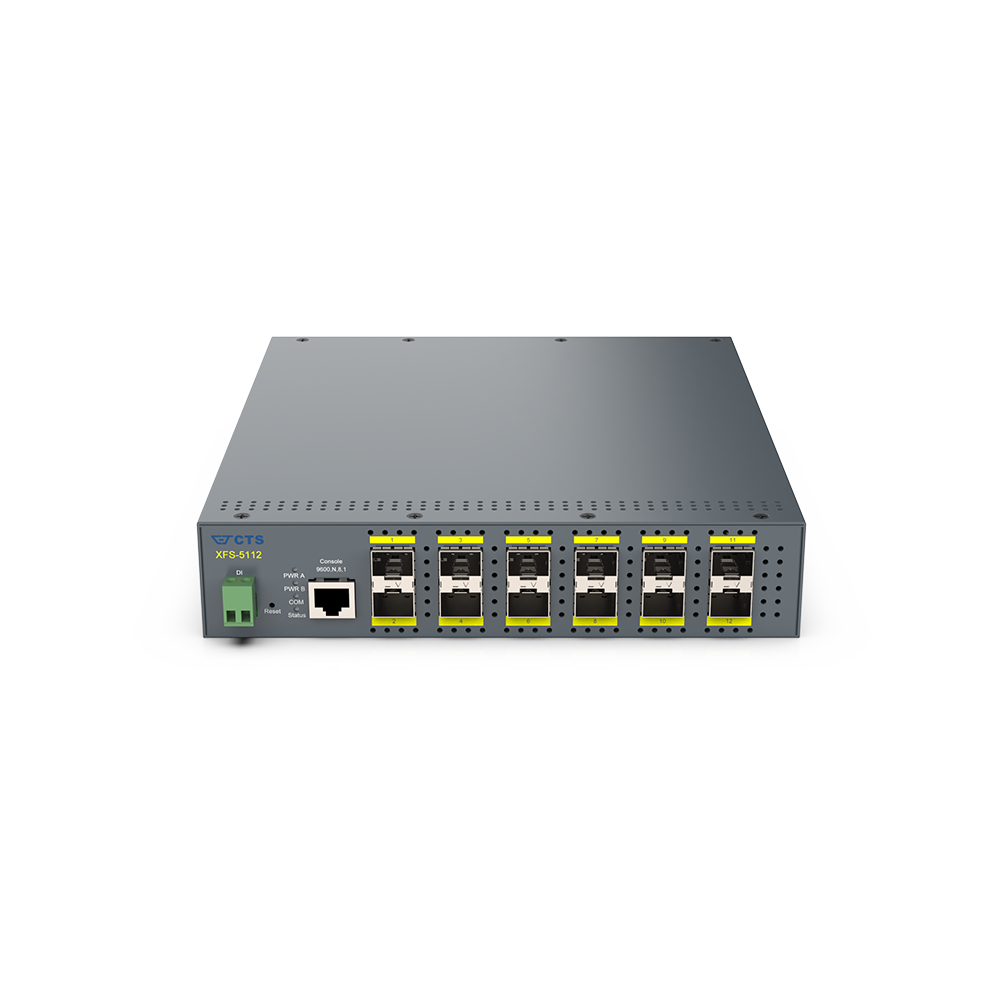

Hardware Overview
Specification
Interface
- 12 x 10/1GBase-X SFP+ Slot
Console Port
- 1 x RS-232 to RJ-45 Serial Port
Terminal Block
- 1 x Digital Input (Dry Contact)
LED
- Power, Status, COM, Link/Act/Speed
Power Requirement
- AC Input: 100~240V, 50/60Hz, 0.3~0.1A
- DC Input: 48V, 0.6A
- External DC Input: 12V, 3.33A (R7B adapter)
- Power Consumption: full-load < 28.8W (98 BTU/h)
Hardware
- MAC Address Table: 32K
- Non-blocking Switching Fabric: 240Gbps
- Throughput @ 64Bytes: 178.5Mpps
- Jumbo Frame: 12K Bytes
- Packet Buffer: 16Mbit
- Store and Forward Switching Mechanism
Environmental Condition
- Operation: 0˚C~50˚C
- Storage Temperature: -20˚C~60˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
- ESD
– Air Discharge: +/-8kV
– Contact Discharge: +/-4kV - EFT
– AC Input: +/-1kV
– DC Input: +/-0.5kV - Surge Protection
– AC Input: +/-2kV
– DC Input: +/-0.5kV
VCCI/UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 210 x 230 x 44mm (W x D x H)
- Weight: 1.7 Kg
Topology

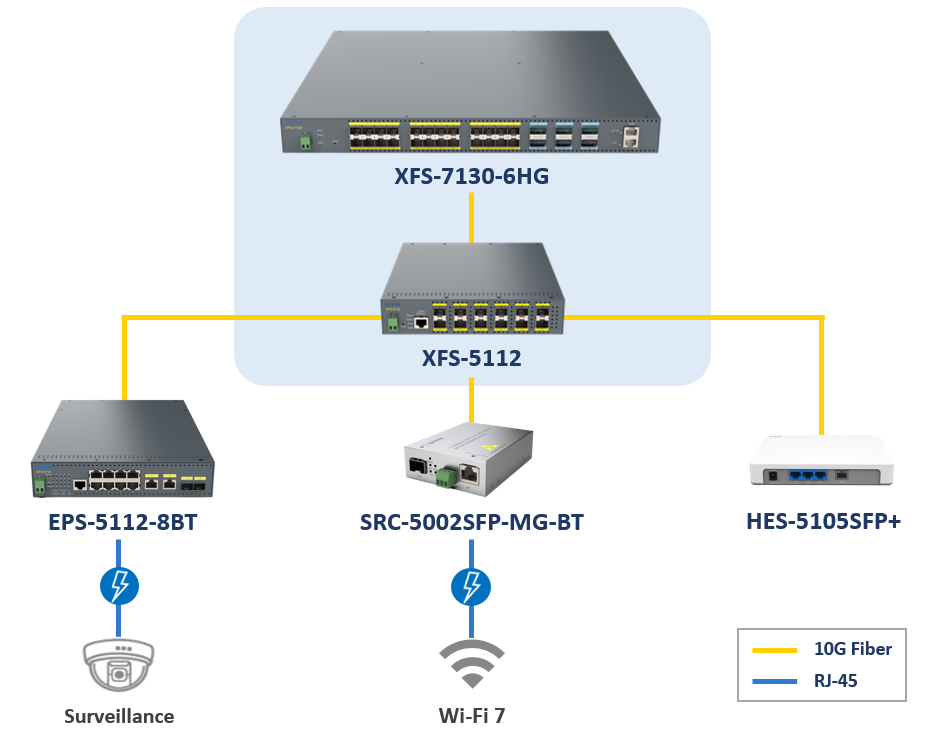

Application Diagram
Model

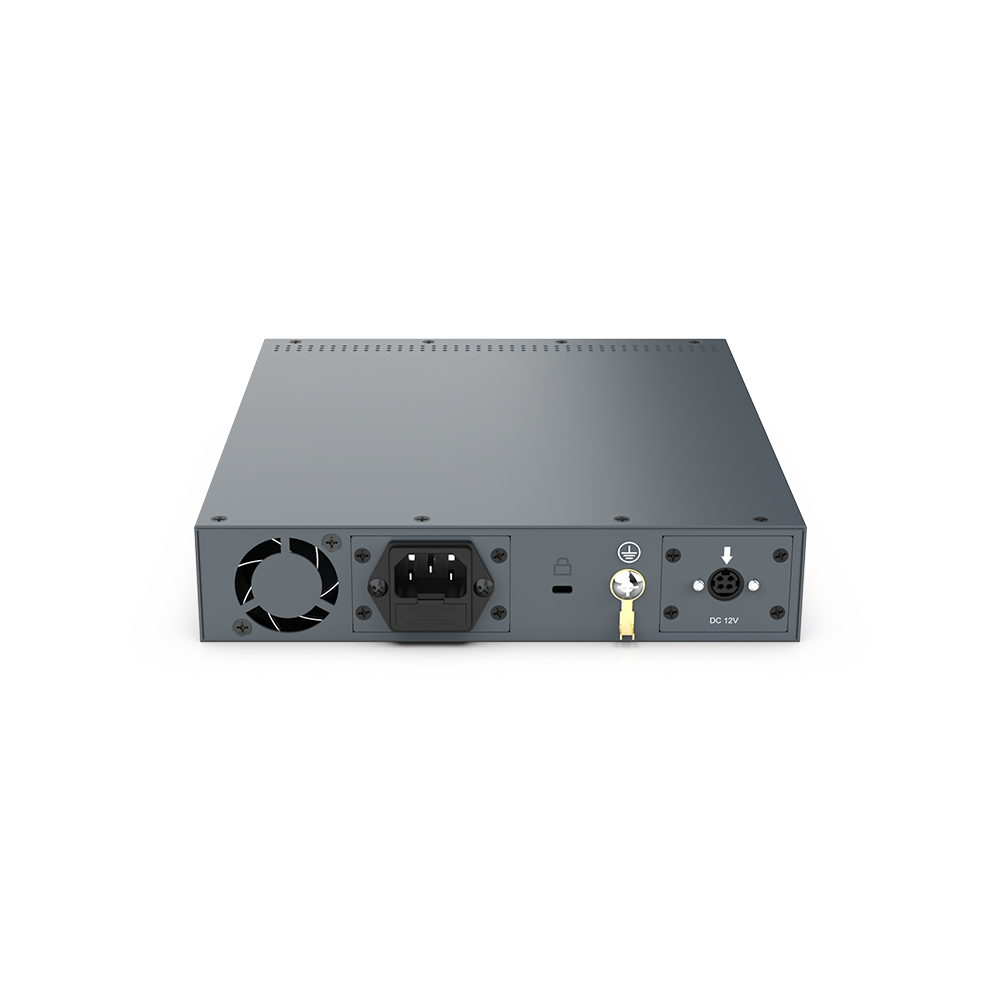

Model | Fiber Port | Support Power Source | ||
Speed (bps) | Type | Slot | ||
XFS-5112-1A | 10G/1G | SFP+ | 12 | 1 x Fixed Internal 100-240VAC |
XFS-5112-1D | 10G/1G | SFP+ | 12 | 1 x Fixed Internal 48VDC |
XFS-5112-1AE | 10G/1G | SFP+ | 12 | 1 x Fixed Internal 100-240VAC + 1 x Fixed External 12VDC (via R7B adapter) |
Download
Model | Info | Version | Download file |
XFS-5112 | Datasheet | A02 | |
XFS-5112 | User's Manual (HW) | V1.0 | |
XFS-5112 | User's Manual (NMS) | V1.0 | |
XFS-5112 | Firmware | 1.00.03 | |
XFS-5112 | MIB-file | 1.00.03 |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
