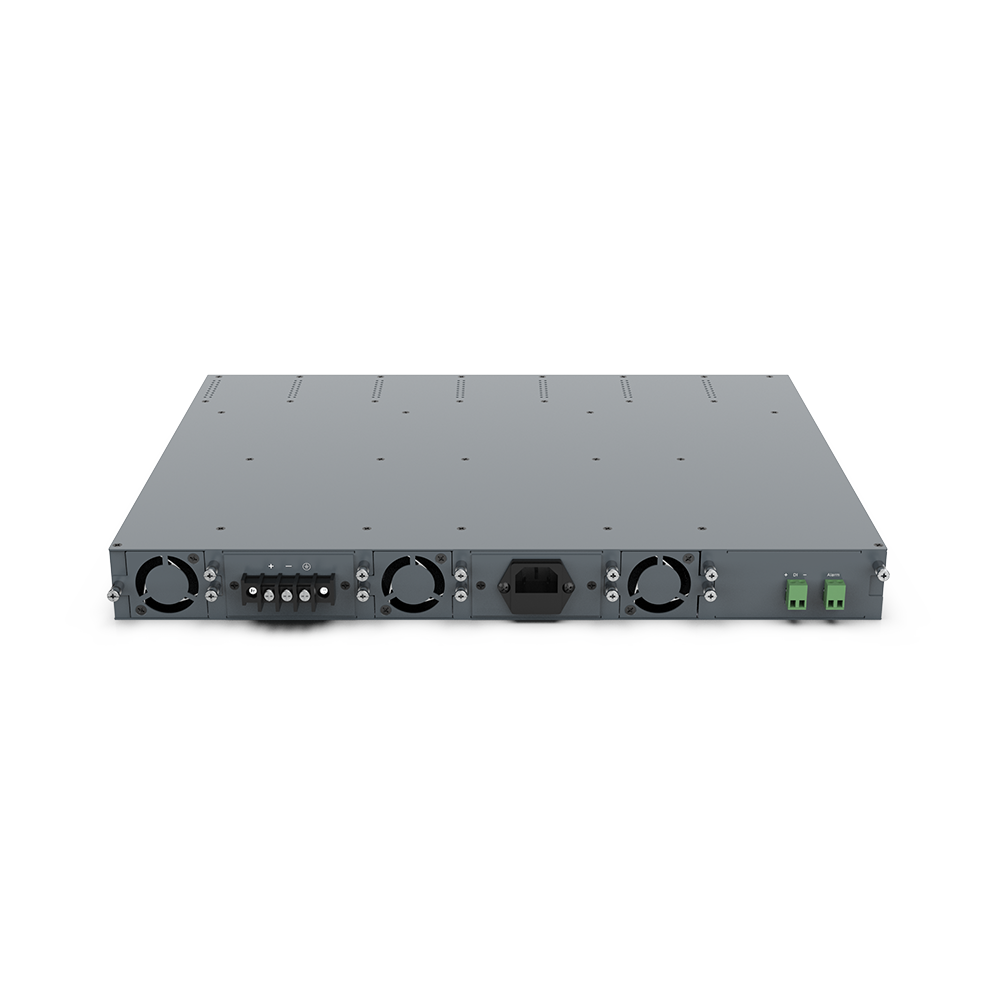

MCT-RACK-12
12 Slots Compact Media Converter Chassis for MCT Series Converter
MCT-RACK-12 provides 12 slots for mixed installation of non-managed MCT series media converters.
The installation & operation procedures of MCT-RACK-12 are simple & straight forward. It allows to collect MCT series converters together for the aim of neatly space saving solution.
Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 440 x 342 x 44 mm (W x D x H)
Weight: 5.7 Kg
Features
MCT-RACK-12 provides 12 slots for mixed installation of non-managed MCT series media converters.
The installation & operation procedures of MCT-RACK-12 are simple & straight forward. It allows to collect MCT series converters together for the aim of neatly space saving solution.
Power Redundancy
Transition to the other redundant power module if either of the power sources is down
Plug-and-Play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration
Smart Fan
Smart Fans adjust fan speed based on temperature to control power usage and reduce noise, instead of just dissipating heat (HW ver.B only)
Specification
Interface
- Media Converter Slots
12 x Hot-swappable - Power Slots
2 x Hot-swappable - Smart Fan (HW ver.B only)
3 x Hot-swappable
LED
- Power A
- Power B
- LAN
- Status
- COM
Power Requirement
- AC Input: 100~240VAC, 50/60Hz, 1.4~0.7A
- DC Input: 48VDC
- Max. Power Consumption(Full load)
– Hardware Version A: 26W (88.7 BTU/h)
– Hardware Version B: 72W (245.6 BTU/h)
Hardware
- Power Redundancy
- Plug & Play Design
- Chassis Power Module Monitor
- Temperature Sensor (HW ver.B only)
Environmental Condition
- Operation: 0˚C ~ 50˚C
- Storage: -20˚C ~ 60˚C
- Humidity: 5% ~ 90% RH, Non-condensing
Dimension & Weight
- Size: 440 x 342 x 44mm (W x D x H)
- Weight: 5.7kg (without module installed)
EMC/Safety
- CE, FCC Class A
Topology
Model
Model | Module Slot Amount | Power Source | Remark | |
Media Converter | Power Module | |||
MCT-RACK-12 | 12 | 2 | - | Chassis |
MCT-RACK-12-1A | 12 | 2 | AC Power x 1 | Chassis |
MCT-RACK-12-2A | 12 | 2 | AC Power x 2 | Chassis |
MCT-RACK-12-1D | 12 | 2 | DC Power x 1 | Chassis |
MCT-RACK-12-2D | 12 | 2 | DC Power x 2 | Chassis |
MCT-RACK-12-1AD | 12 | 2 | AC Power x 1 and | Chassis |
MCT-RACK-12-MGM-AC POWER | - | - | - | AC Power Module |
MCT-RACK-12-MGM-DC POWER | - | - | - | DC Power Module |
NOTE: The MCT-RACK-12-MGM-AC/DC POWER are both suitable for MCT-RACK-12 series.
Download
Model | Info | Version | Download file |
MCT-RACK-12 | Datasheet(HW Ver:A) | A02 | |
MCT-RACK-12 | Datasheet(HW Ver:B) | B01 | |
MCT-RACK-12 | Quick Installation Guide (HW Ver:A) | V0.90 | |
MCT-RACK-12 | User's Manual (HW Ver:B) | V2.0 |
