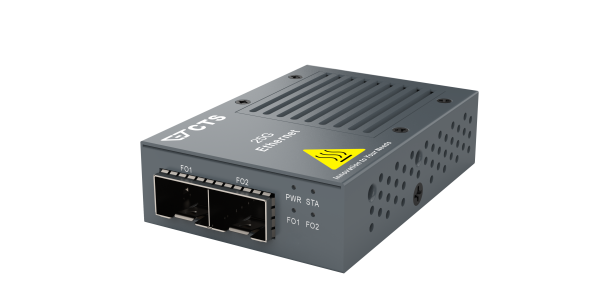

MCT-6002FSMSFP28
25G SFP28 to SFP28 Compact Media Converter
The CTS MCT-6002FSMSFP28 is a compact 2-port SFP28 media converter designed for high-speed fiber connectivity in bandwidth-intensive network environments. Featuring ultra-low latency and transparent data transmission, it provides reliable performance for data centers, high-frequency trading networks, and other latency-sensitive applications.
Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90% RH, Non-condensing
Dimension Size: 51 x 74 x 20 mm (W x D x H)
Weight: 77 g
Features
The MCT-6002FSMSFP28 supports selectable 25G/10G operation and 3R (Re-amplifying, Re-shaping, Re-timing) signal regeneration to ensure reliable, high-quality fiber transmission. Its hardware-based plug-and-play design simplifies installation without requiring IP configuration or drivers, while the signal loss alarm enables quick detection of link failures.
3R
Featuring 3R technology (Re-amplification, Re-shaping, and Re-timing) to improve signal integrity and ensure reliable data transmission over fiber optic networks.
25G
Delivering 25G high-speed data transmission to meet the growing demand for bandwidth, enabling faster and more efficient network connectivity for modern enterprise and data center applications.
10G
Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike.
Plug-and-play
No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration.
Signal Loss Alarm
Provide optical signal loss management for media converters.

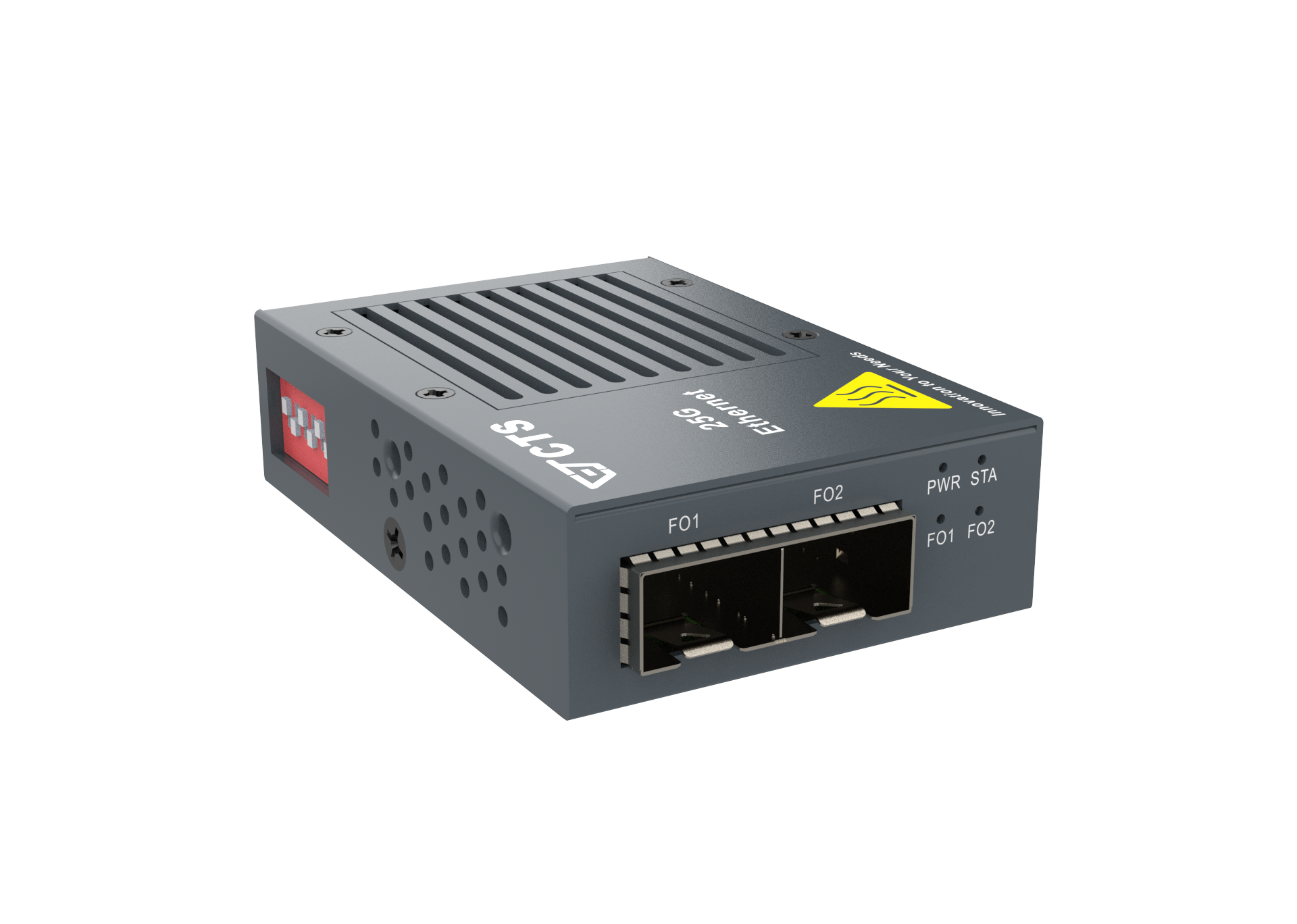

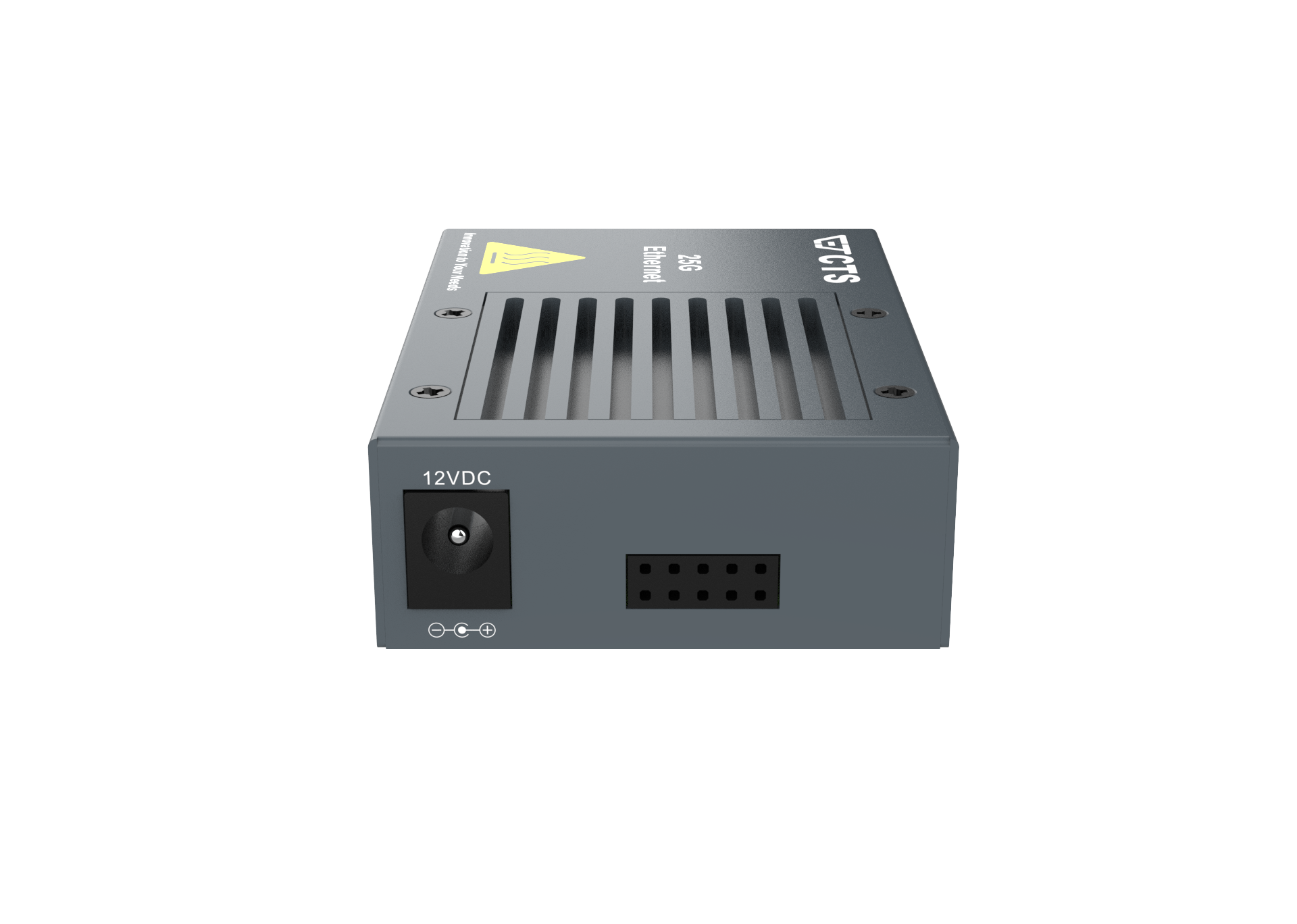

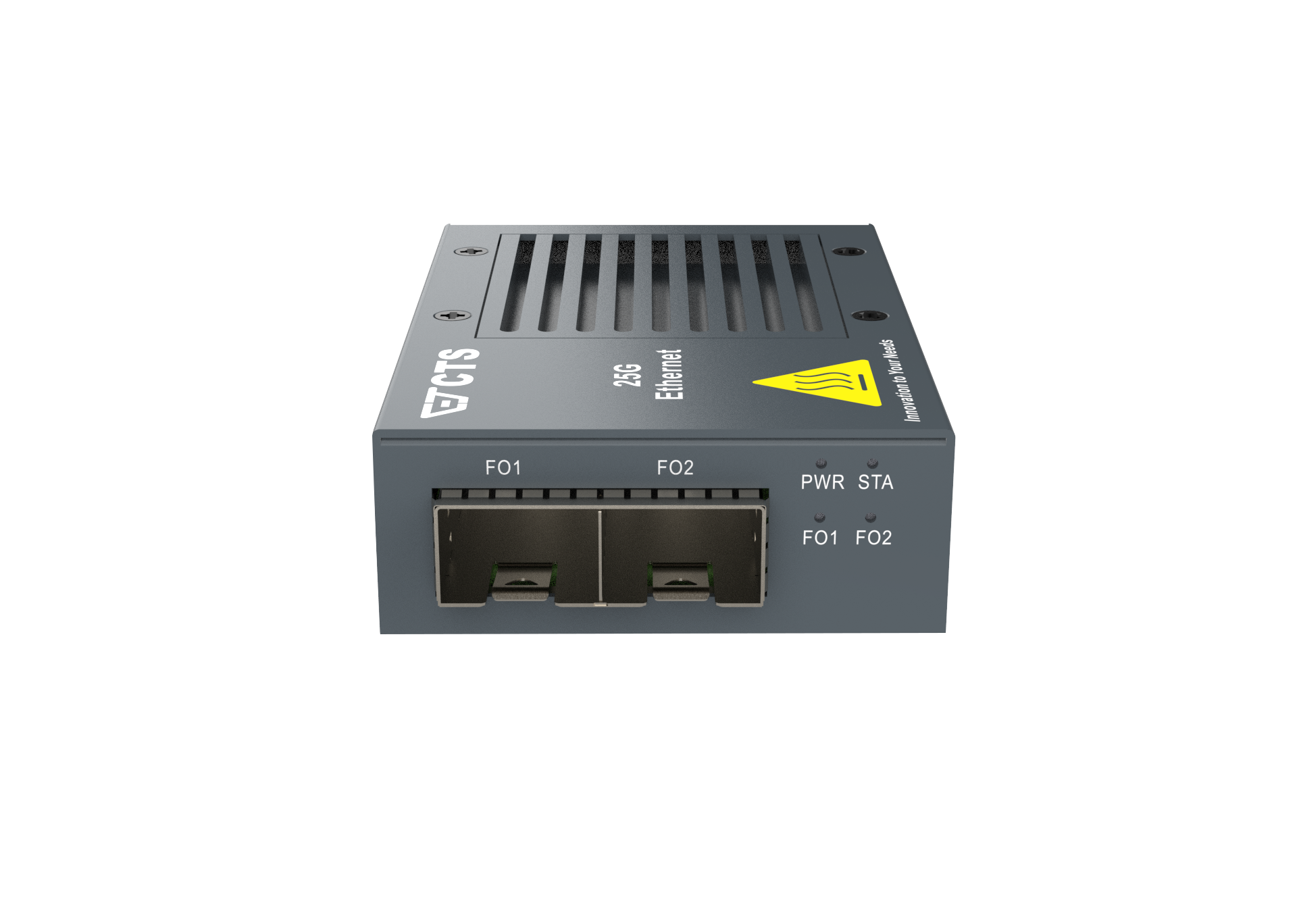

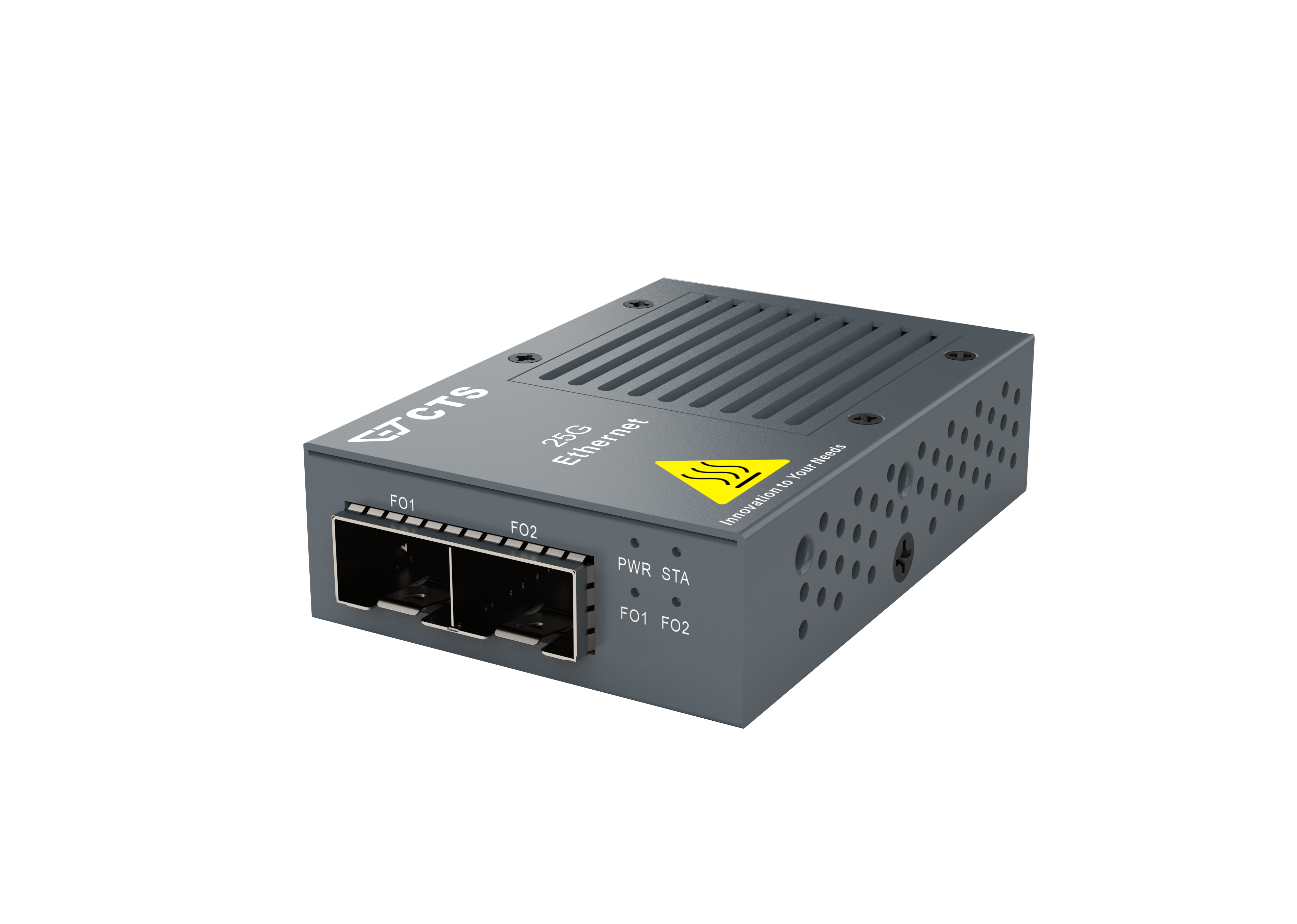

Hardware Overview
Specification
Interface
Fiber Port
- 2 x 25G/10G SFP28
LED
- Power, Status, Link/Speed of FO1/FO2
Power Requirement
- Power Input (Main Body): 12 VDC
- Power Adapter (Including in package)
Input: 100-240 VAC, 50/60 Hz
Output: 12 VDC - Power Consumption (full-load)
Device: 5.1W (17.4 BTU/h)
With Adapter: 6.4W (21.8 BTU/h)
Hardware
- 3R signal regeneration (Re-amplify, Re-shape, Re-time)
- Bit-level transparent forwarding
Environmental Condition
- Operation: 0˚C~50˚C
- Storage: -20˚C~60˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
CE/FCC Class A
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
VCCI/UKCA/RCM
RoHS 2.0
Dimension & Weight
- Size: 51 x 74 x 20mm (W x D x H)
- Weight: 77 g
- Housing: Aluminum
Topology

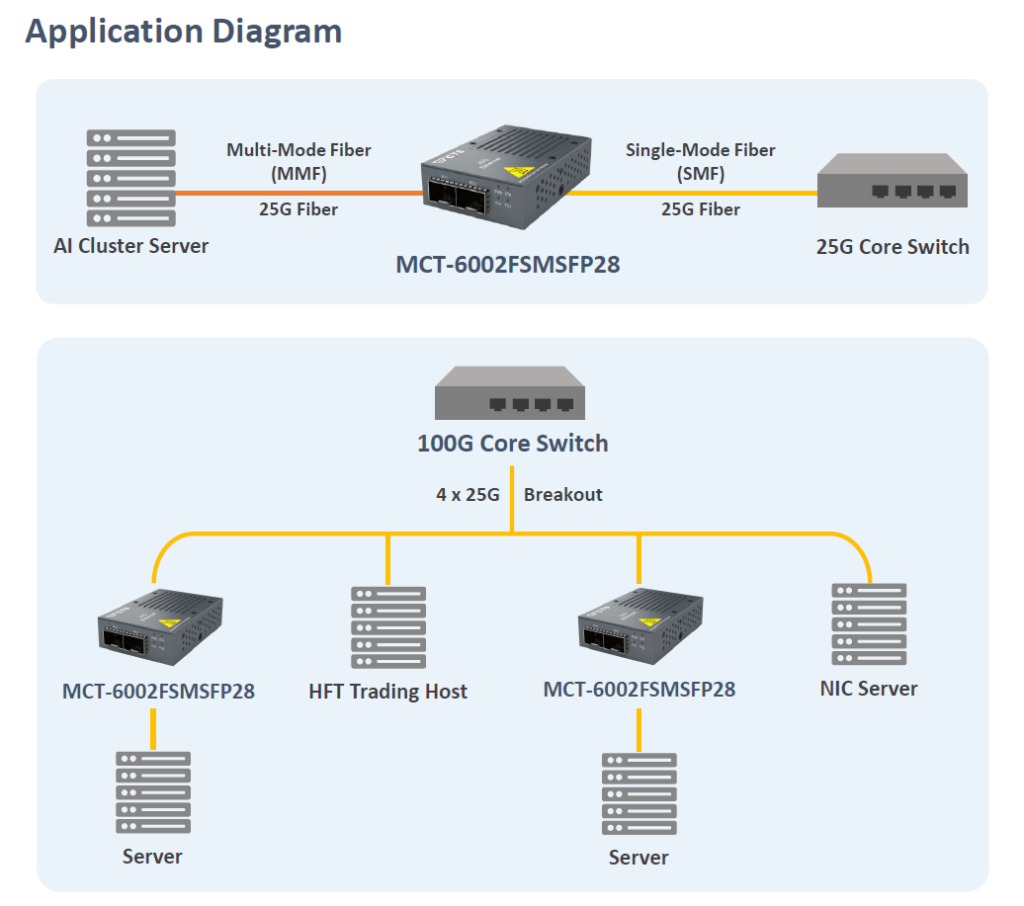

Application Diagram
Model
Model | Fiber Port | TP Port | |||
Speed | Type | Slot | Speed | Port | |
MCT-6002FSMSFP28 | 25G/10G | SFP28 | 2 | - | - |
Download
Model | Info | Version | Download file |
MCT-6002FSMSFP28 | Datasheet | A01 | |
MCT-6002FSMSFP28 | User's Manual (HW) | V1.0 |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
