MCT-5002-FSMSFP+

MCT-5002FSMSFP+

10G Base-R SFP+ to SFP+ Compact Media Converter

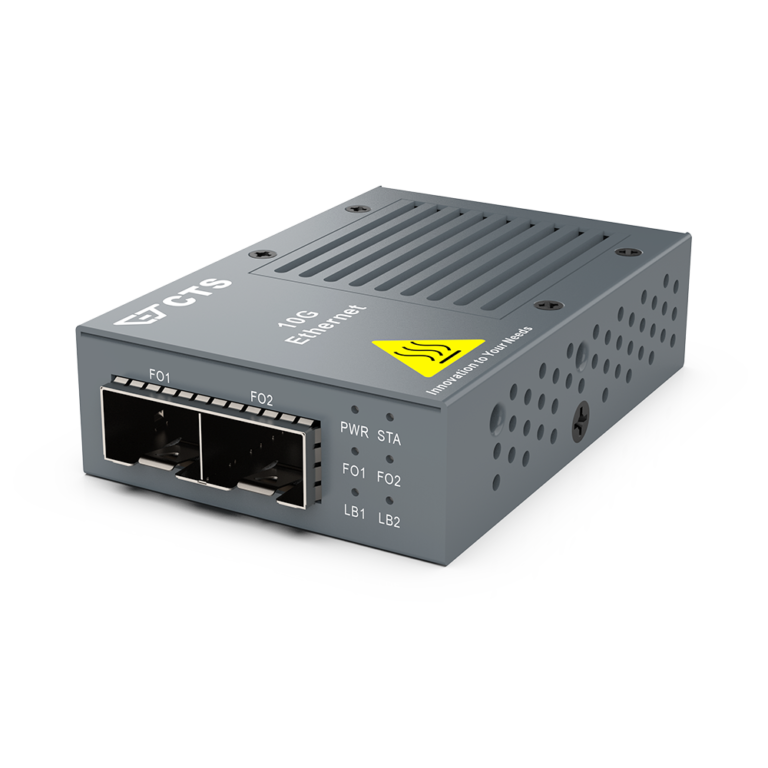

MCT-5002FSMSFP+ media converter, featuring two pluggable transceiver SFP+ ports, extends transmission distance with 3Rs (Re-amplifying, Re-shaping, Re-timing) optical signal regeneration for Data Center application or ISP Mobile DU and Enterprise broadband service applications.

Environmental Condition Operation: 0˚C ~ 50˚C
Storage: -20˚C ~ 60˚C
Humidity: 5% ~ 90%, Non-condensing

Dimension Size: 51 x 74 x 20 mm (W x D x H)
Weight: 76 g

Features

MCT-5002FSMSFP+ media converter is fully compliant with IEEE 802.3z and 802.3ae standards.

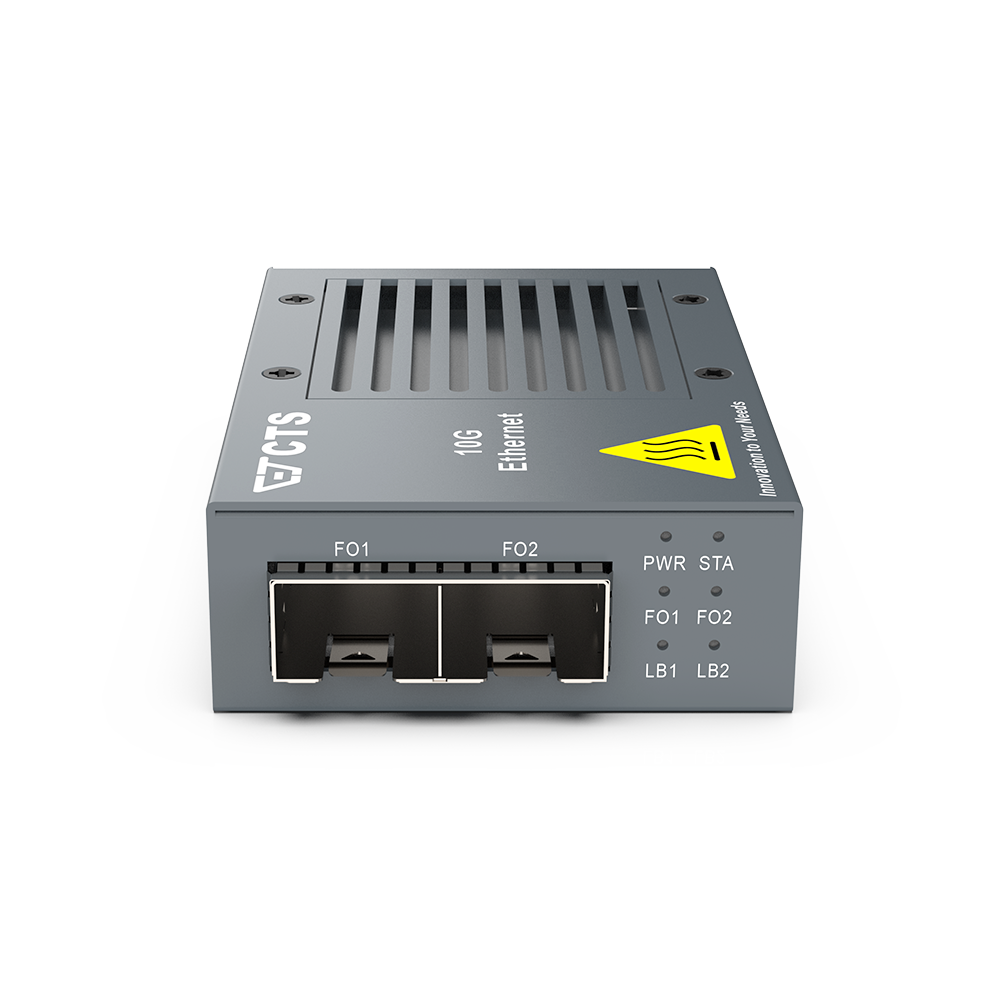

The operation status can be monitored through a set of diagnostic LED indicators on the front panel. In addition, MCT-5002FSMSFP+ can be monitored and slightly managed when it is inserted into a slot of the MCT-RACK-MGM chassis series.

10G

Equipped with 10G data transmission capacity designed to fulfill the ever-increasing demand for higher bandwidth which is essential for traditional Internet service and premium service alike

Signal Loss Alarm

Provide optical signal loss management for media converters

Plug-and-play

No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration

Specification

Interface

  • F/O Port (Type)
    2 x 1G/10Gbps (SFP+)

LED

  • Power
  • FO 1
  • FO 2
  • Status
  • LB 1
  • LB 2

Power Requirement

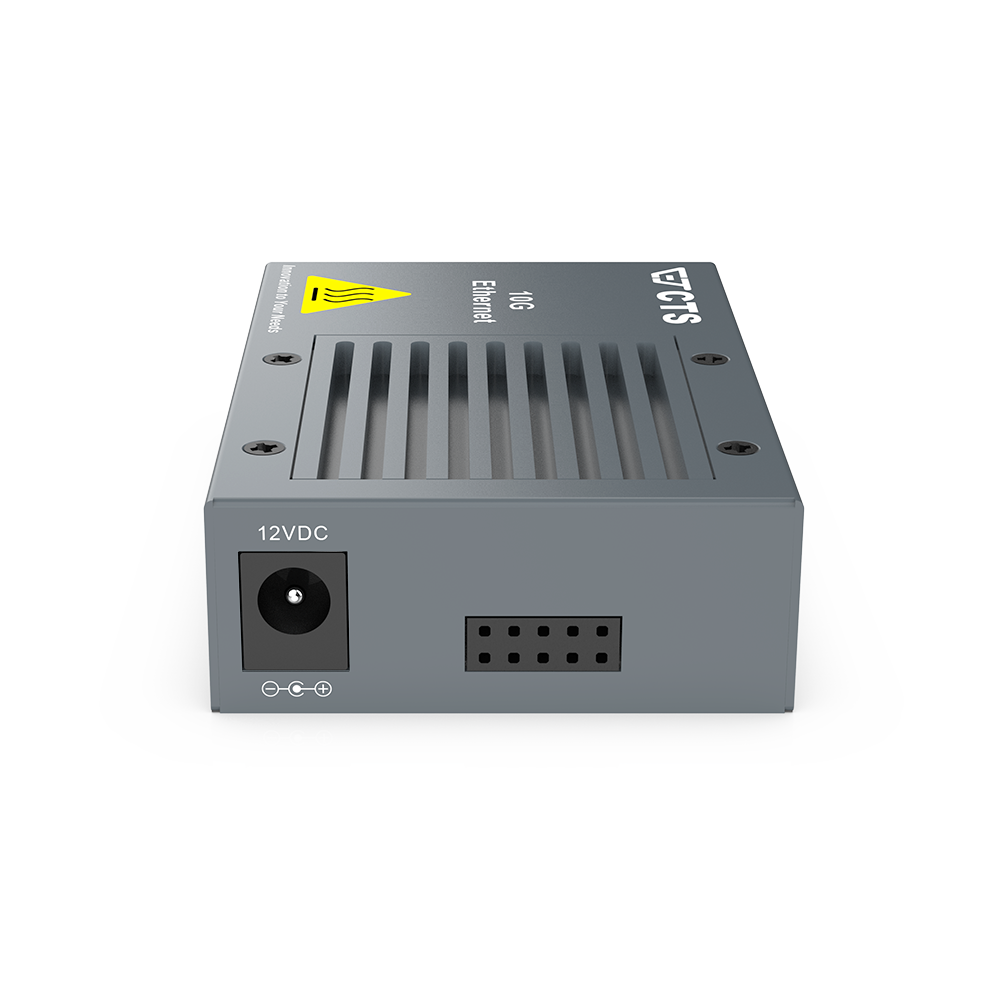

  • AC to DC Power Adaptor
    – Input: 100 ~ 240VAC, 50/60Hz
    – Output: 12VDC
  • Power Consumption: 6.5W

Hardware

  • 3Rs (Re-amplifying, Re-shaping, Re-timing)
    optical signal regeneration
  • Traffic transparent mode
  • Jumbo frame : 9K Bytes
  • DIP Switch :
    – Signal Loss Alarm
    – Loopback
    – Speed
    – Software Control

Environmental Condition

  • Operation: 0˚C ~ 50˚C
  • Storage: -20˚C ~ 60˚C
  • Humidity: 5% ~ 90%, Non-condensing

Dimension & Weight

  • Size: 51 x 74 x 20 mm (W x D x H)
  • Weight: 76 g

Model

Model

Fiber Port

TP Port

Management

Speed
(Gbps)

Type

Connector

Distance

Port

Speed

Port

MCT-5002FSMSFP+

10

SFP+

-

-

2

-

-

-

Download

Model

Info

Version

Download file

MCT-5002FSMSFP+

Datasheet

A01

MCT-5002FSMSFP+

User's Guide

V1.0

MCT-5002FSMSFP+

Signal Loss Alarm_Application Note

V1.0
