10-Port Managed Industrial PoE+ Switch with 2-Port Combo

IPS-3110-PB Industrial PoE Switch is the Fast & Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X Industrial PoE Switch.

The IPS-3110-PB switches the traditional twist-pair RJ-45 cable into various fiber optics media. It offers easy management of uplink port (10/100/1000Mbps RJ-45 and 100/1000 SFP slot). The fiber optical port of IPS-3110-PB can support various connection distances via multi-mode fiber, single-mode fiber or Bi-directional single-mode fiber for the deployment to the control room, warehouse or factory.

Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 90%, Non-condensing

Dimension Size: 88 x 110 x 135 mm (W x D x H)
Weight: 1.12 Kg
Housing: Aluminum, IP30

Features

The IPS-3110-PB Industrial PoE Switch provides perfect solution for delivering power over Ethernet for IP cameras, Wi-Fi access points or IP phones at an extended operating temperature (-40°C ~ 75°C ) to withstand against harsh environment for better performance. The IPS-3110-PB is fully compliant with IEEE standards such as IEEE 802.3/802.3u/802.3ab/802.3z to ensure interoperability between network devices.

The IPS-3110-PB Industrial PoE Switch provides easy management ways via telnet CLI and SNMP. Combined with rich L2+ features and reliable management functions, the IPS-3110-PB will significantly help save OPEX (operational cost) for network administrators.

Power Over Ethernet

Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations

PoE Scheduling

Arrange the PoE schedule and specify the timing of PoE power-on and -off for each port to effectively manage the total power budget

Power Redundancy

Transition to the other redundant power module if either of the power sources is down

Dual Rate Fiber

Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product

Lightning Protection

Protect ports from power surges due to lightning or improper electrical wiring

DHCP Auto Provisioning

Automatically upgrades the firmware and configuration from DHCP server to save maintenance cost

Loop Detection

Automatically prevent the switching loops that cause network congestion and failures, and keep your service steadily running as planned

USB2.0

External USB ports ensure a future-proof feature, where new technologies can be added down the road through digital data transfer

Dual Image

Safeguard against permanent system crash from firmware upgrade failures

Specification

Interface

RJ-45 Port

  • 8 x 10/100/1000Base-T RJ-45 with IEEE 802.3af/at PoE injector

Combo Port

  • 2 x 100/1000Base-X SFP, or
    2 x 10/100/1000Base-T RJ-45

Console Port

  • 1 x RS-232 to RJ-45 Serial Port

USB Port

  • 1 x USB 2.0 (Host Type-A)

Terminal Block

  • 1 x Digital Output (Alarm Relay),
    Relay output with current
    carrying capacity of 1 A @ 30 VDC

LED

  • Link/Act/Speed, P1, P2, ALM,
  • RM, R, Status, PoE

Power Over Ethernet

  • Total PoE budget
    – 240W @ 50-54 VDC input
    – 120W @ 24-50 VDC input
  • Max. Per Port output: 30W

Power Requirement

  • Dual Power Input: 24~54 VDC
  • Power Consumption
    – Device: full-load < 255W (870 BTU/h)

Standards & Certifications

CE/FCC Class A

  • Safety: EN/IEC 62368-1
  • EMC: EN 55032 / EN 55035
  • ESD
    – Air Discharge: +/-8kV

    – Contact Discharge: +/-4kV

  • EFT
    – DC Input: +/-0.5kV
    – Signal (RJ-45): +/-0.5kV
  • Surge Protection
    – DC Input: +/-0.5kV
    – Signal (RJ-45): +/-1kV, PoE: +/-0.5kV

UKCA
ITU-T K.21
Freefall/Shock/Vibration

  • IEC 60068-2-32
  • IEC 60068-2-27
  • IEC 60068-2-6

RoHS 2.0

Hardware

  • MAC Address Table: 16K
  • Non-Blocking Switching Fabric: 20Gbps
  • Throughput @ 64Bytes: 14.88Mpps
  • Packet Buffer: 2Mbit
  • Jumbo Frame: 9K Bytes
  • Store and Forward Switching Mechanism
  • Auto-Cross Over for MDI/MDIX in TP Ports
  • Auto-Negotiation in TP Ports
  • Full/Half Duplex Mode Operation

Dimension & Weight

  • Size: 88 x 110 x 135mm (W x D x H)
  • Weight: 1.12 Kg
  • Housing: Aluminum, IP30

Environment Condition

  • Operation: -40˚C~75˚C
  • Storage Temperature: -40˚C~85˚C
  • Humidity: 5%~90% RH, Non-Condensing

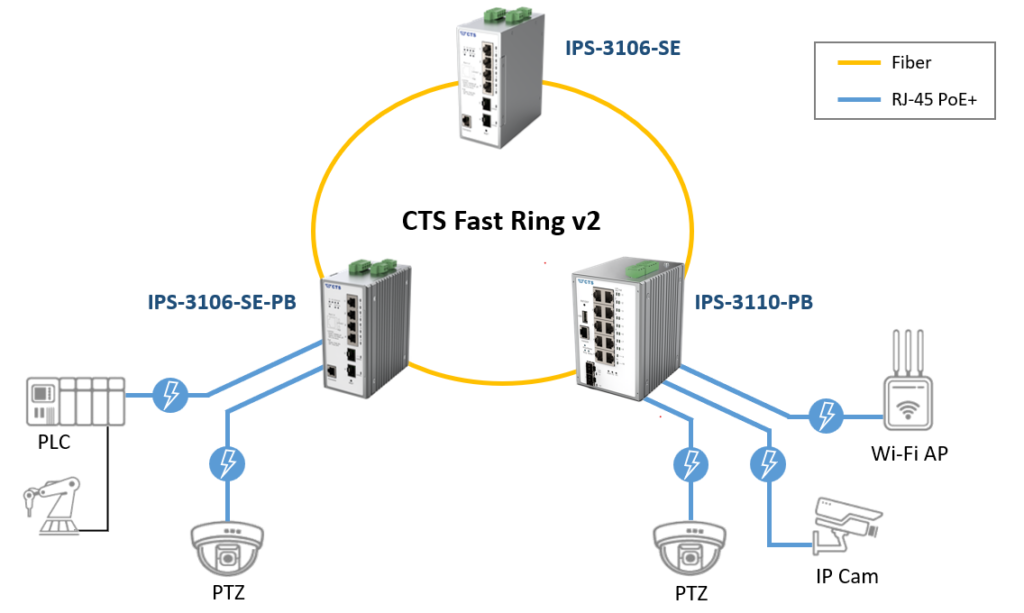

Topology

Model

Model

TP Port

SFP/TP Combo Port*

Support

Power Source

Speed

Ports

Speed

Type

Ports

IPS-3110-PB

10/100/1000Mbps

8 with 802.3af/at Injector

100/1000Mbps

SFP

2

2 x 24~54V DC with

removable terminal block

10/100/1000Mbps

TP

2

*The combo port supports either TP (RJ-45) or SFP connectivity, but cannot operate both simultaneously.

Download

Model

Info

Version

Download file

IPS-3110-PB

Datasheet

A02

IPS-3110-PB

User's Manual (HW)

V1.0

IPS-3110-PB

User's Manual (NMS)

V1.0

IPS-3110-PB

Firmware

1.00.0T

IPS-3110-PB

MIB-file

1.00.0T

*To update the firmware, unzip the .zip file and upload the *.bin file.

*To use *.mib file for SNMP service, unzip the .zip file.
