IPS-3005

IPS-3005

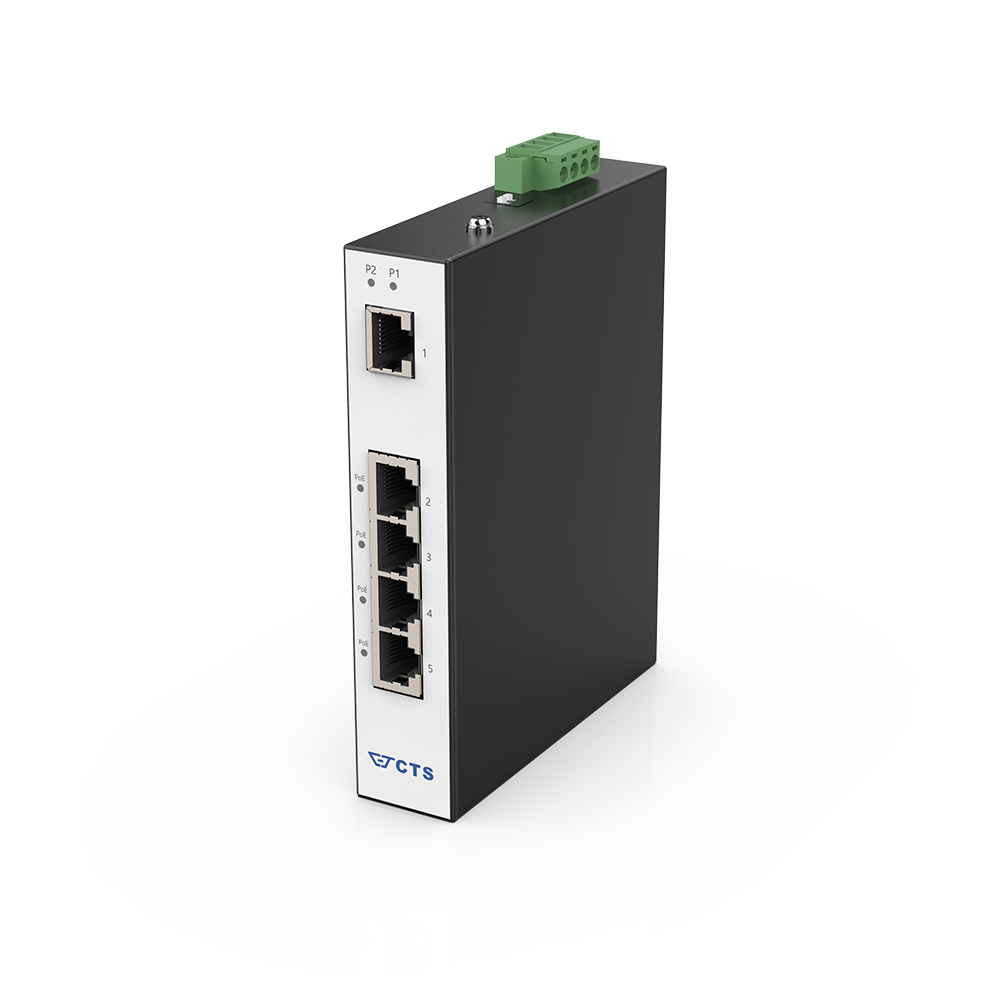

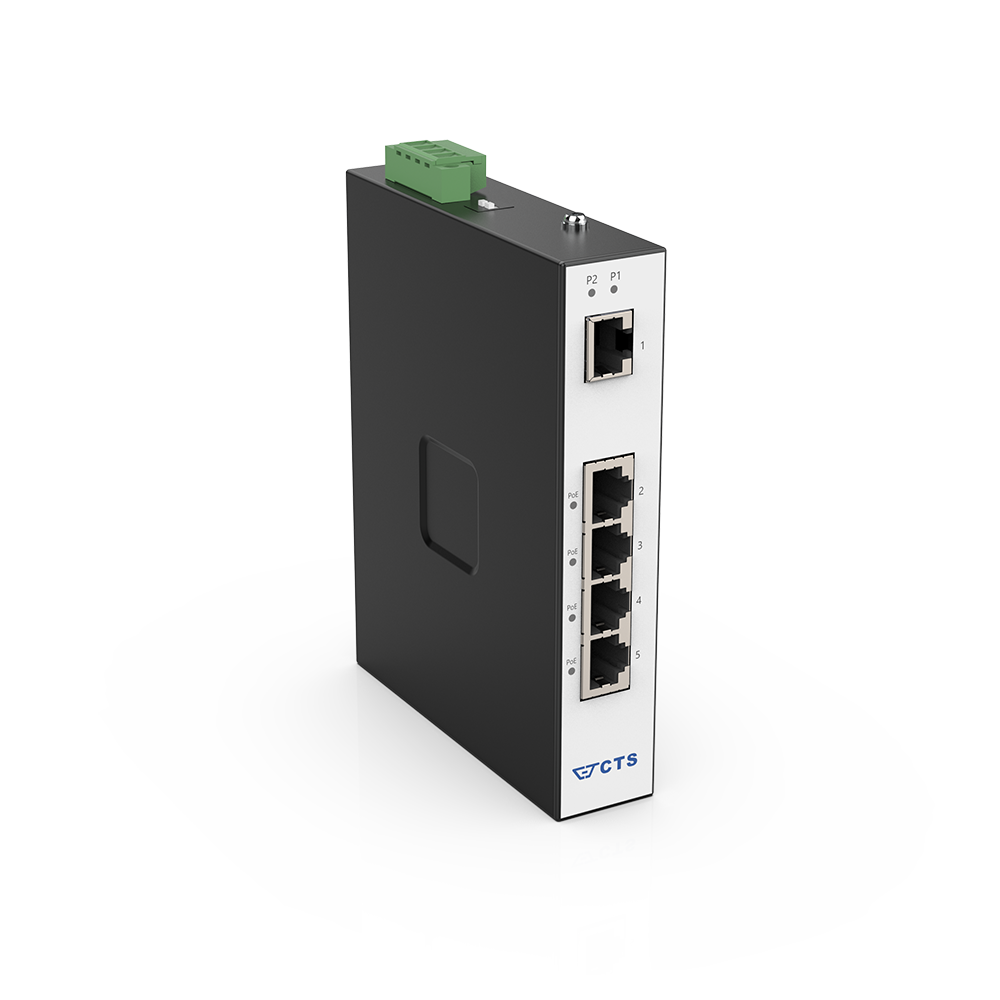

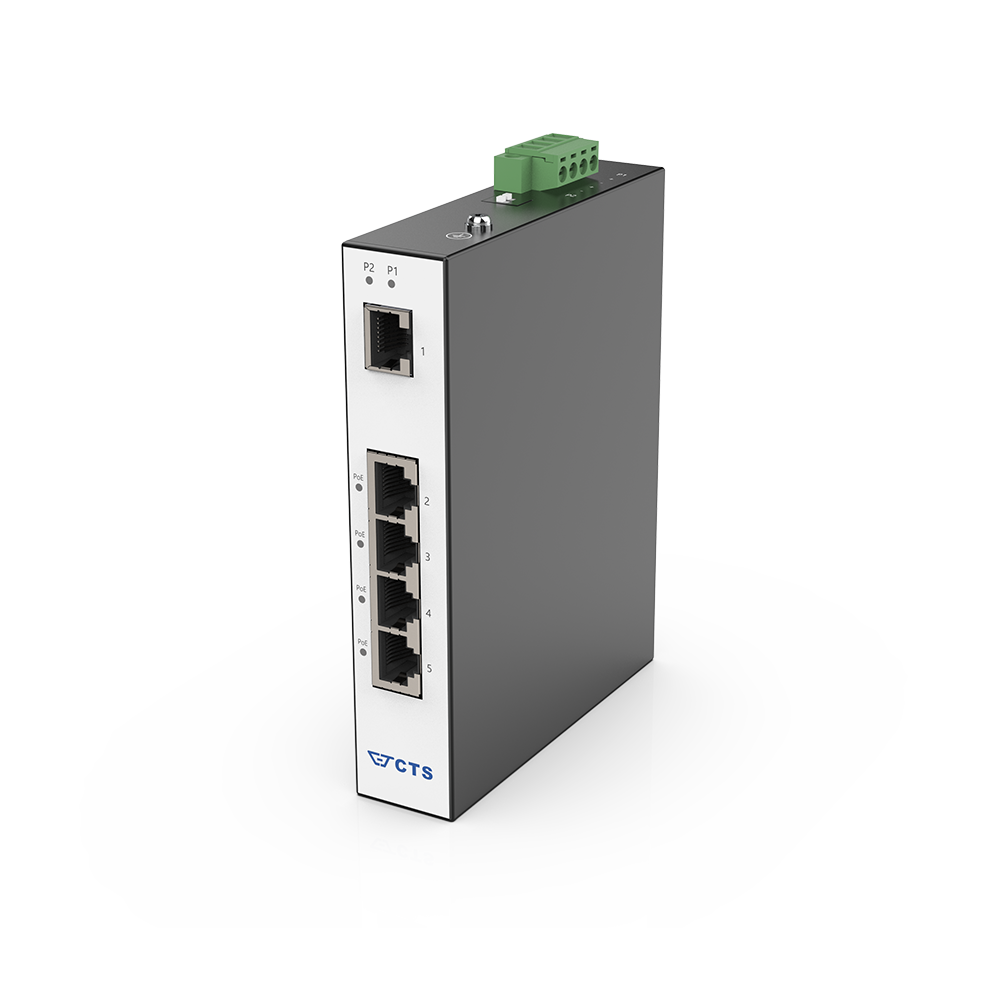

5-Port Industrial PoE+ Switch with 1-Port Uplink

CTS IPS-3005 is a 5-port, unmanaged Gigabit Ethernet switch compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivers up to 30 watts power per port along with data on standard Ethernet cabling.The switch can be used to power IEEE 802.3af/at standard devices (PD), which eliminates the need for additional wiring and ease the deployment for applications to reach power source.

Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 95%, Non-condensing

Dimension Size: 29 x 107 x 139 mm (W x D x H)
Weight: 0.375 Kg
Housing: Aluminum, IP30



Features

– Provide 5 Gigabit RJ-45 Copper Ports
– 4-Port PoE Compatible with IEEE 802.3af/at PoE PSE
– Support 9K Jumbo Frames
– Support IEEE 802.1p QoS TOS/DSCP, 4 Priority Queues
– Broadcast Storm Control
– Supprt IEEE 802.3x Flow Control
– 2KV Surge Protection on RJ-45 Copper Ports
– Dual Power Input (48~58VDC)
– Reverse Polarity Protection
– 2KV Surge Immunity on RJ-45 Copper Ports
– Operating Temperature -40ºC~75ºC

Power Over Ethernet

Data flows and the electrical current are carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations

Power Redundancy

Transition to the other redundant power module if either of the power sources is down

Plug-and-play

No more complex, error-prone configuration prior to deployments, and maximum device compatibility in system integration

Specification

Interface

  • LAN Port (Type):
    4 x 10/100/1000Mbps PoE+
  • Uplink Port (Type):
    1 x 10/100/1000 Mbps RJ-45

LED

  • P1, P2
  • ALM
  • Link & Speed
  • PoE

Power Requirement

  • Redundant power input, Reverse
    power protection
  • Input voltage range: 12-58 VDC, 54-58V
    for PoE+, 48-58V for PoE
  • Total Power consumption: Maximum
    123W

Hardware

  • Store and forward, L2 wire-speed/ non-blocking switching engine
  • MAC addresses: 2K
  • Jumbo frames: 9K Bytes
  • MDI/MDIX Auto-crossover: Support
    straight or cross wired cables
  • Auto Negotiation in TP ports

Standards

  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3z 1000Base-X
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at Power over Ethernet Enhancements

Environmental Condition

  • Operation: -40˚C ~ 75˚C
  • Storage: -40˚C ~ 85˚C
  • Humidity: 5% ~ 95%, Non-condensing

EMC/Safety

  • Vibration, shock & freefall:
    IEC60068-2-6, -27, -32
  • Certification compliance: CE/FCC; EN-50121-4
  • Electrical safety: CE
  • EMC: FCC Part 15 Subpart B Class A,
    CISPR 22 (EN55022) Class A
    IEC61000-4-2, -3, -4, -5, -6 (Level 3)

Dimension & Weight

  • Ingress protection: IP30
  • Installation option: DIN-Rail mounting, Wall mounting
  • Dimension: 29 x 107 x 139 mm (W x D x H)
  • Weight: 0.375 Kg

Model

Model

WAN Port

LAN Port

Power Source

Speed
(Mbps)

Type

Port

Speed
(Mbps)

PoE++

Port

PoE+

Port

IPS-3005

10/100/1000

RJ-45

1

10/100/1000

-

4

Terminal Block with
2 Power Input

Download

Model

Info

Version

Download file

IPS-3005

Datasheet

A01

IPS-3005

User's Manual (HW)

V1.0
