IES-3110SFP
10-Port Managed Industrial Switch with 2-Port Combo
Connection Technology Systems (CTS) IES-3110SFP Industrial Switch is a Fast & Gigabit Ethernet 10/100/1000Base-T to 100/1000Base-X Industrial Switch.
It switches the traditionally twisted-pair RJ-45 cable into various fiber optics media. IES-3110SFP offers easy management of uplink port (10/100/1000Mbps RJ-45 + 100/1000 SFP slot). The fiber optical port of IES-3110SFP can support various connection distances via multi-mode fiber, single-mode fiber or Bi-directional single-mode fiber for the deployment to the control room, warehouse or factory.
Environmental Condition Operation: -40˚C ~ 75˚C
Storage: -40˚C ~ 85˚C
Humidity: 5% ~ 90%, Non-condensing
Dimension Size: 73 x 110 x 135 mm (W x D x H)
Weight: 0.92 Kg
Housing: Aluminum, IP30
Features
The IES-3110SFP Industrial Switch provides an extended operating temperature (-40°C ~ 75°C) to withstand against harsh environment for better performance. IES-3110SFP is fully compliant with IEEE standards such as IEEE 802.3/802.3u/802.3ab/802.3az to ensure interoperability between network devices.
The IES-3110SFP Industrial Switch provides easy management ways via telnet CLI and SNMP. To fulfill the requirement of mass deployment, the device also supports DHCP autoprovision mechanism to allow the network administrator to manage the device configuration automatically and dynamically.
Power Redundancy
Transition to the other redundant power module if either of the power sources is down
Dual Rate Fiber
Automatically sense and adjust the fiber speed when changes are made in the network environment, and so facilitate a longer lifespan of the product
Loop Detection
Automatically prevent the switching loops that cause network congestion and failures, and keep your service steadily running as planned
DHCP Auto Provisioning
Automatically upgrades the firmware and configuration from DHCP server to save maintenance cost
Dual Image
Safeguard against permanent system crash from firmware upgrade failures
USB2.0
External USB ports ensure a future-proof feature, where new technologies can be added down the road through digital data transfer
Lightning Protection
Protect ports from power surges due to lightning or improper electrical wiring
Specification
Interface
RJ-45 Port
- 8 x 10/100/1000Base-T RJ-45
Combo Port
- 2 x 100/1000Base-X SFP, or
2 x 10/100/1000Base-T RJ-45
USB Port
- 1 x USB 2.0 (Host Type-A)
Terminal Block
- 1 x Digital Output (Alarm Relay),
Relay output with current
carrying capacity of 1 A @ 30 VDC
LED
- Link/Act/Speed, P1, P2, ALM,
- RM, R, Status
Power Requirement
- Dual Power Input: 12~54 VDC
- Power Consumption
– Device: full-load < 15W (51.1 BTU/h)
Hardware
- MAC Address Table: 16K
- Non-Blocking Switching Fabric: 20Gbps
- Throughput @ 64Bytes: 14.88Mpps
- Packet Buffer: 2Mbit
- Jumbo Frame: 9K Bytes
- Store and Forward Switching Mechanism
- Auto-Cross Over for MDI/MDIX in TP Ports
- Auto-Negotiation in TP Ports
- Full/Half Duplex Mode Operation
Environment Condition
- Operation: -40˚C~75˚C
- Storage Temperature: -40˚C~85˚C
- Humidity: 5%~90% RH, Non-Condensing
Standards & Certifications
- Safety: EN/IEC 62368-1
- EMC: EN 55032 / EN 55035
- ESD
– Air Discharge: +/-8kV– Contact Discharge: +/-4kV
- EFT
– DC Input: +/-0.5kV
– Signal (RJ-45): +/-0.5kV - Surge Protection
– DC Input: +/-0.5kV– Signal (RJ-45): +/- 1kV
UKCA
ITU-T K.21
Freefall/Shock/Vibration
- IEC 60068-2-32
- IEC 60068-2-27
- IEC 60068-2-6
RoHS 2.0
Dimension & Weight
- Size: 73 x 110 x 135mm (W x D x H)
- Weight: 0.92 Kg
- Housing: Aluminum, IP30

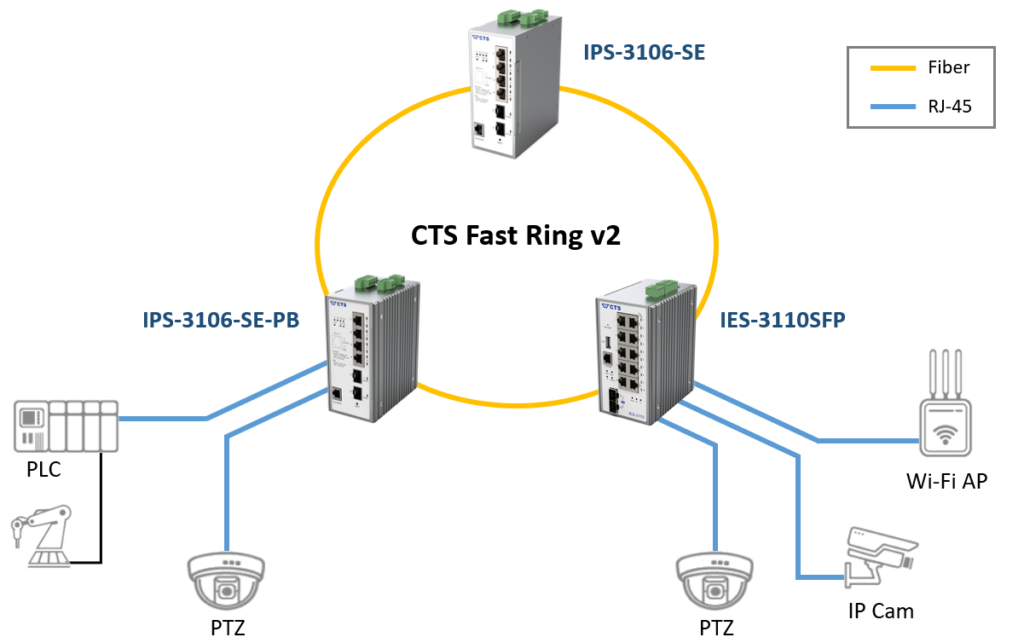

Topology
Model
Model | TP Port | SFP/TP Combo Port* | Support Power Source | |||
Speed | Ports | Speed | Type | Ports | ||
IES-3110SFP | 10/100/1000Mbps | 8 | 100/1000Mbps | SFP | 2 | 2 x 12~54V DC with removable terminal block |
10/100/1000Mbps | TP | 2 | ||||
*The combo port supports either TP (RJ-45) or SFP connectivity, but cannot operate both simultaneously.
Download
Model | Info | Version | Download file |
IES-3110 | Datasheet | A04 | |
IES-3110 | User's Manual (HW) | V0.9 | |
IES-3110 | User's Manual (NMS) | V1.0 | |
IES-3110 | Firmware | 1.00.0T | |
IES-3110 | MIB-file | 1.00.0T |
*To update the firmware, unzip the .zip file and upload the *.bin file.
*To use *.mib file for SNMP service, unzip the .zip file.
